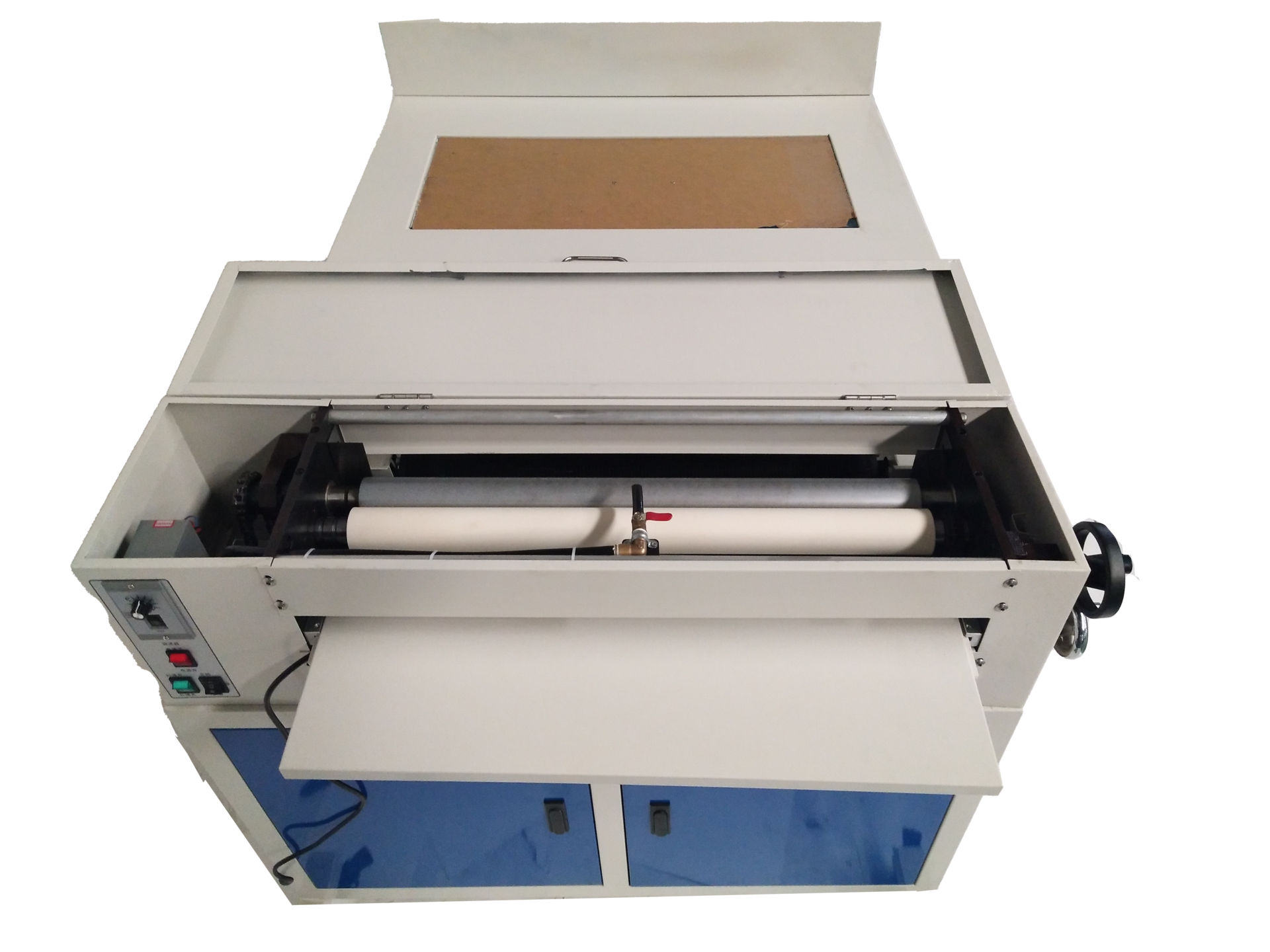

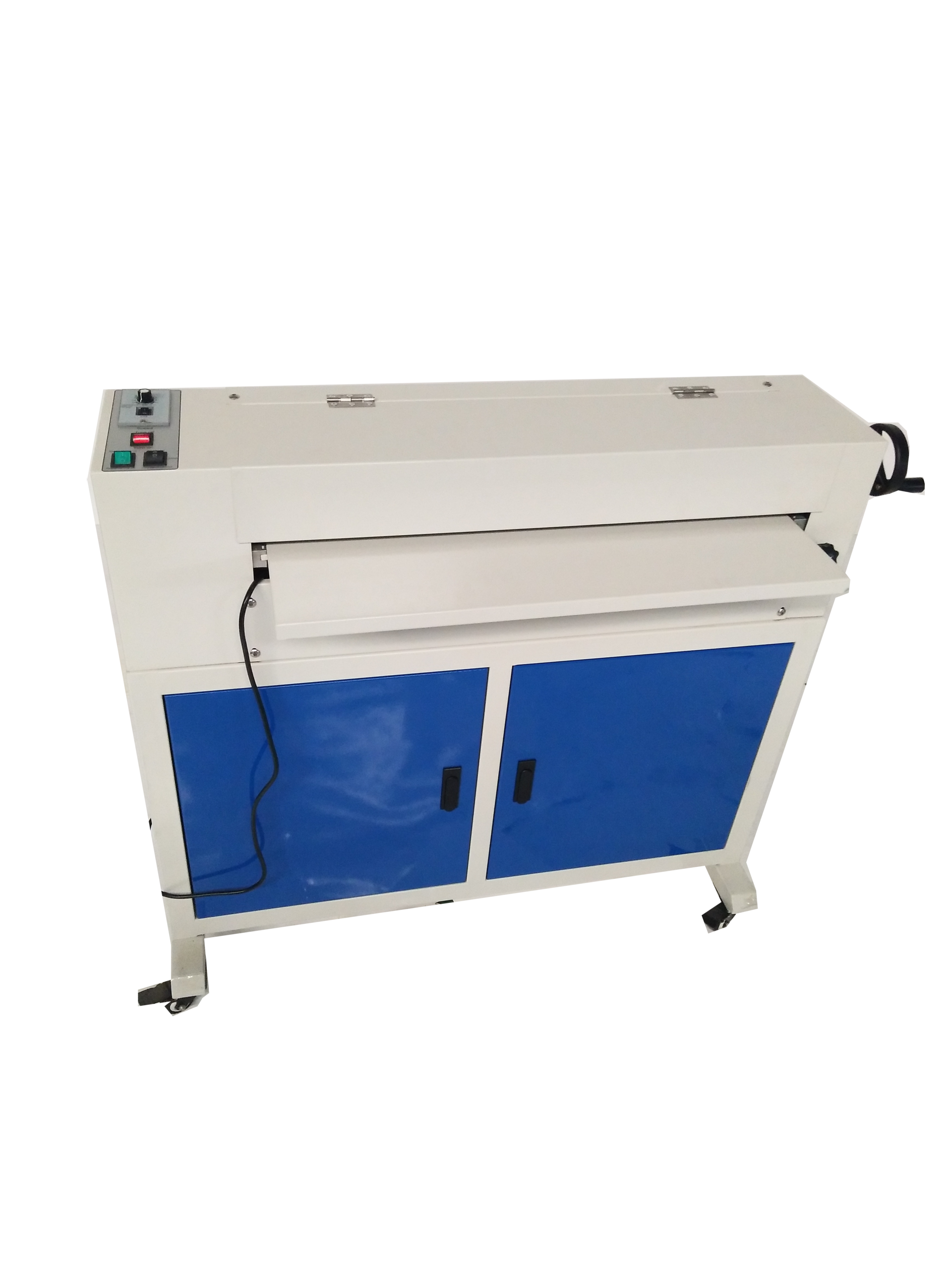

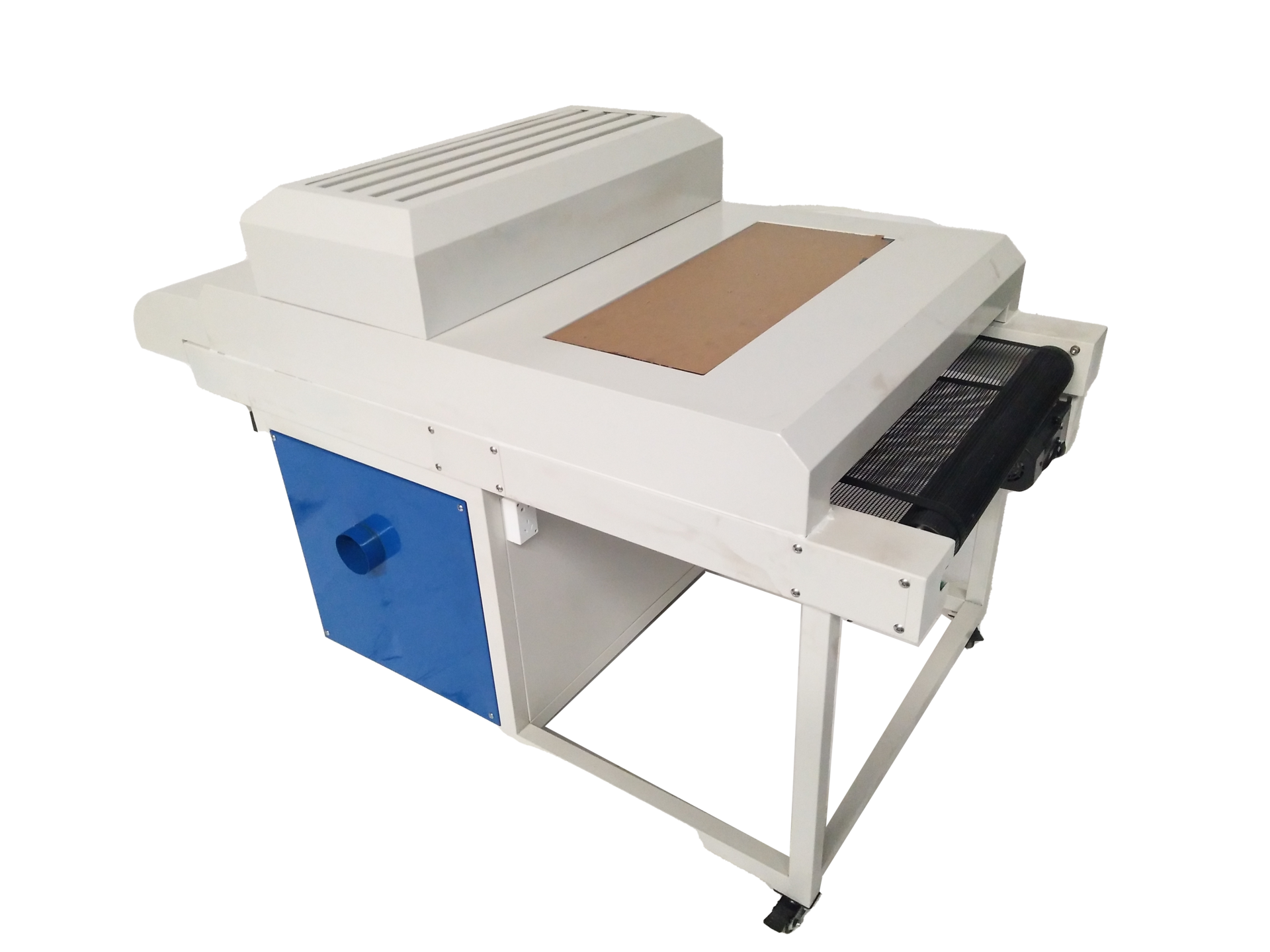

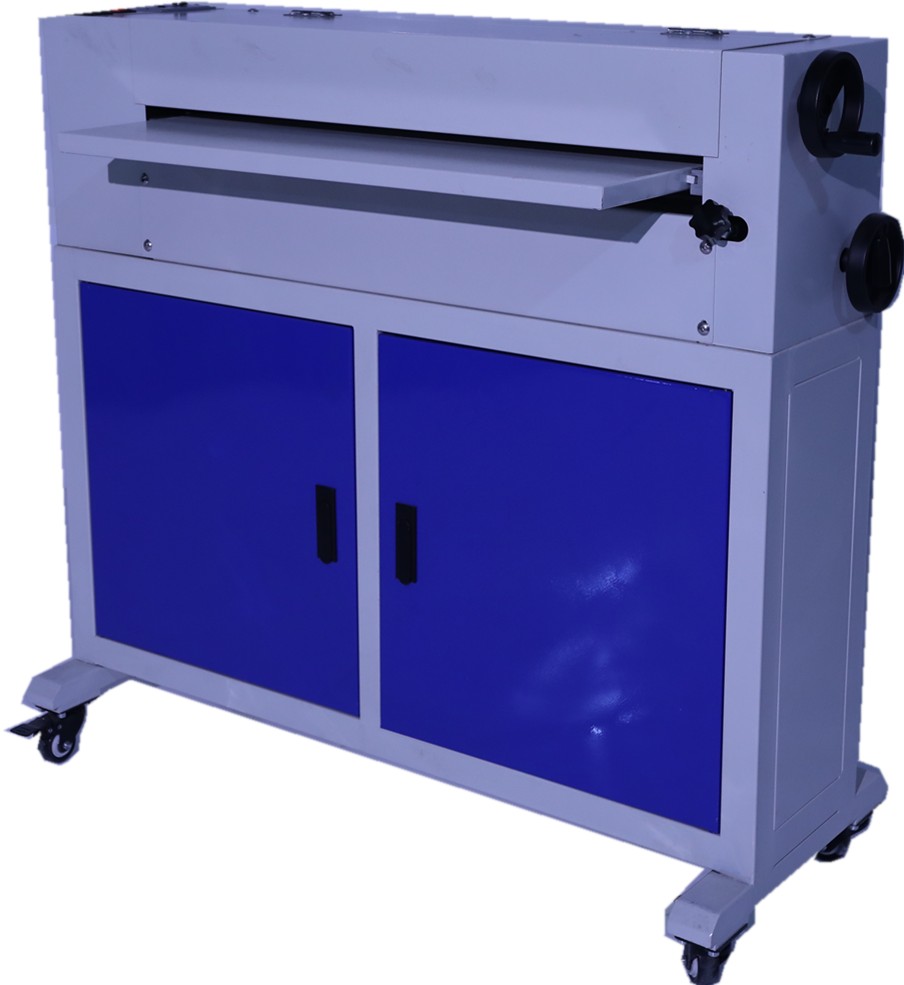

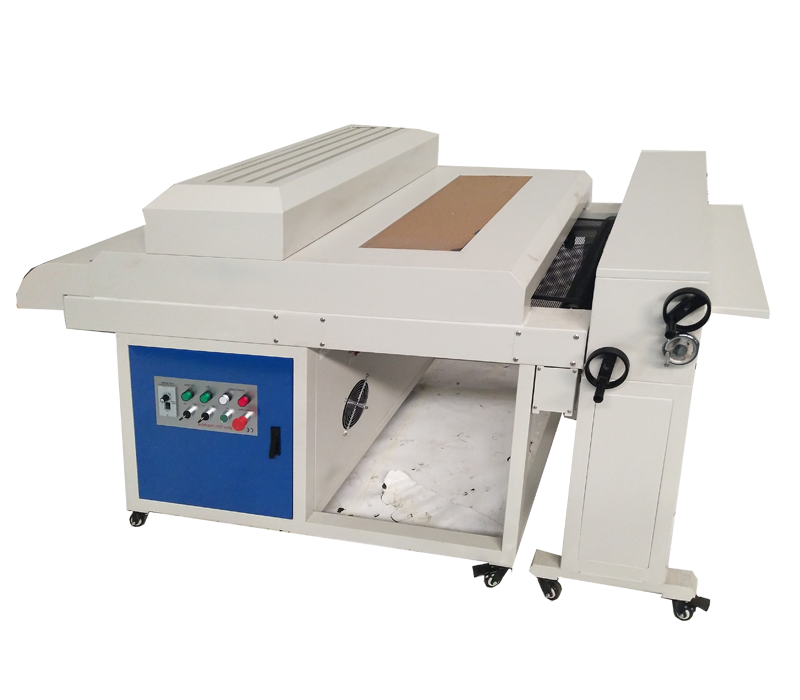

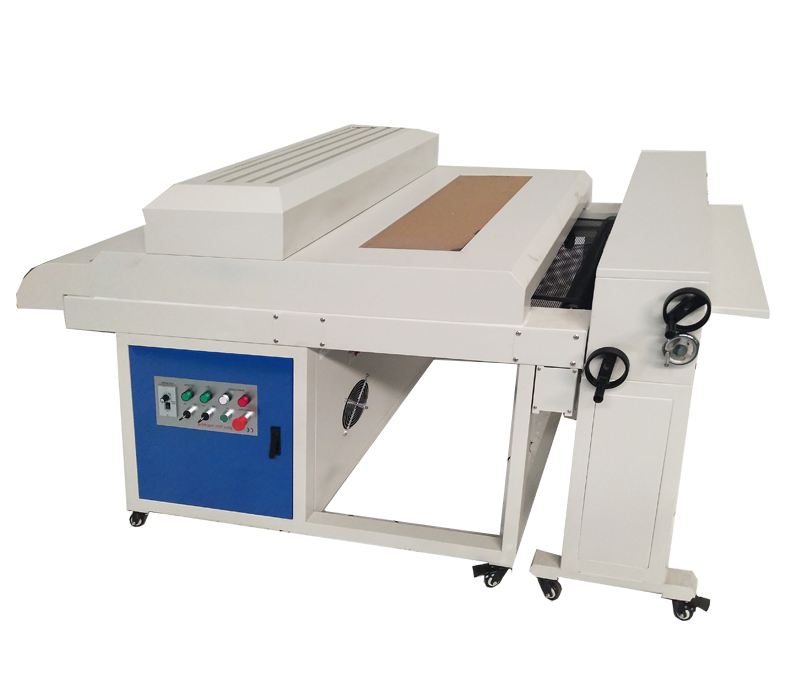

ST QH-Coat 24"(650mm) Texture UV Coater
Our UV coater should be an ideal solution partner for both digital press users and tranditional offset printer user. we make sure this machine gives your customer upgrade printing quality by perfect UV coating. Also Free standing Preheat-IR unit(Option) gives you a perfect solution for wax based toner coating. Apply UV, Aqueous& Primer Coatings To A Wide Variety Of Substrates To Make Your Prints Stand Out.

STQH-Coat Series is a solution for applying texture designs on the coating image. It realize to change texture roller manually to save cost. It has a width range from 18”(48cm) to 36”(90cm).

Item Specifications
Size: 24"(650mm) Wide
Max Sheet: 24"(650mm) x Infinity
Sheet Thickness: 180-600 GSM
speed: 0--9m/min
Power: 220V, 2Ph, 50Hz/60Hz
Curing : UV
Texture: self-choosing changeable single texture roller
Compatibility: traditional off print

Request A Quote

INQUIRY
WhatsAPP

Related Products

Product Description

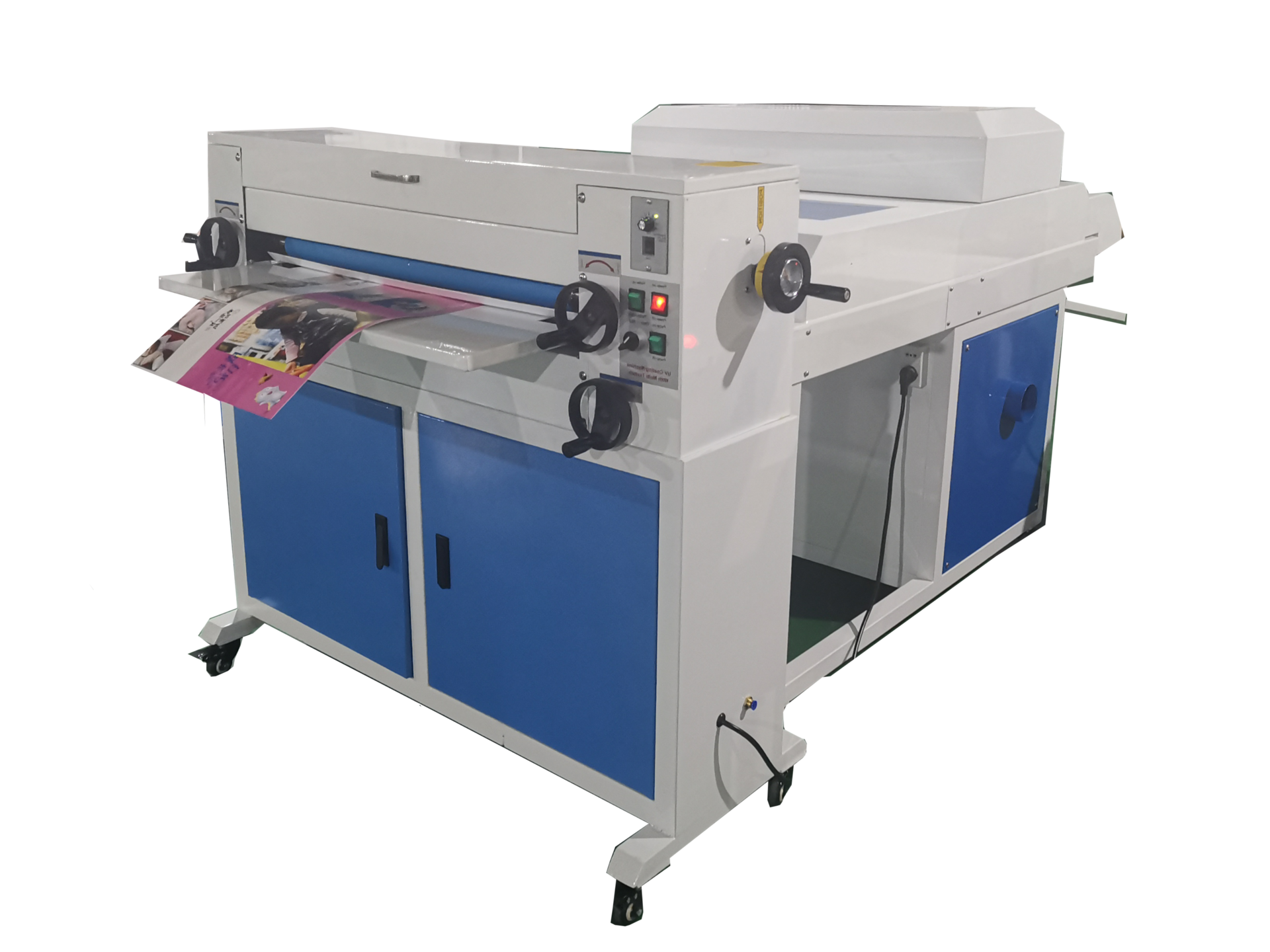

ST QH-Coat 24"(650mm) Texture UV CoaterST QH-Coat 18"(480mm) Texture UV CoaterST QH-Coat 36"(900mm) Texture UV CoaterMT QH-Coat 24"(650mm) Texture UV CoaterMT QH-Coat 18"(480mm) Texture UV CoaterQH-Coat 24" (650mm)UV Coater
Max  Width 24" (650mm)18" (480mm） 36" (900mm) 24" (650mm)18" (480mm） 24" (650mm)
Min Thickness 24" (650mm)180g180g180g180g180g
Max  Thickness180g800G300G800G/300G800G800G/300G
Speed 0-9m/min0-9m/min0-9m/min0-9m/min0-9m/min0-9m/min
Effectplain or textureplain or textureplain or textureplain or textureplain or textureGlossy/Matt
texture effectsingle changable texture rollersingle changable texture rollersingle changable texture roller5 texture rollers5 texture rollersOptional
Power3500w2500w3500w3500w2500w3500w
Weight350kg250kg465kg390kg290kg350kg
Dimension112*200*132cm92*130*132cm140*200*132cm112*200*132cm92*130*132cm112*200*132cm
Key PointEconomic texture coating，Universal sizeEconomic texture coating，Compact sizeEconomic texture coating，bigger sizeUniversal size，5 texture roller in one machineCompact size，5 texture roller in one machineStandard type,Universal size



Main Characteristics

◆ The machine is free of cleaning, and can supplementing the uv liquid automatically

◆ The machine automatically shut off when the temperature is too high to assure of safe operation.

◆ Using superior lamp, lamp room which exert heat forcefully to prolong the life span by the heat and achieving faster drying.

◆ The finished print can be of high rigidity and high glossy or matt

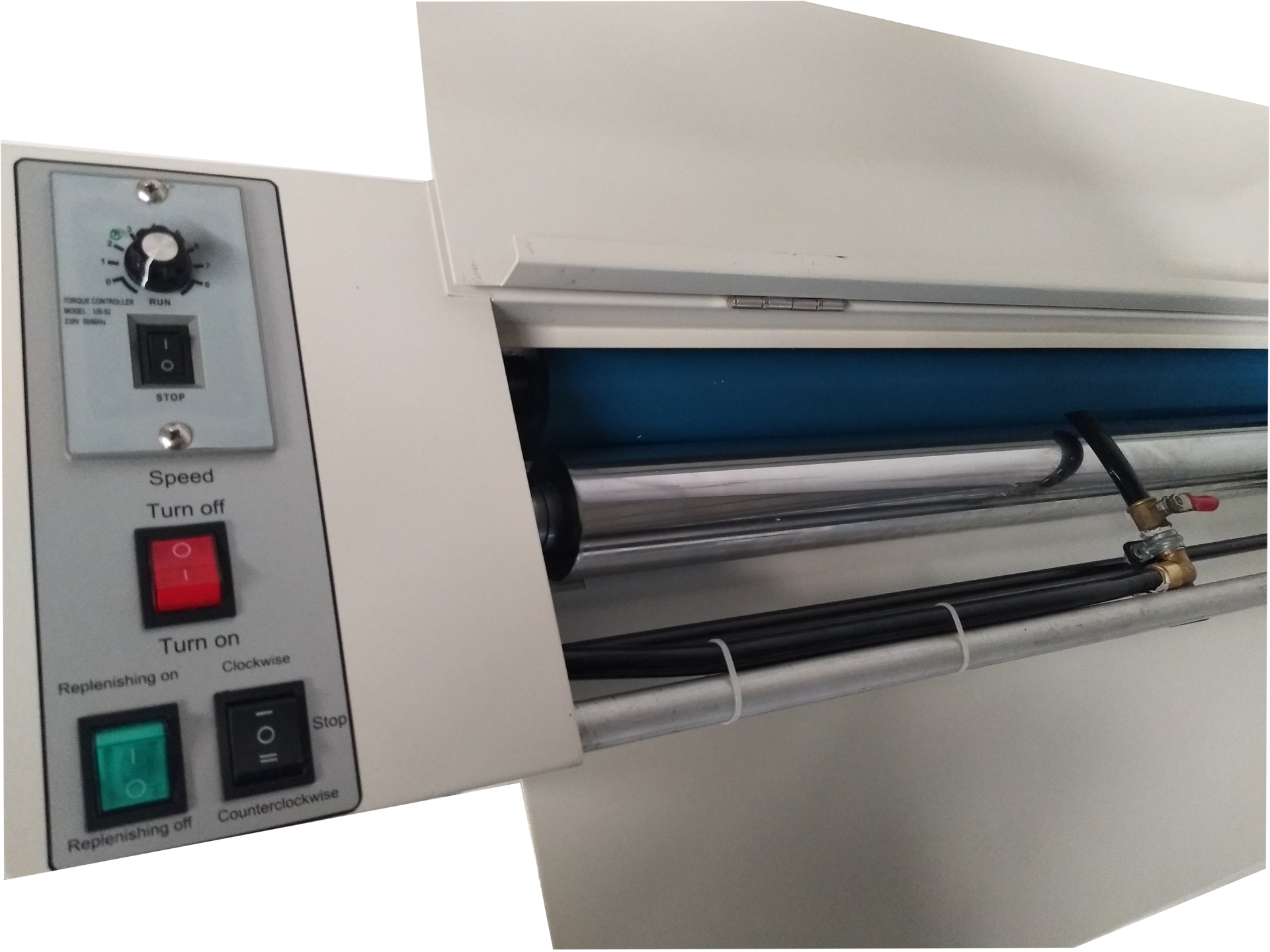

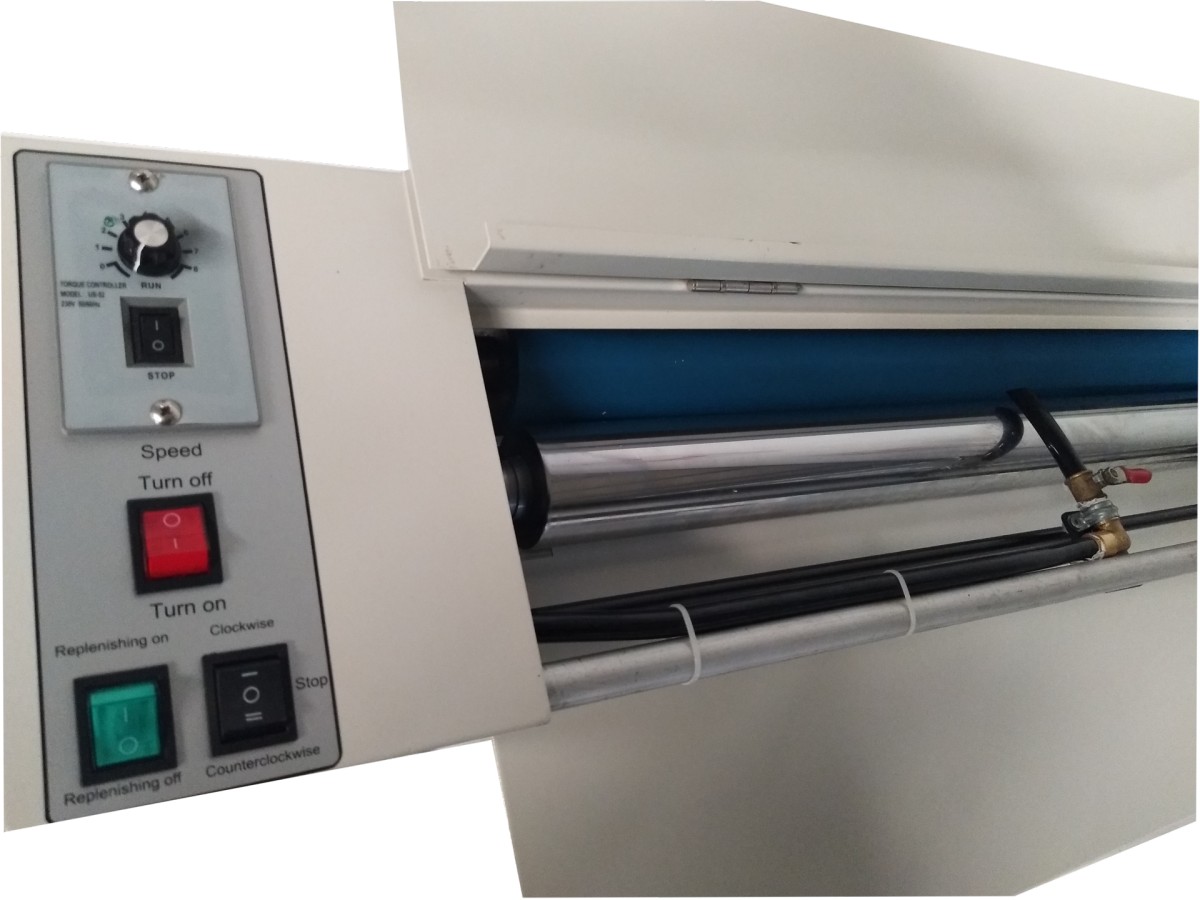

◆ The thickness of coating layer can be easilly adjusted by the controlling wheel.

◆ The conveyor belt is of high quality.

◆ The consumable cost is low which is at 0.2-1yuan（0.03-0.16 USD）and add consumables is very convenient.


Accessories and Advantage

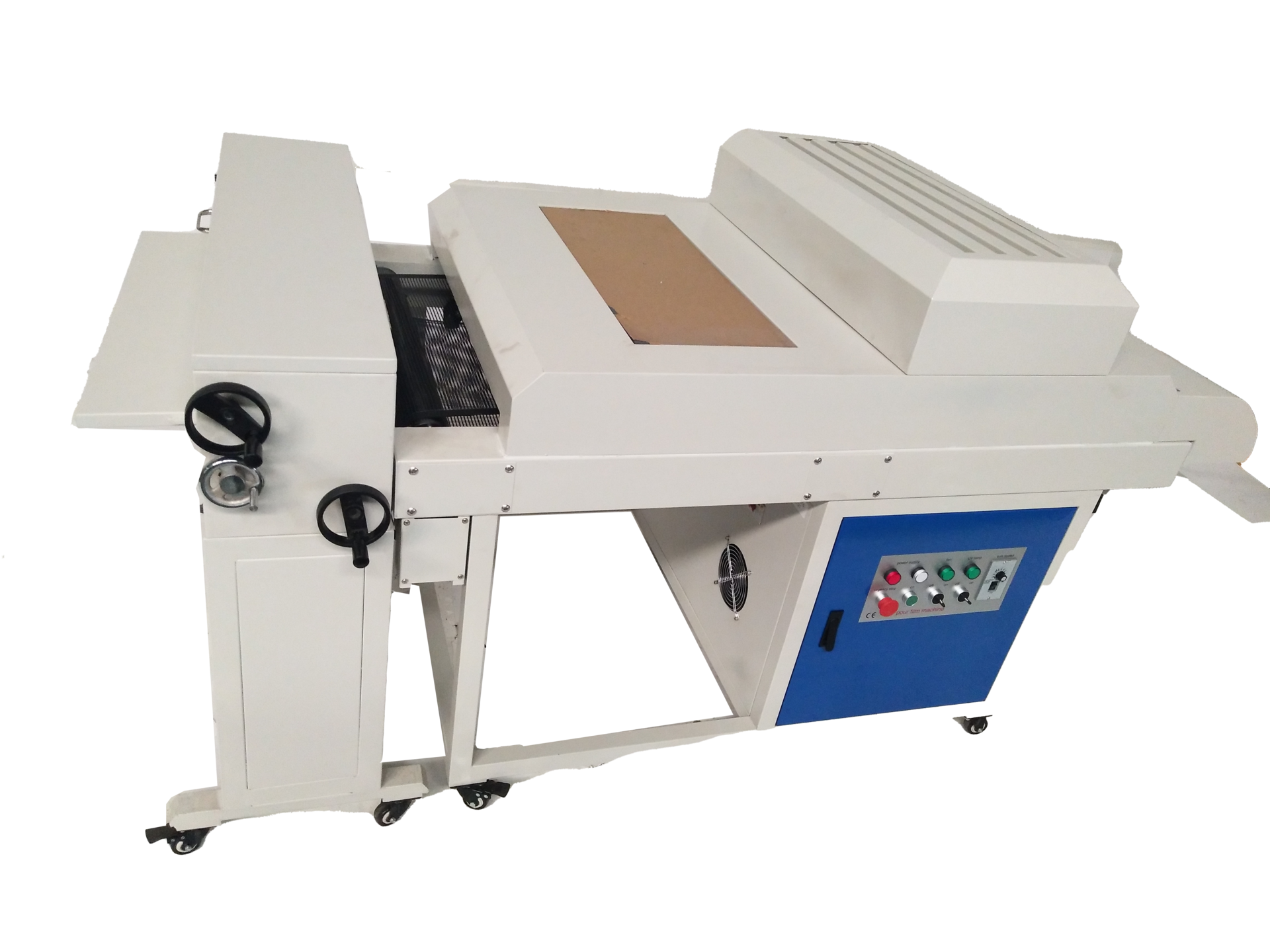

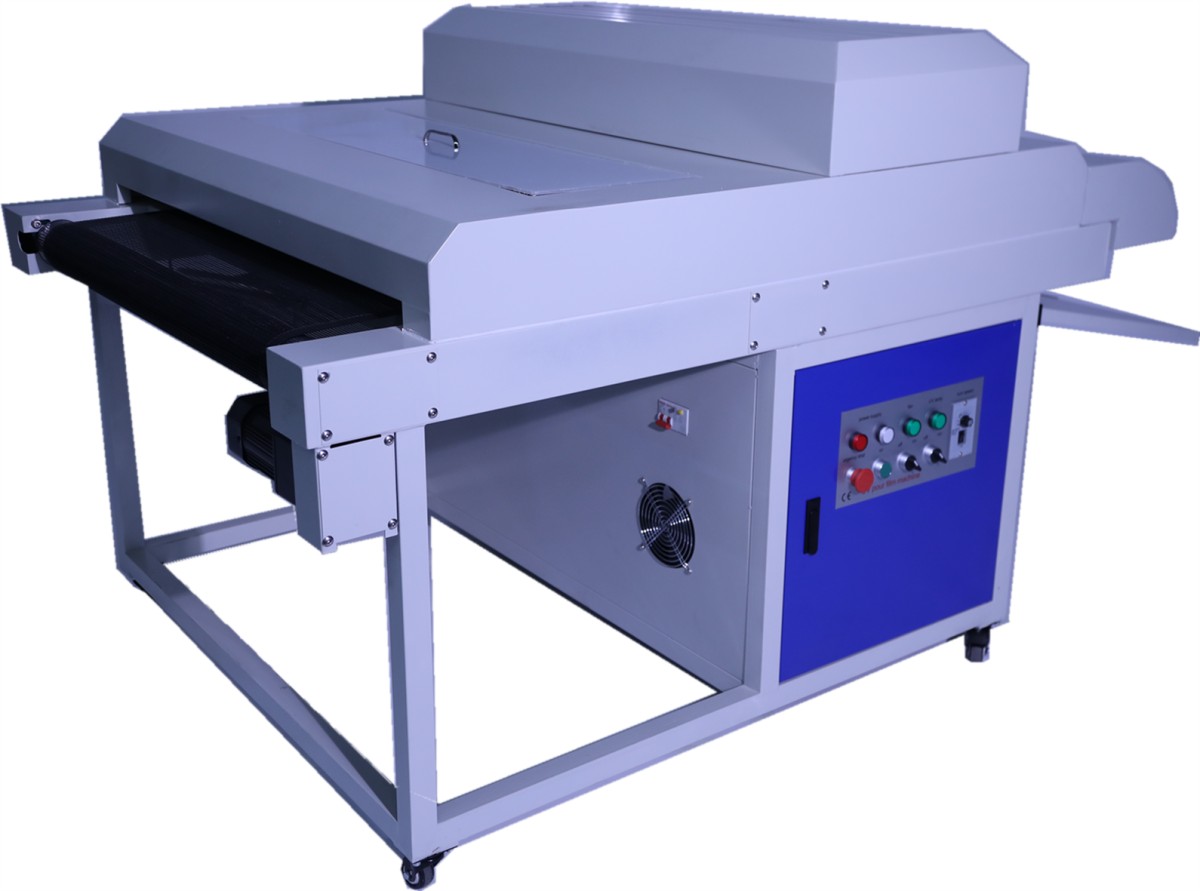

  • The machine was composed by two part, so we can use the body part freely as a dryer, and easy maintenance.

  • Different textures are available, we also can do customizing design as your request.

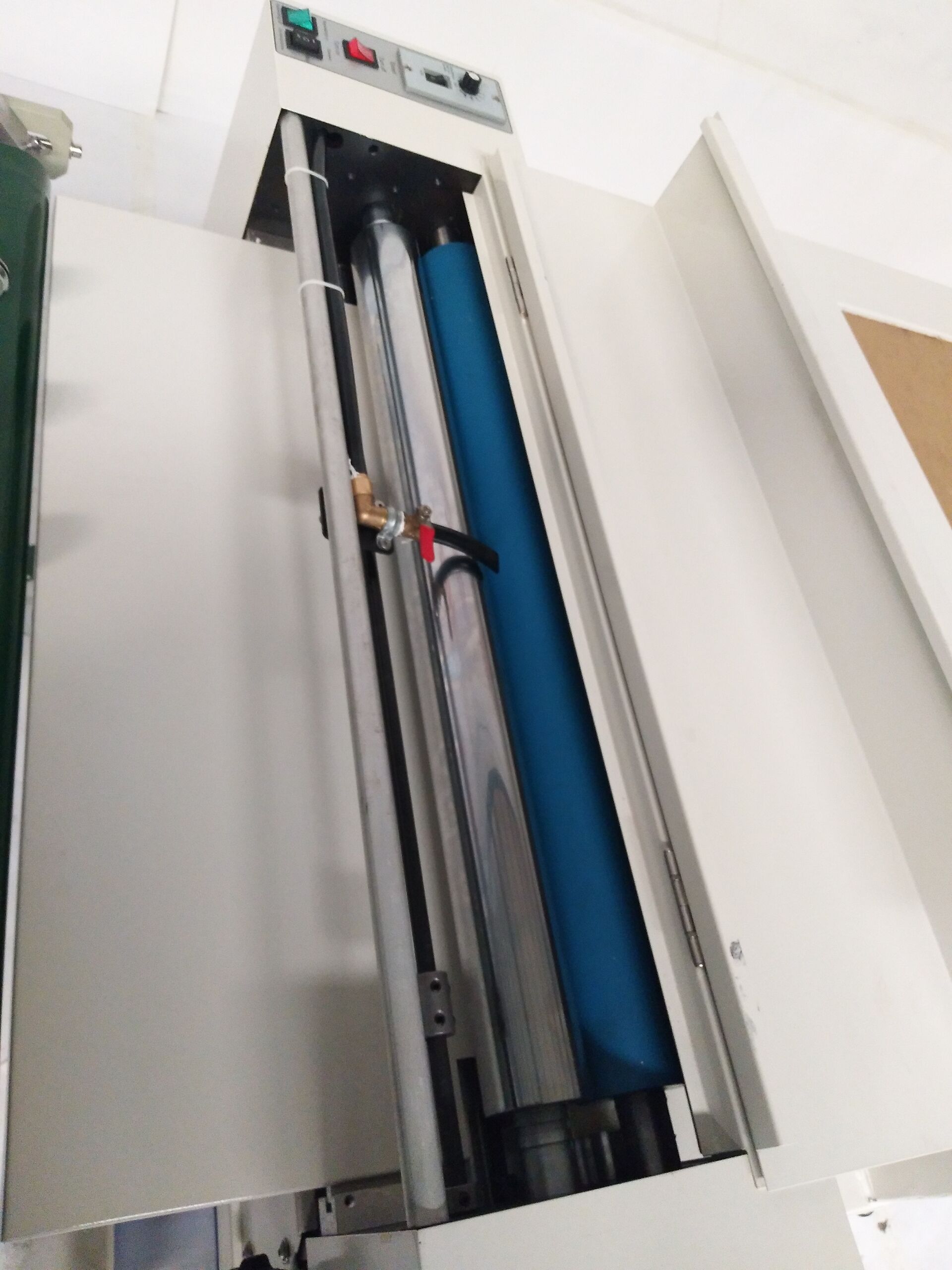

  • Texture roller is easy to change with 4 detachable crews.

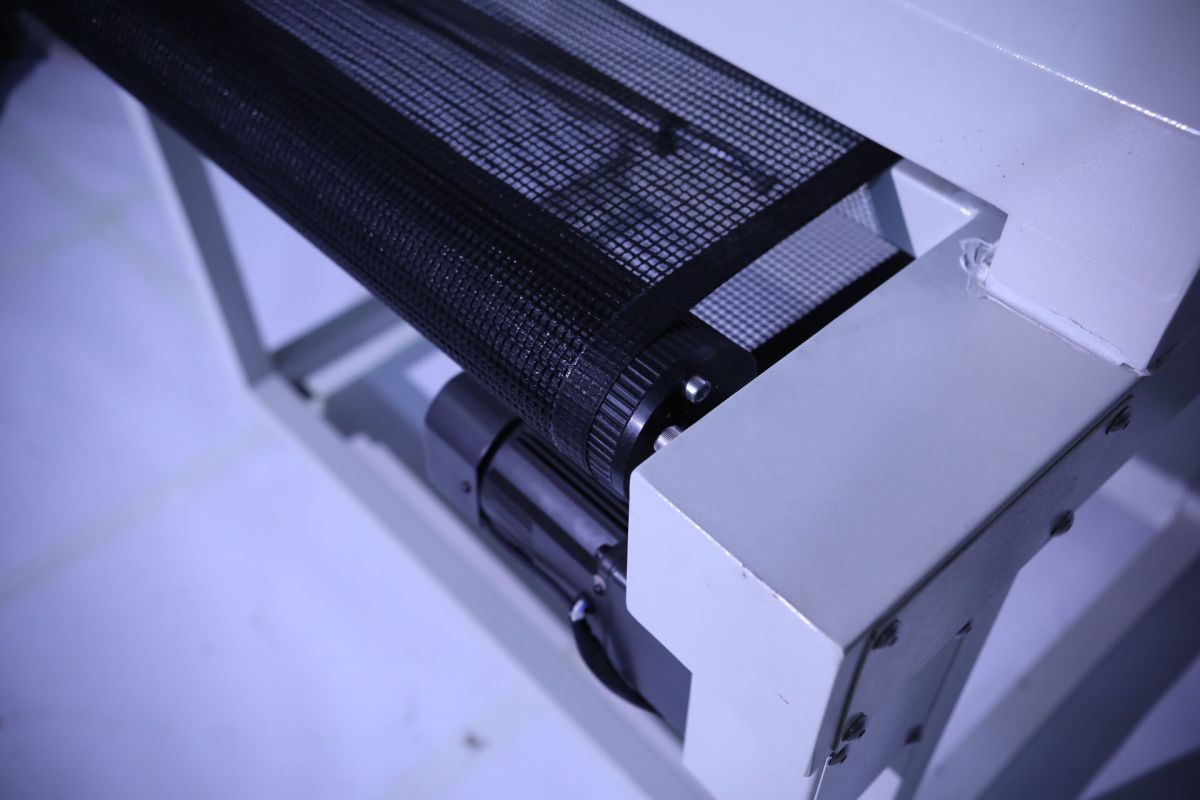

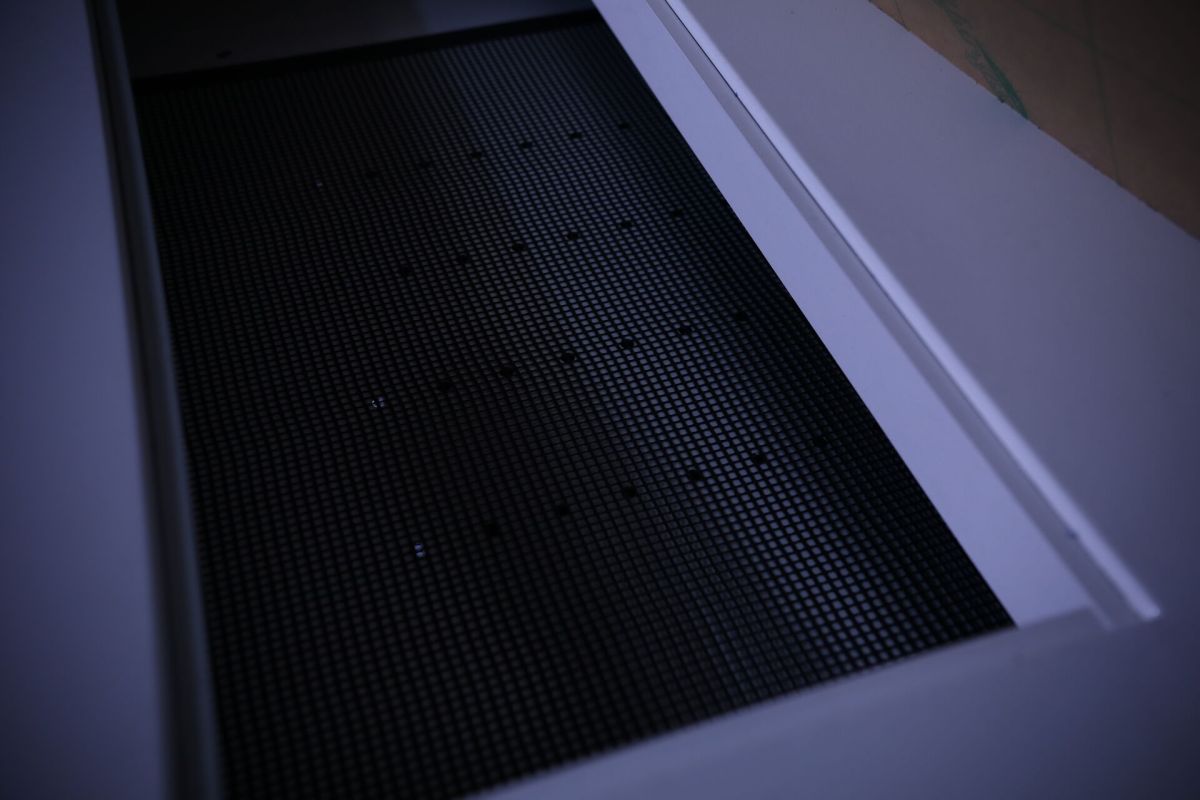

  • High quality Nylon belt which can endure high temp and be flexible during the work.

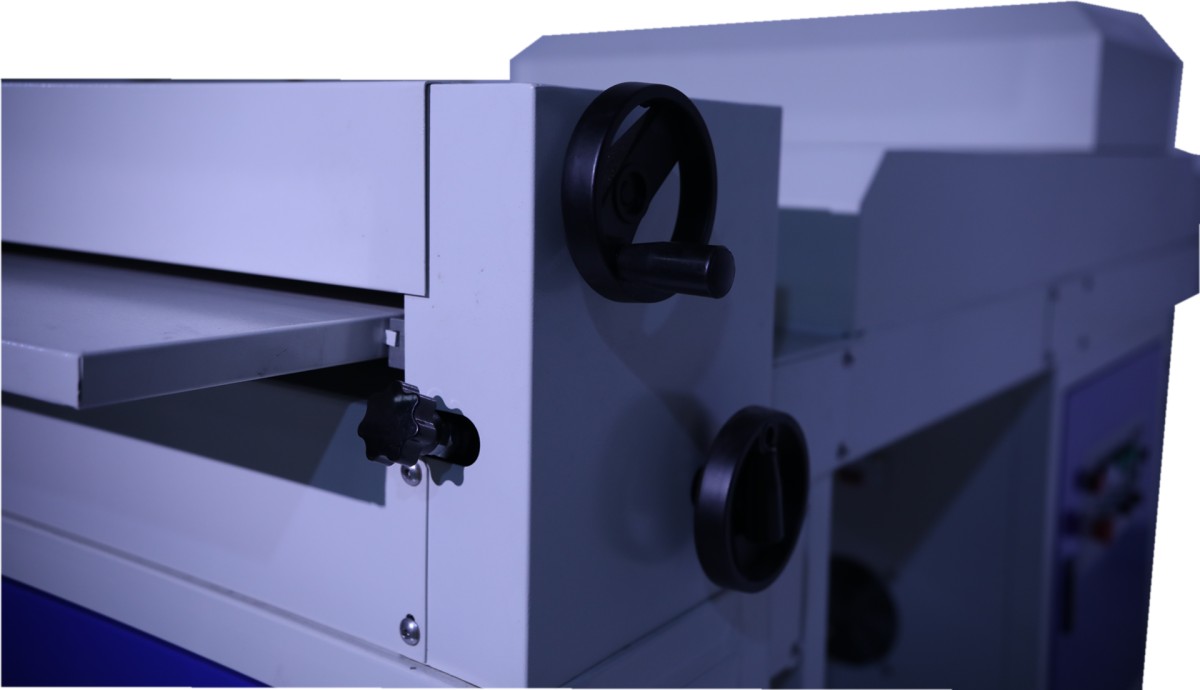

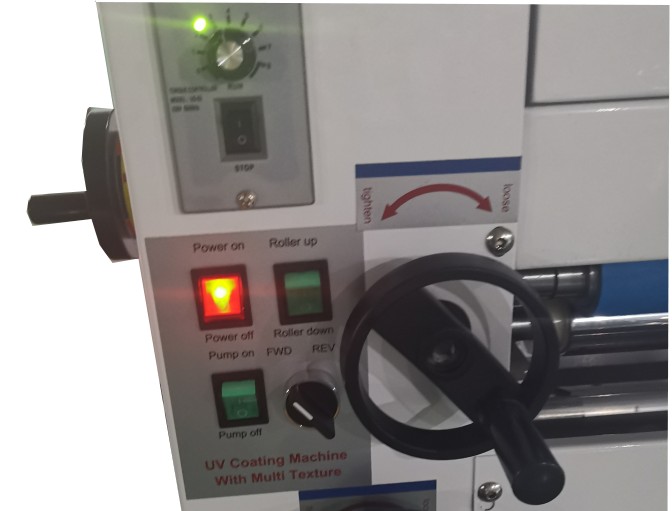

  • Wheels for adjusting the material thickness, coating thickness and doctor blade to ensure the machine working in a perfect condition.

  • Navigated pressure system ensure the print go smoothly through the belt to avoid any curing problem.

  • CE standard wiring system , guarantee the machine safe and long life span.

  • Paper stopper system ensures the photo paper come out smoothly and neatly.

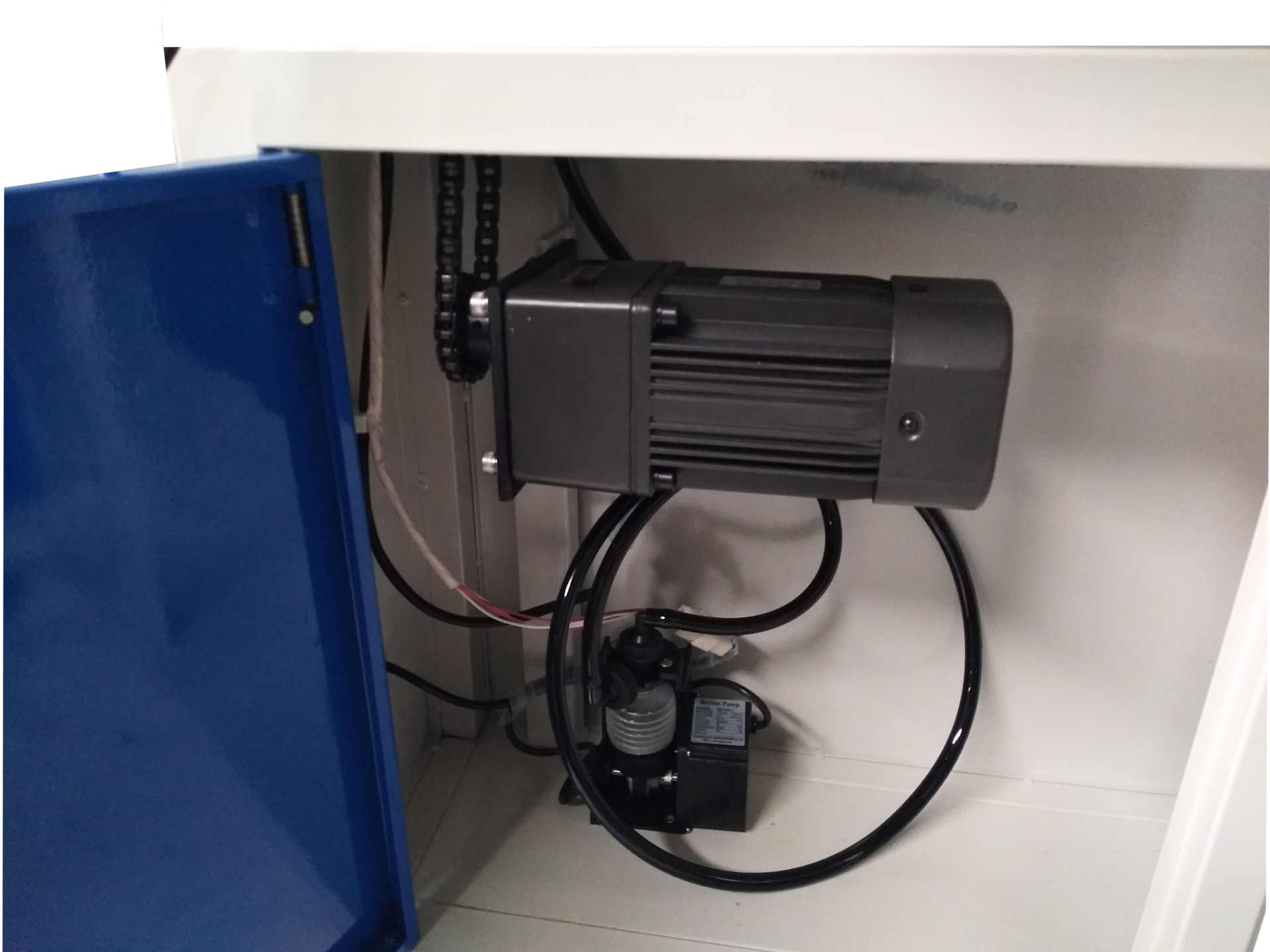

  • Pump circuit system to make the liquid going circle smoothly and without any waste.

  • Belt diavation system avoid the belt going slide to increase its service life.

  • The light shade system can avoid the liquid splashes to operator.







Application

UV Coating is the most effective process you can apply to post-printed materials, allowing you to coat and cure right at the press. Applying an ultra-violet coating on printed pieces sustains their longevity against fading and yellowing that occurs as a result of sun damage. Even the varnish qualities of a UV coat itself can add to the durability of printed material, reducing tearing and increasing resistance to folding and creasing that can damage expensive marketing or promotional material. Plus the coating actually improves the appearance of the print as well. The glossy or matte finish of a UV finish enhances colors in the print, making colors brighter while making dark tones and blacks bolder and richer. Discover the quality advantages of UV Coating today with these awesome machines.
