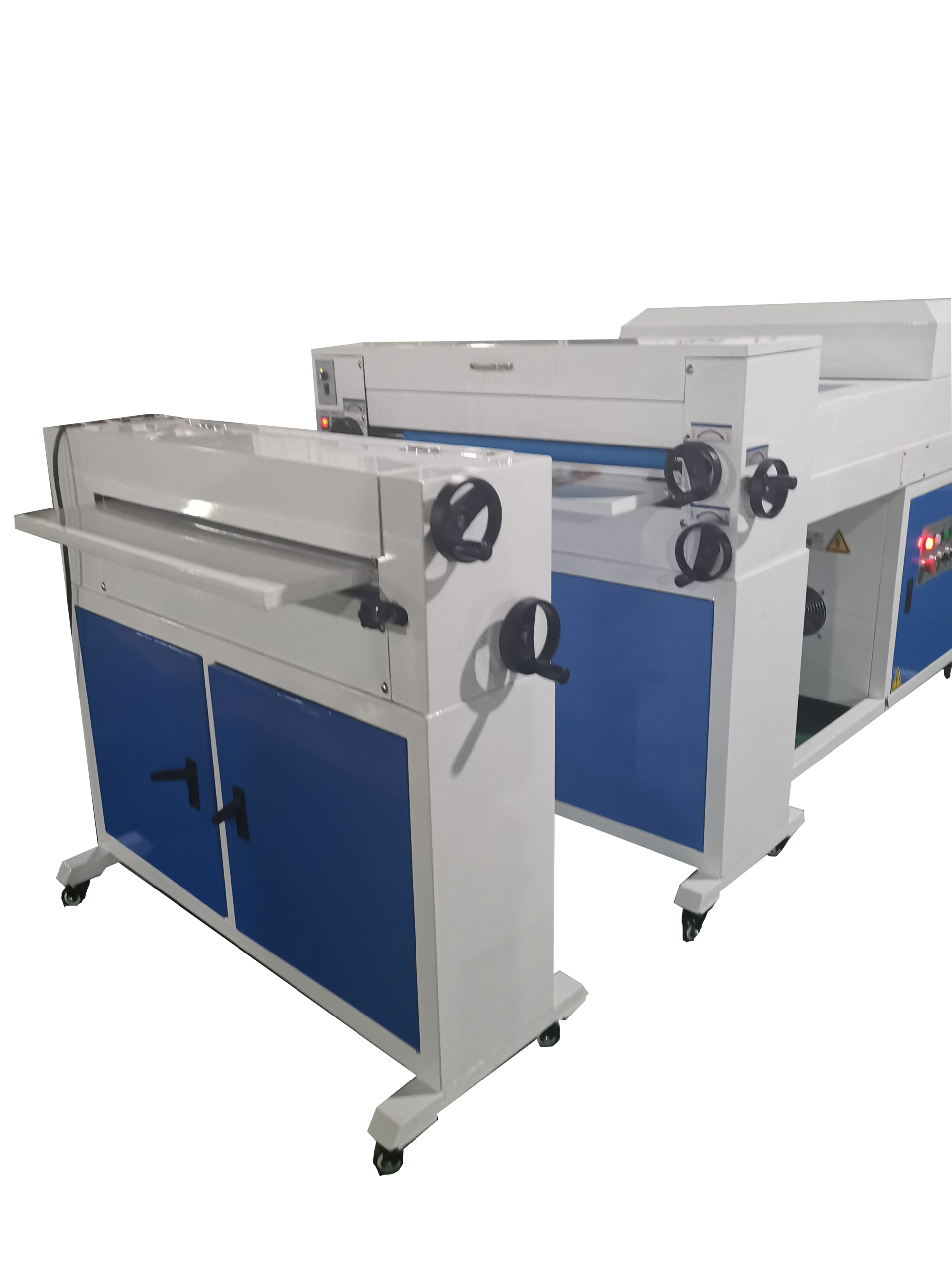

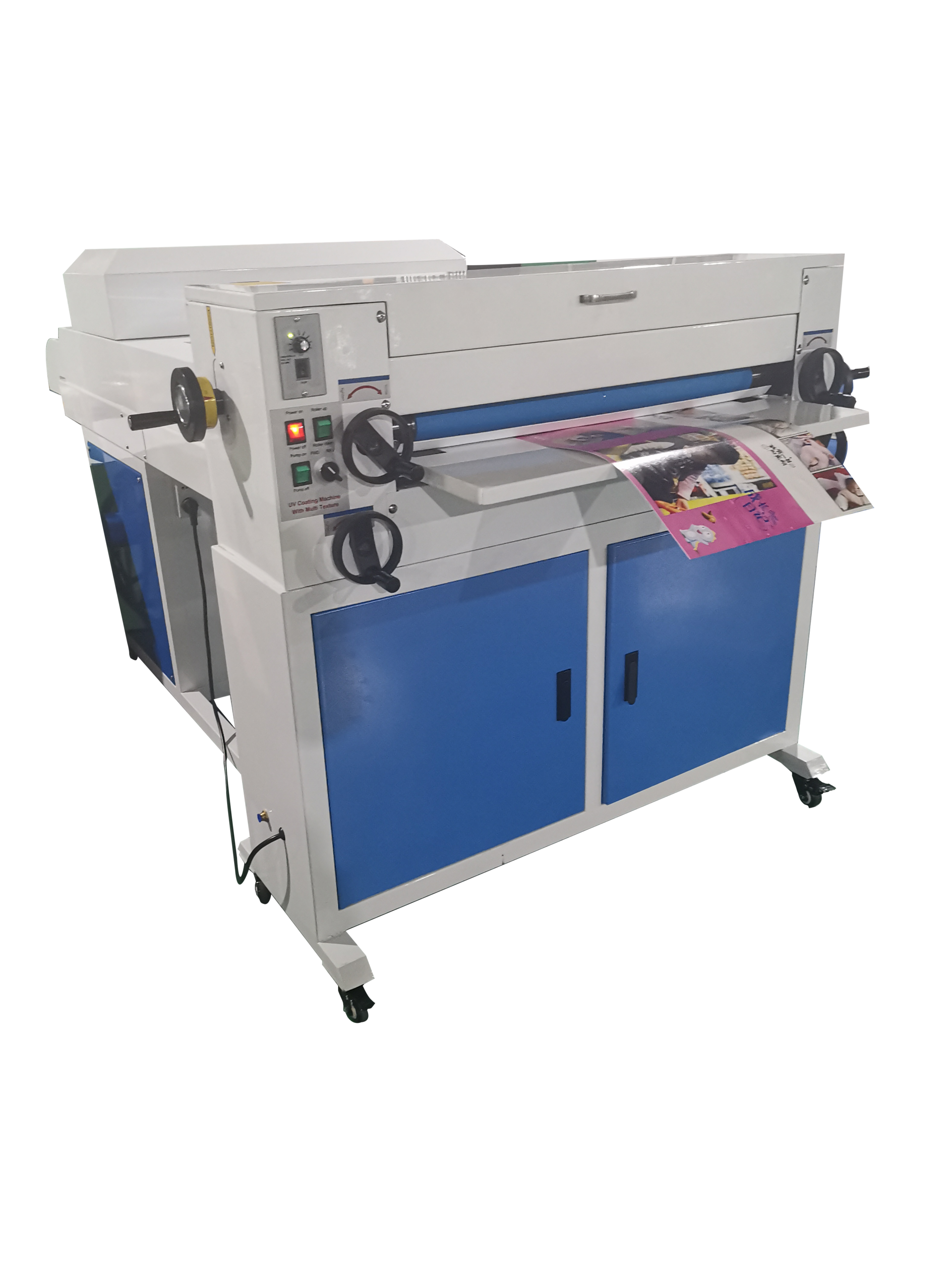

MT QH-Coat 24"(650mm) Texture UV Coater
Our UV coater should be an ideal solution partner for both digital press users and tranditional offset printer user. we make sure this machine gives your customer upgrade printing quality by perfect UV coating. Also Free standing Preheat-IR unit(Option) gives you a perfect solution for wax based toner coating. Apply UV, Aqueous& Primer Coatings To A Wide Variety Of Substrates To Make Your Prints Stand Out.

MTQH-Coat Series is a solution for applying texture designs on the coating image.There are 5 texture rollers on the machine, the user can change designs freely. It has a width range from 18”(48cm) to 24”(65cm).

Item Specifications
Size: 18" (48cm) Wide
Max Sheet: 18" (48cm) x Infinity
Sheet Thickness: 180-600 GSM
speed: 0--9m/min
Power: 220V, 2Ph, 50Hz/60Hz
Curing : UV
Texture: 5 texture rollers
Compatibility: traditional off print

Request A Quote

INQUIRY
WhatsAPP

Related Products

Product Description


MT QH-Coat 24"(650mm) Texture UV CoaterMT QH-Coat 18"(480mm) Texture UV CoaterST QH-Coat 24"(650mm) Texture UV CoaterST QH-Coat 18"(480mm) Texture UV CoaterQH-Coat 24" (650mm)UV Coater
Max  Width 24" (650mm)18" (480mm） 24" (650mm)18" (480mm） 24" (650mm)
Min Thickness180g180g 24" (650mm)180g180g
Max  Thickness800G/300G800G180g800G800G/300G
Speed 0-9m/min0-9m/min800G/300G0-9m/min0-9m/min
Effectplain or textureplain or textureplain or textureplain or textureGlossy/Matt
texture effect5 texture rollers5 texture rollerssingle changable texture rollersingle changable texture rollerOptional
Power3500w2500w3500w2500w3500w
Weight(With Package)390kg290kg350kg250kg350kg
Dimension(With Package)112*200*132cm92*130*132cm112*200*132cm92*130*132cm112*200*132cm
Key PointUniversal size，5 texture roller in one machineCompact size，5 texture roller in one machineEconomic texture coating，Universal sizeEconomic texture coating，Compact sizeStandard type,Universal size


Main Characteristics

◆ Single texture or Multi texture is optional

◆ Consumable cost as low as 0.03USD/sqm

◆ Liquid circle running without any waste

◆ Free of cleaning, and can supplementing the uv liquid automatically

◆ The device of powering off automatically when the temperature is too high, the operation is safe

◆ Low cost and the thickness of coating is flexible

◆ The coating liquid is well-distributed with high clarity

◆ Having vacuum hold down device to make sure the light paper can pass without curling

◆ Two supplementing pump optional to ensure coating with glossy or matt easily.

◆ have eye-protection device to avoid the light get into the eyes


Accessories and Advantage

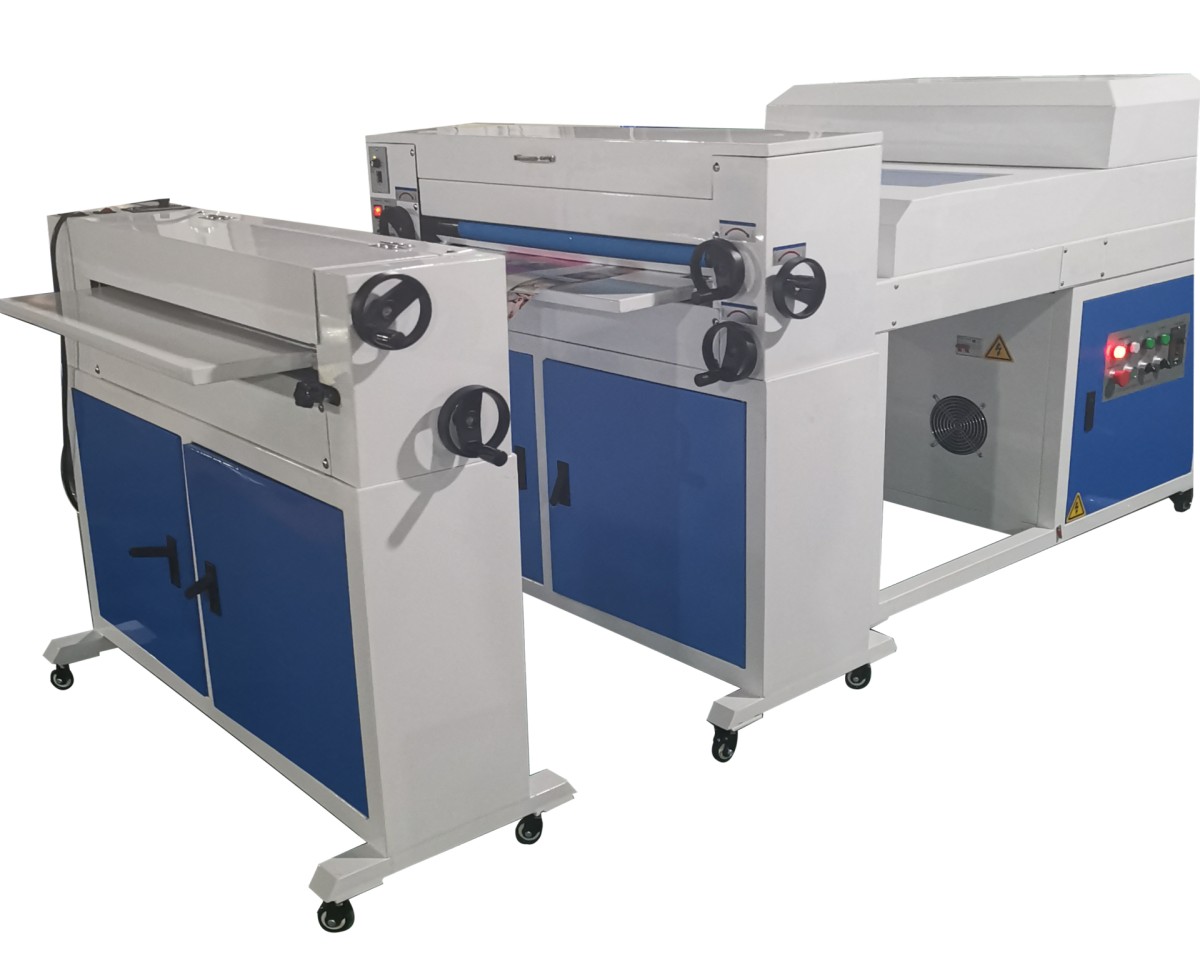

图层 1111.png






图层11 0.png



图层 0@0.1x.png




  • Different textures are available, we also can do customizing design as your request.

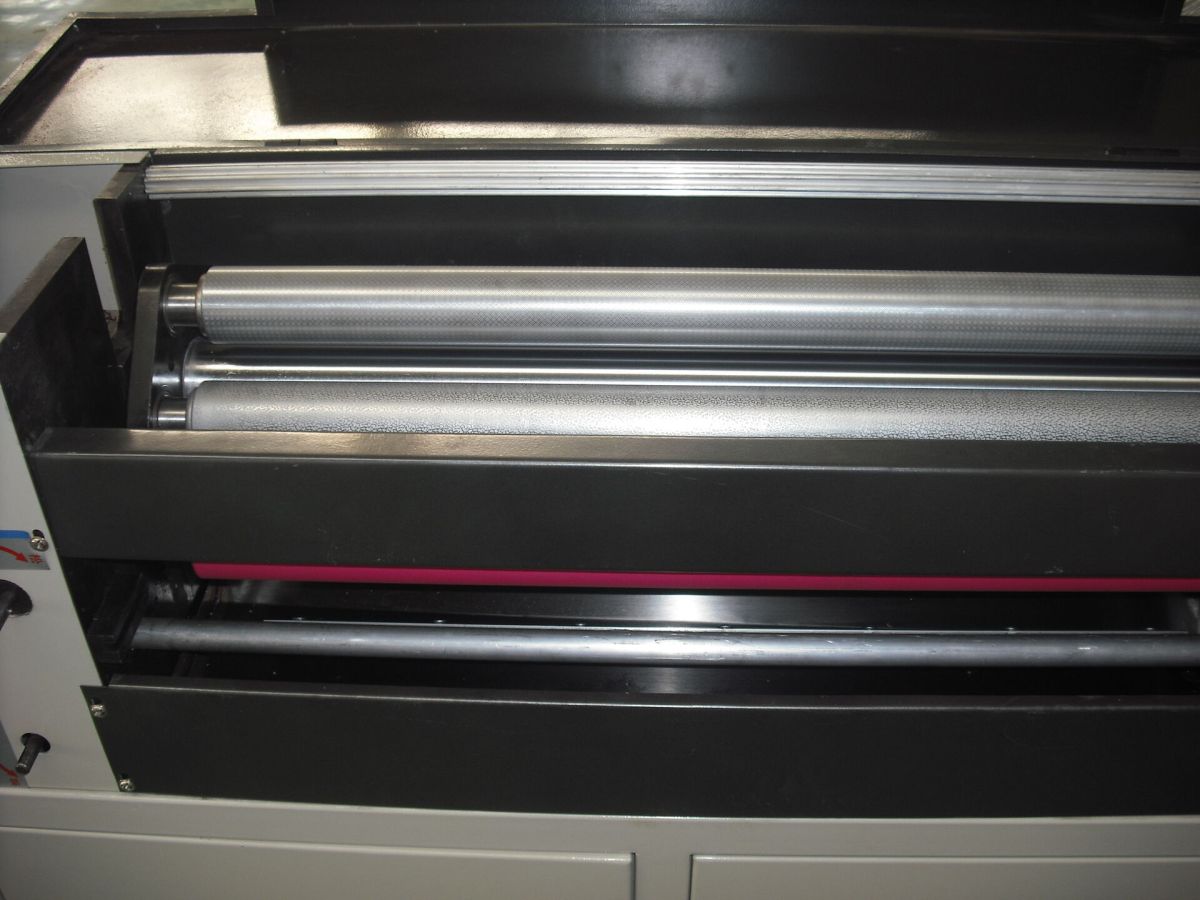

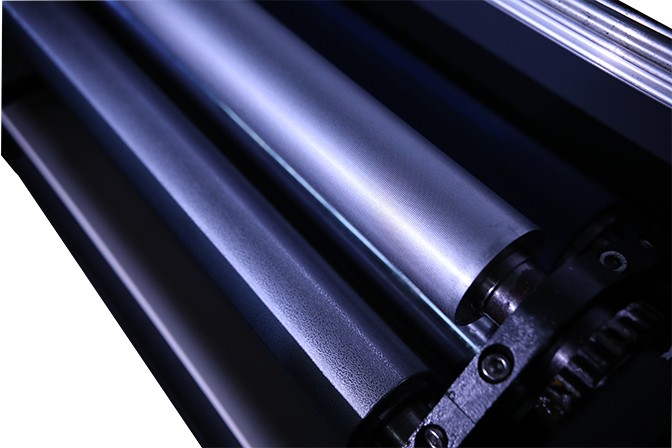

  • There are five rollers in the head part with five different texture, easy to change.

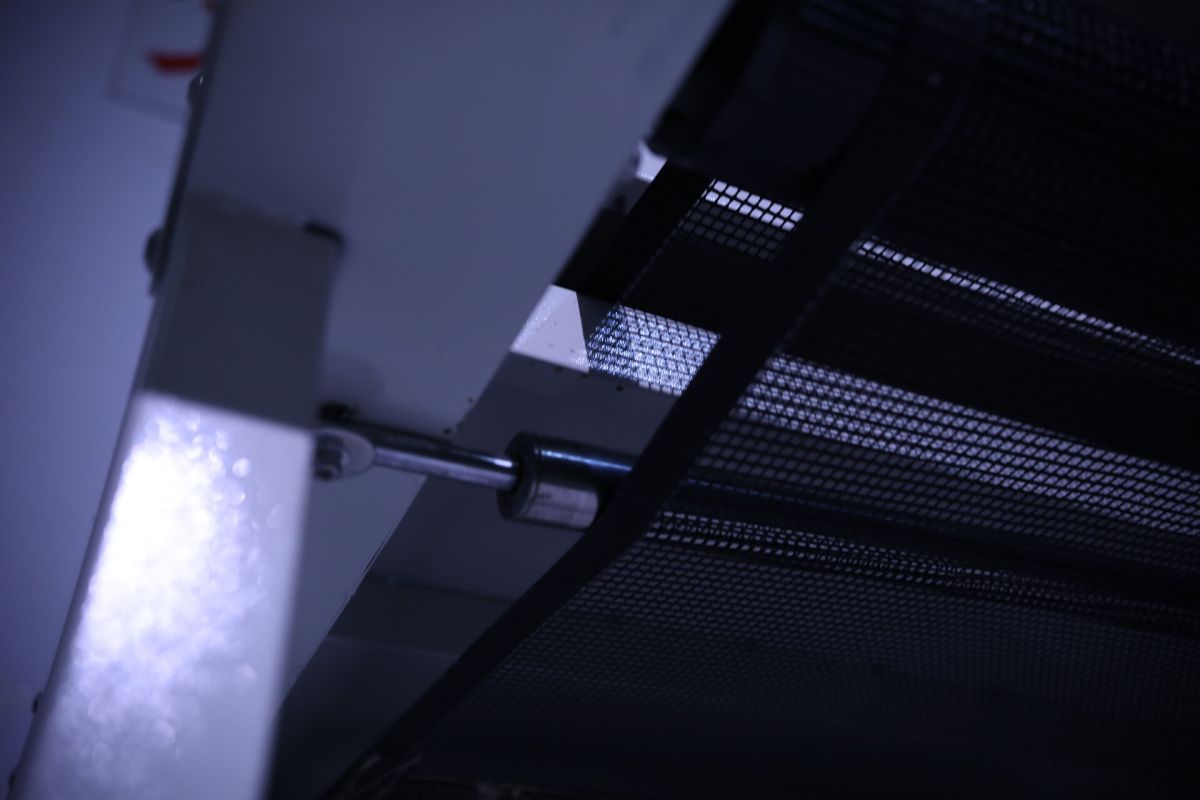

  • High quality Nylon belt which can endure high temp and be flexible during the work.

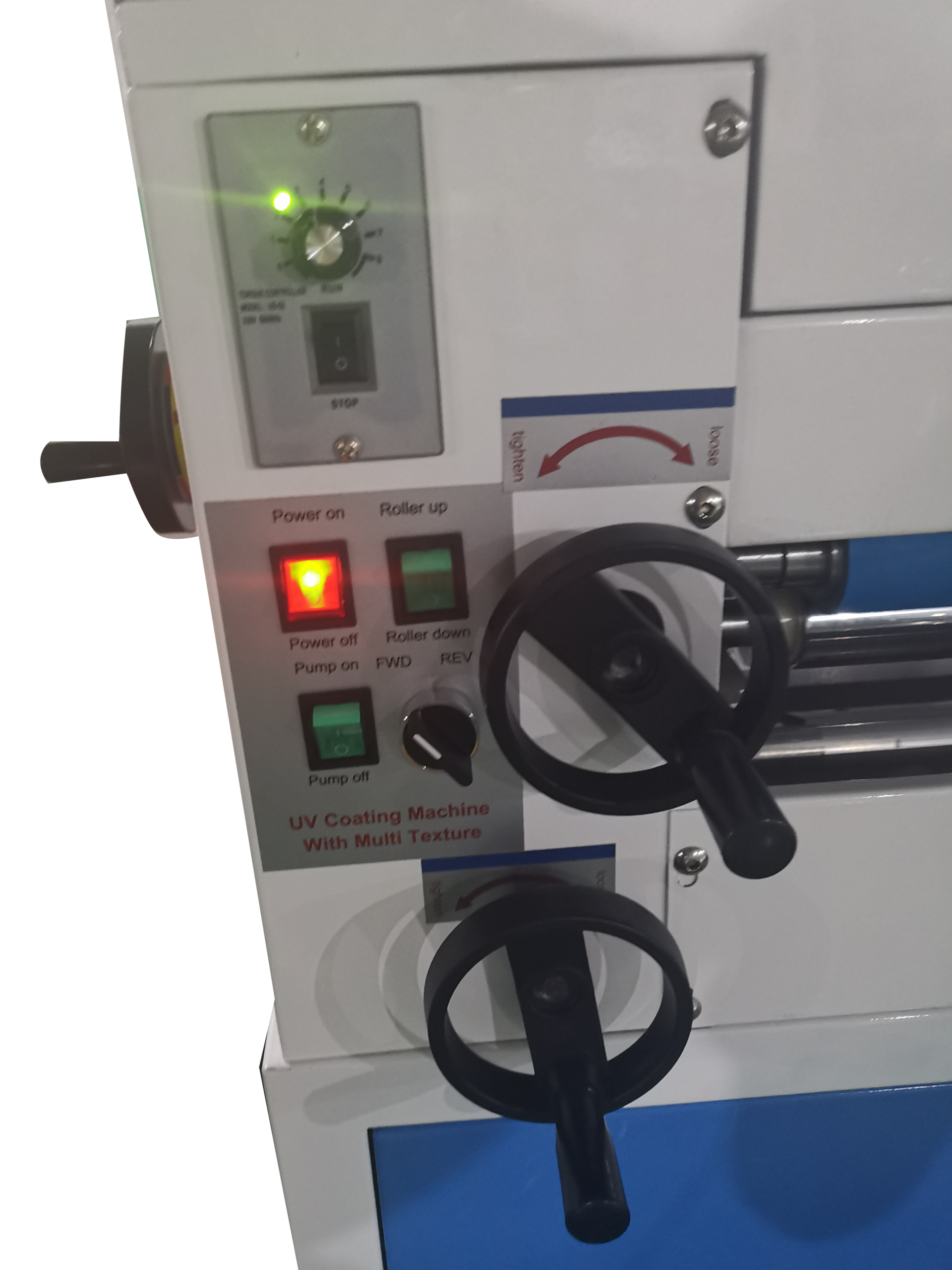

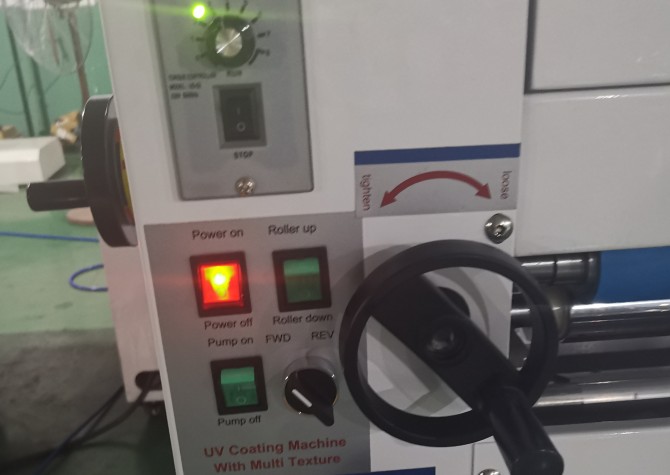

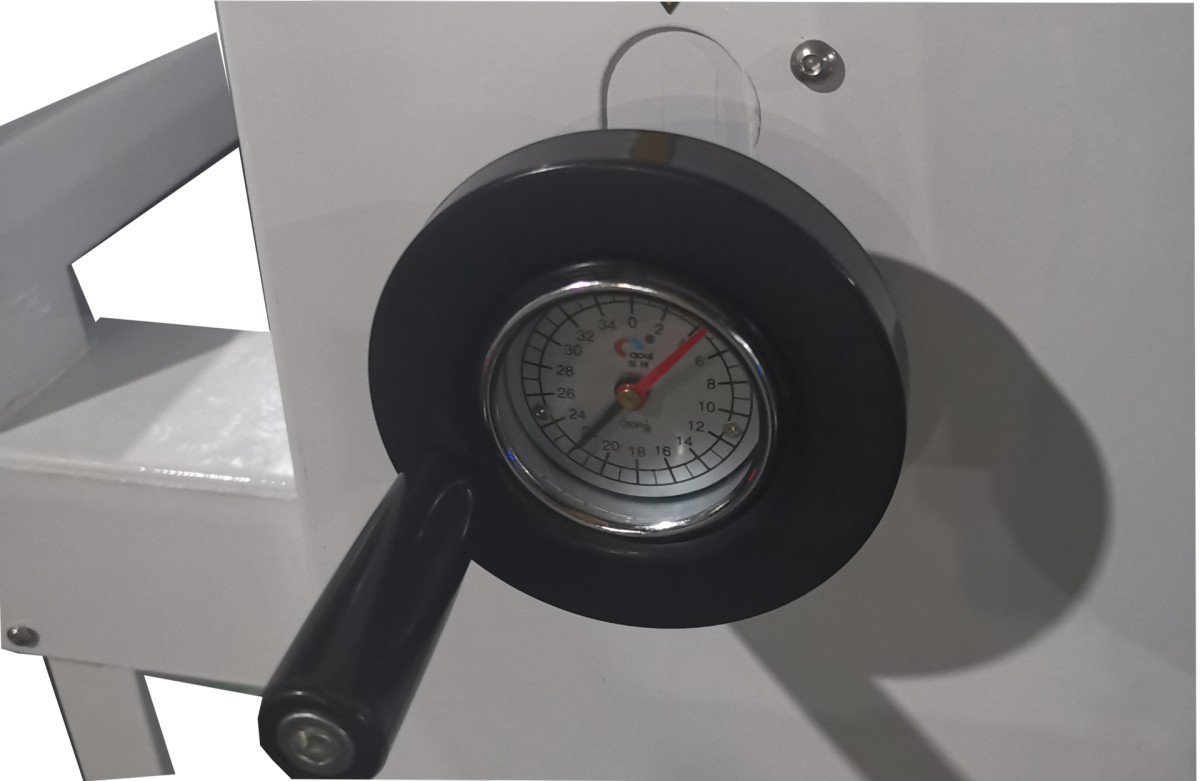

  • Wheels for adjusting the material thickness, coating thickness and doctor blade to ensure the machine working in a perfect condition.

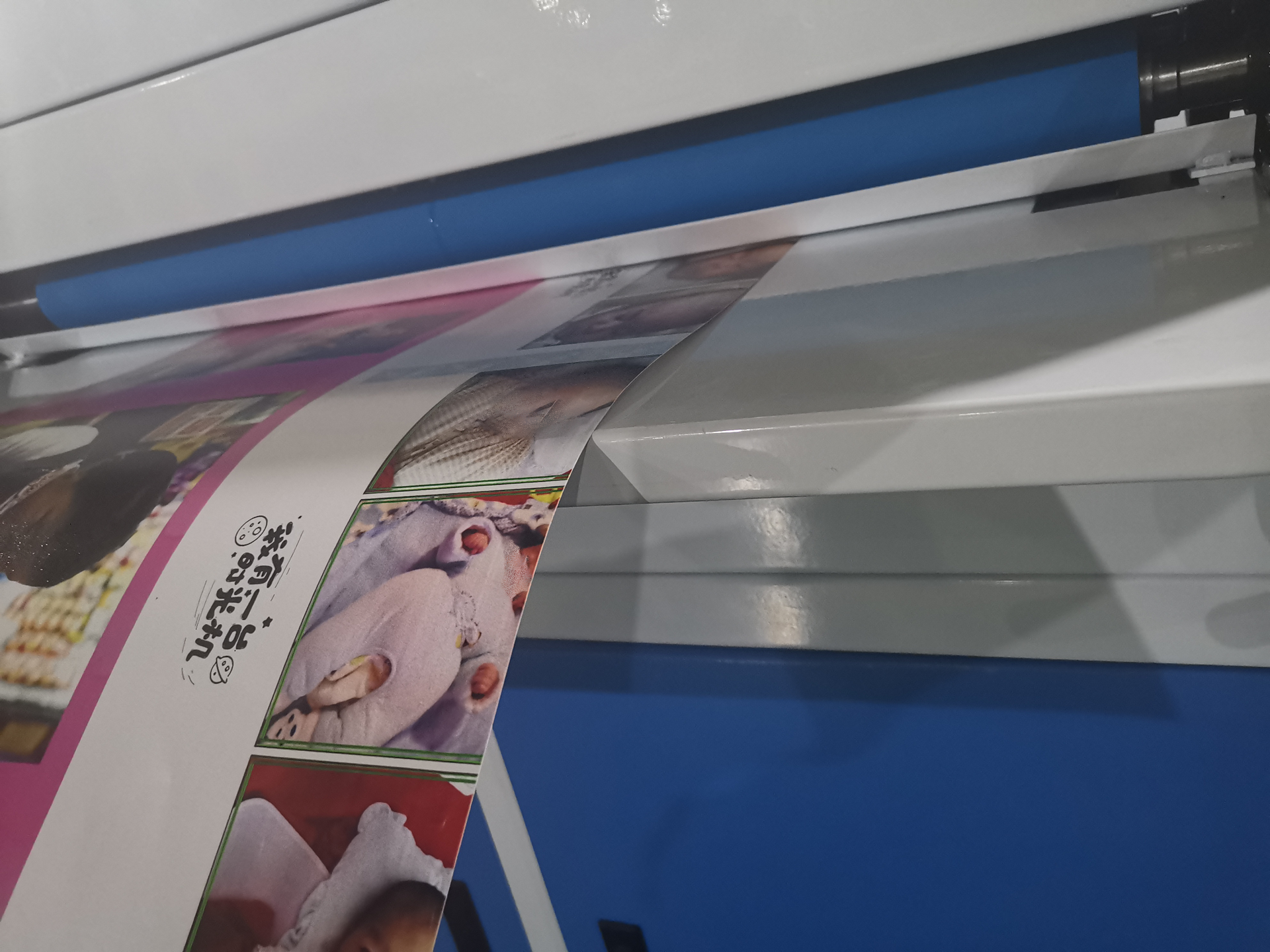

  • Navigated pressure system ensure the print go smoothly through the belt to avoid any curing problem.

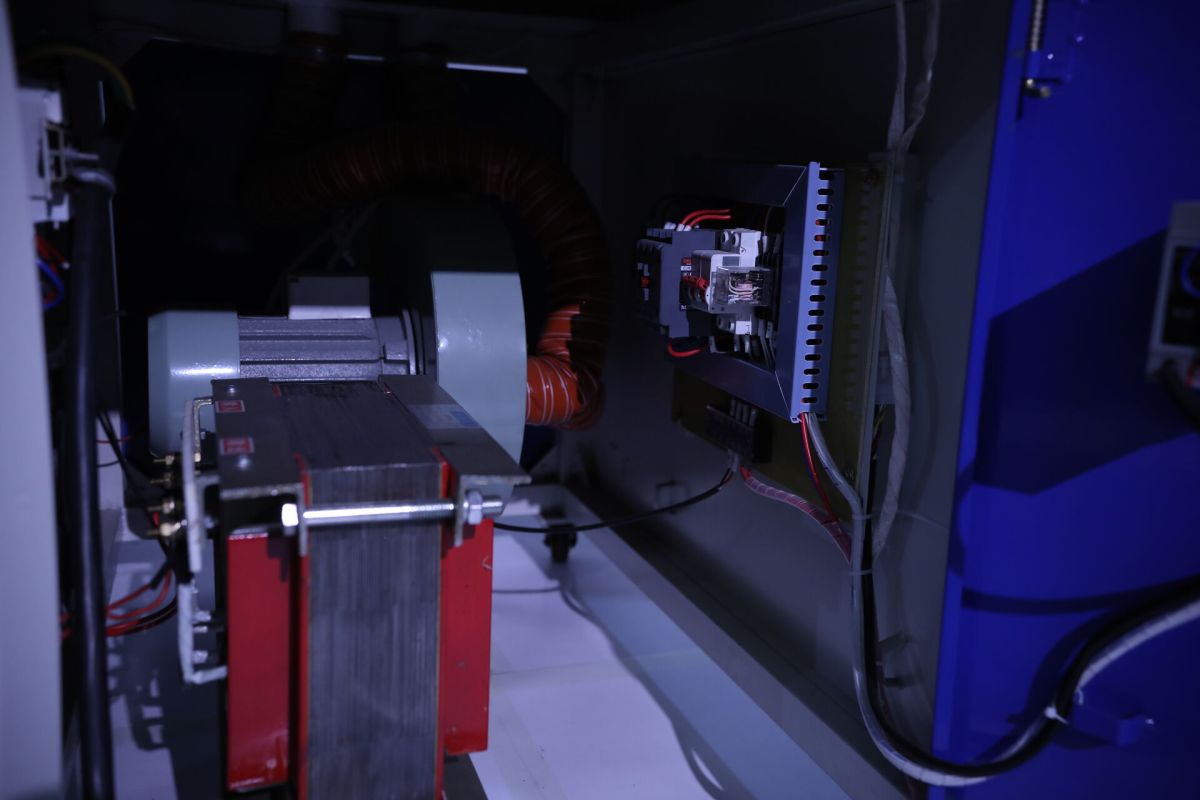

  • CE standard wiring system , guarantee the machine safe and long life span.

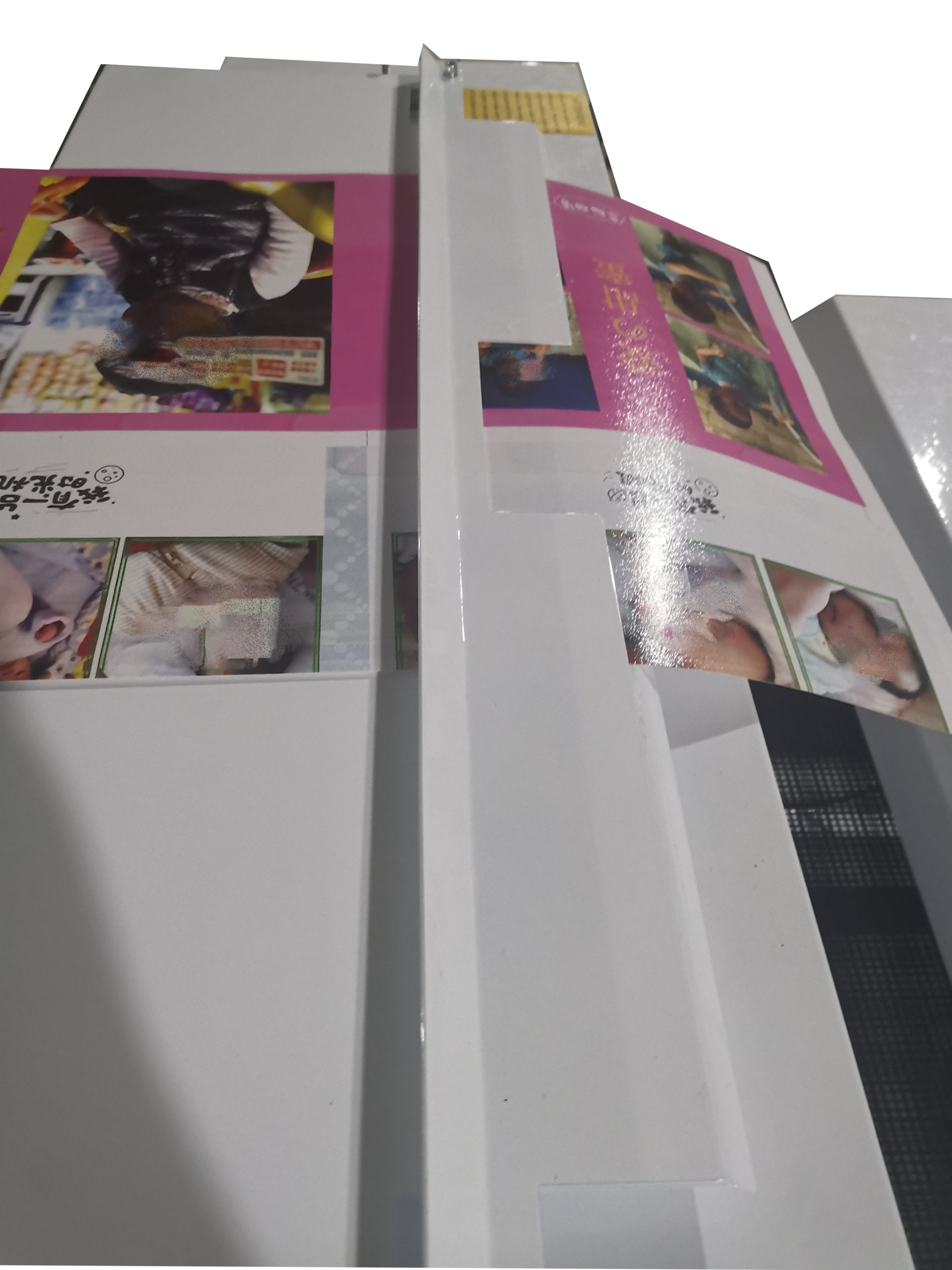

  • Paper stopper system ensures the photo paper come out smoothly and neatly.

  • Pump circuit system to make the liquid going circle smoothly and without any waste.

  • Belt diavation system avoid the belt going slide to increase its service life.

  • The light shade system can avoid the liquid splashes to operator.





Application

UV Coating is the most effective process you can apply to post-printed materials, allowing you to coat and cure right at the press. Applying an ultra-violet coating on printed pieces sustains their longevity against fading and yellowing that occurs as a result of sun damage. Even the varnish qualities of a UV coat itself can add to the durability of printed material, reducing tearing and increasing resistance to folding and creasing that can damage expensive marketing or promotional material. Plus the coating actually improves the appearance of the print as well. The glossy or matte finish of a UV finish enhances colors in the print, making colors brighter while making dark tones and blacks bolder and richer. Discover the quality advantages of UV Coating today with these awesome machines.
