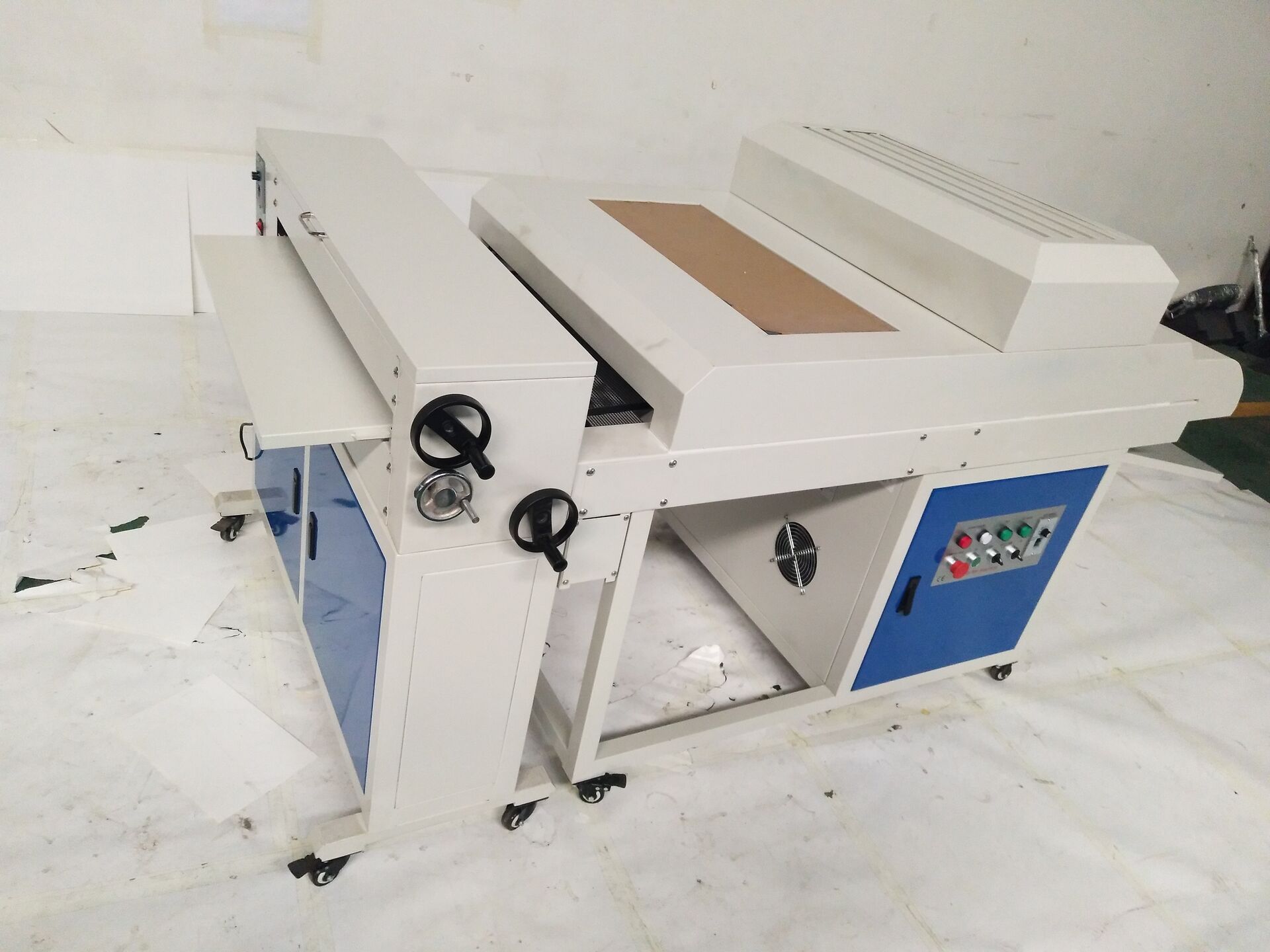

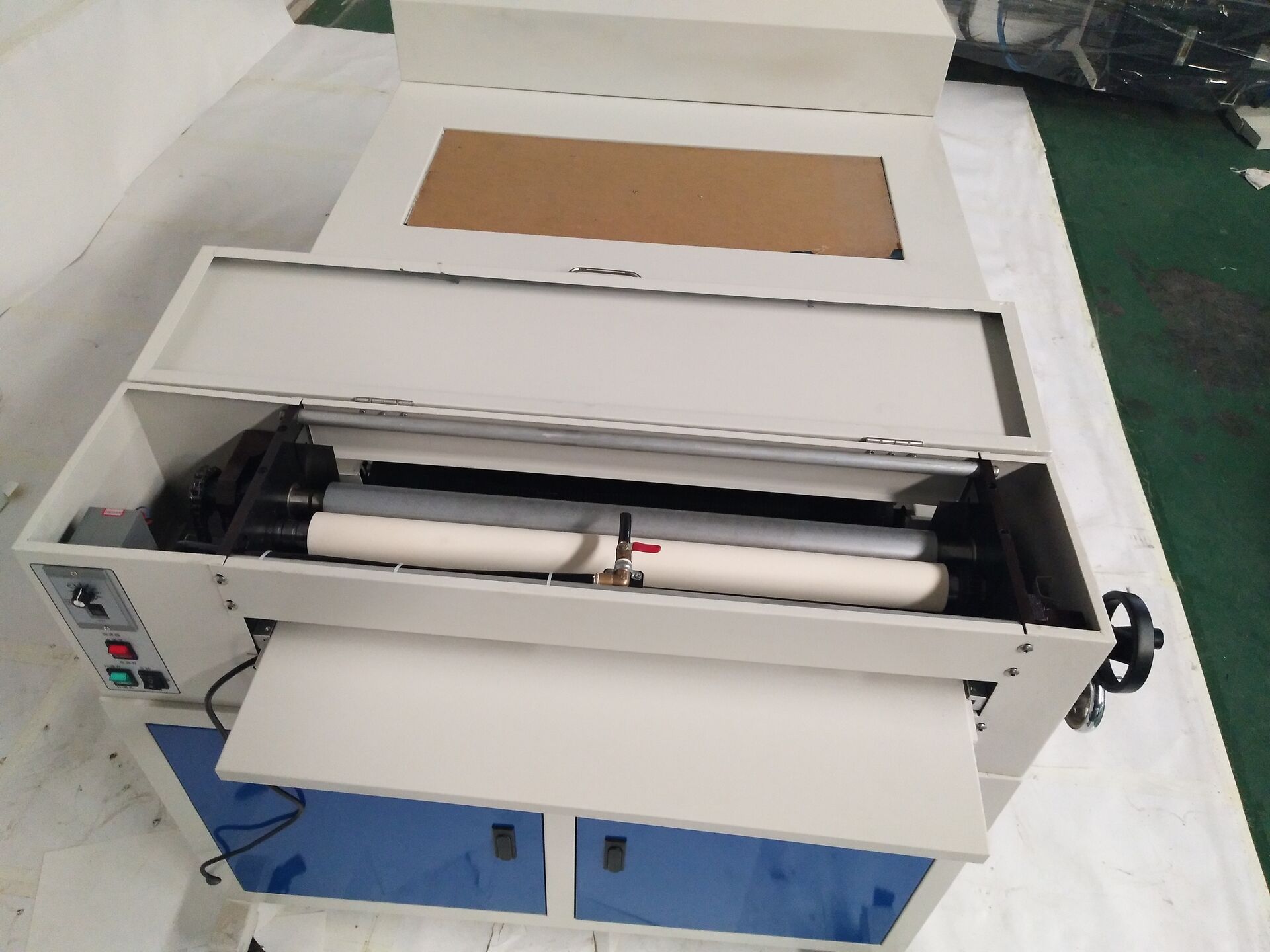

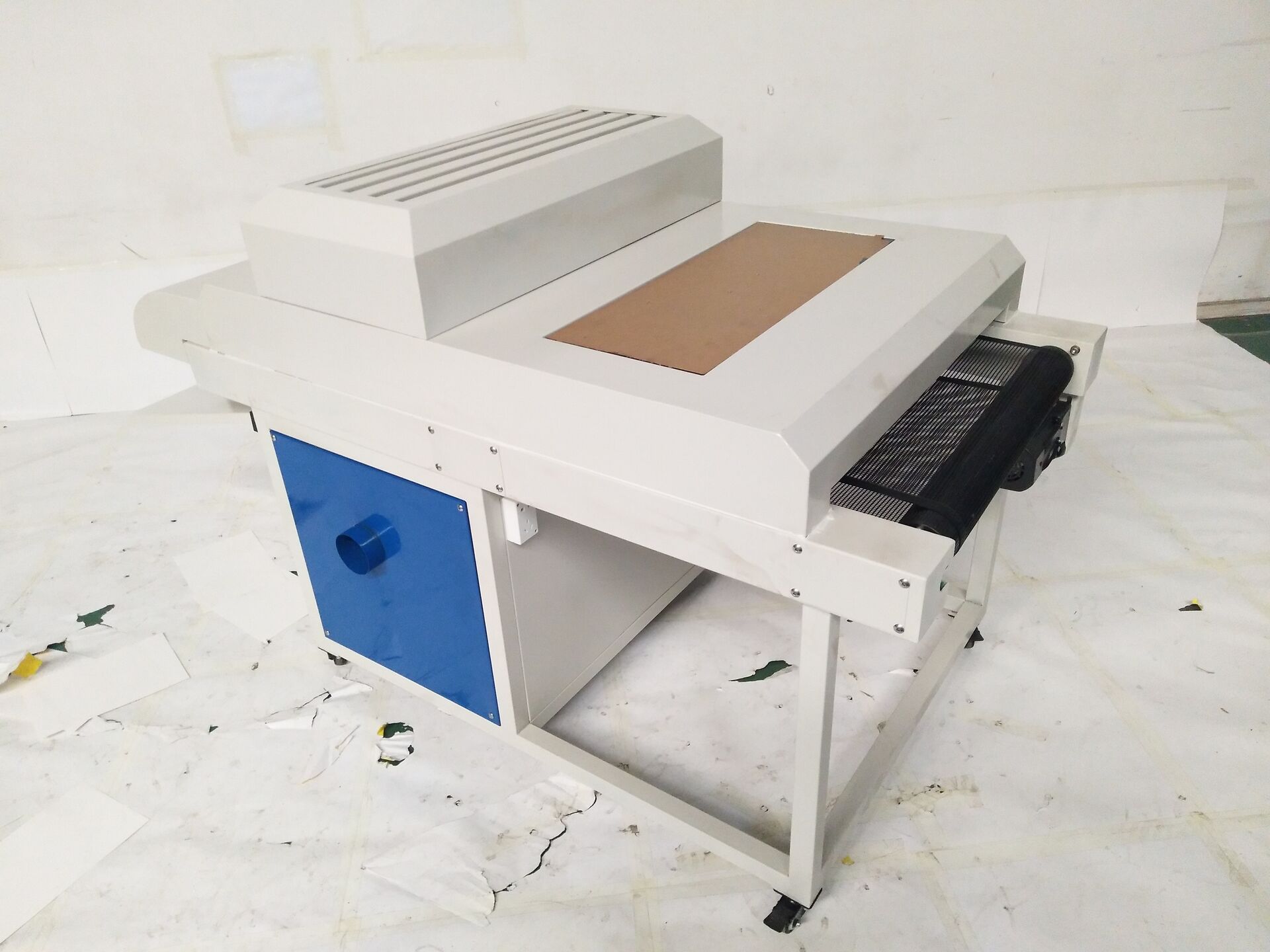

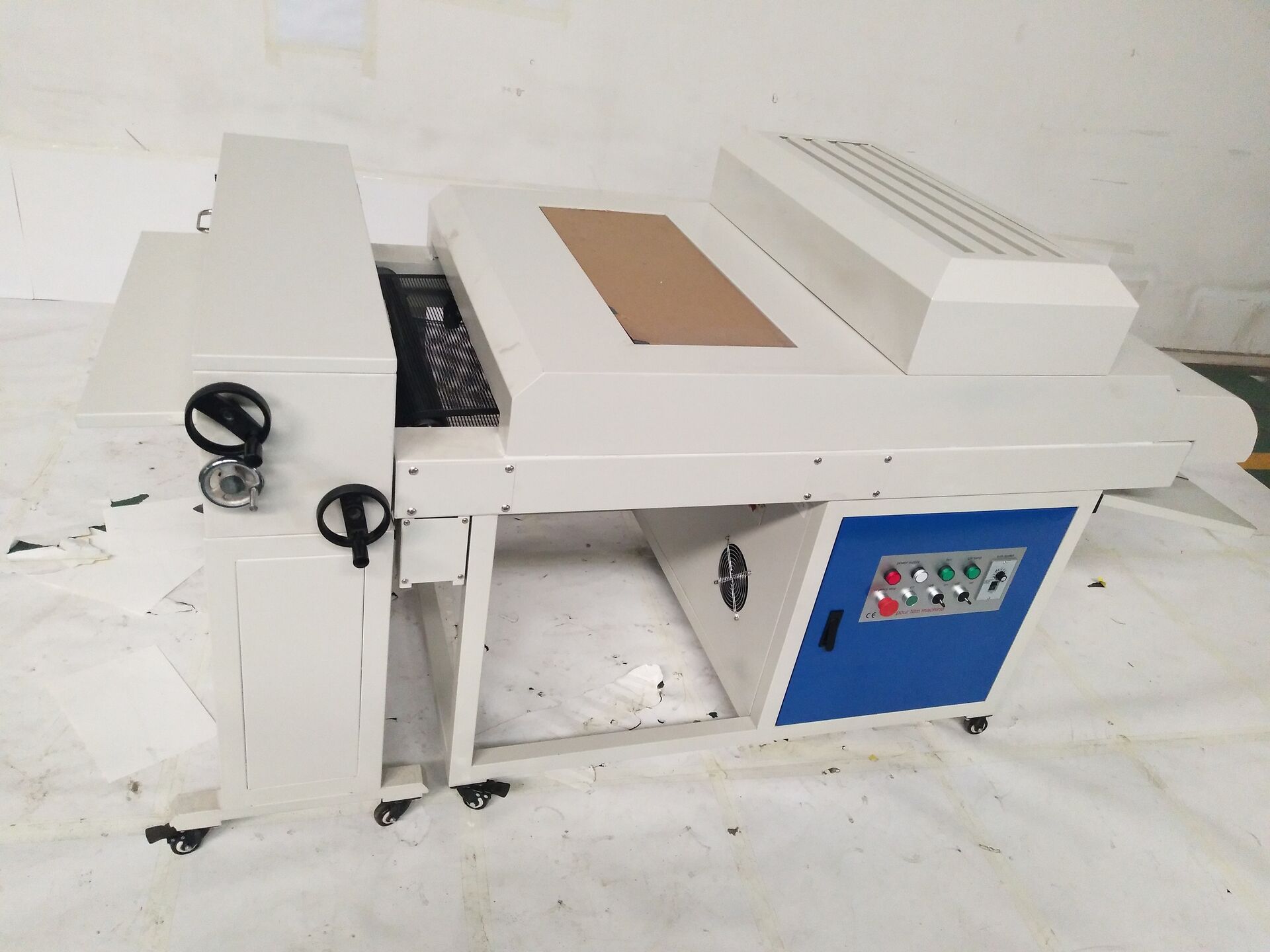

ST QH-Coat 18"(480mm) Texture UV Coater

Our UV coater should be an ideal solution partner for both digital press users and tranditional offset printer user. we make sure this machine gives your customer upgrade printing quality by perfect UV coating. Also Free standing Preheat-IR unit(Option) gives you a perfect solution for wax based toner coating. Apply UV, Aqueous& Primer Coatings To A Wide Variety Of Substrates To Make Your Prints Stand Out.

STQH-Coat Series is a solution for applying texture designs on the coating image. It realize to change texture roller manually to save cost. It has a width range from 18”(48cm) to 36”(90cm).

Item Specifications
Size: 18" (48cm) Wide
Max Sheet: 18" (48cm) x Infinity
Sheet Thickness: 180-600 GSM
speed: 0--9m/min
Power: 220V, 2Ph, 50Hz/60Hz
Curing : UV

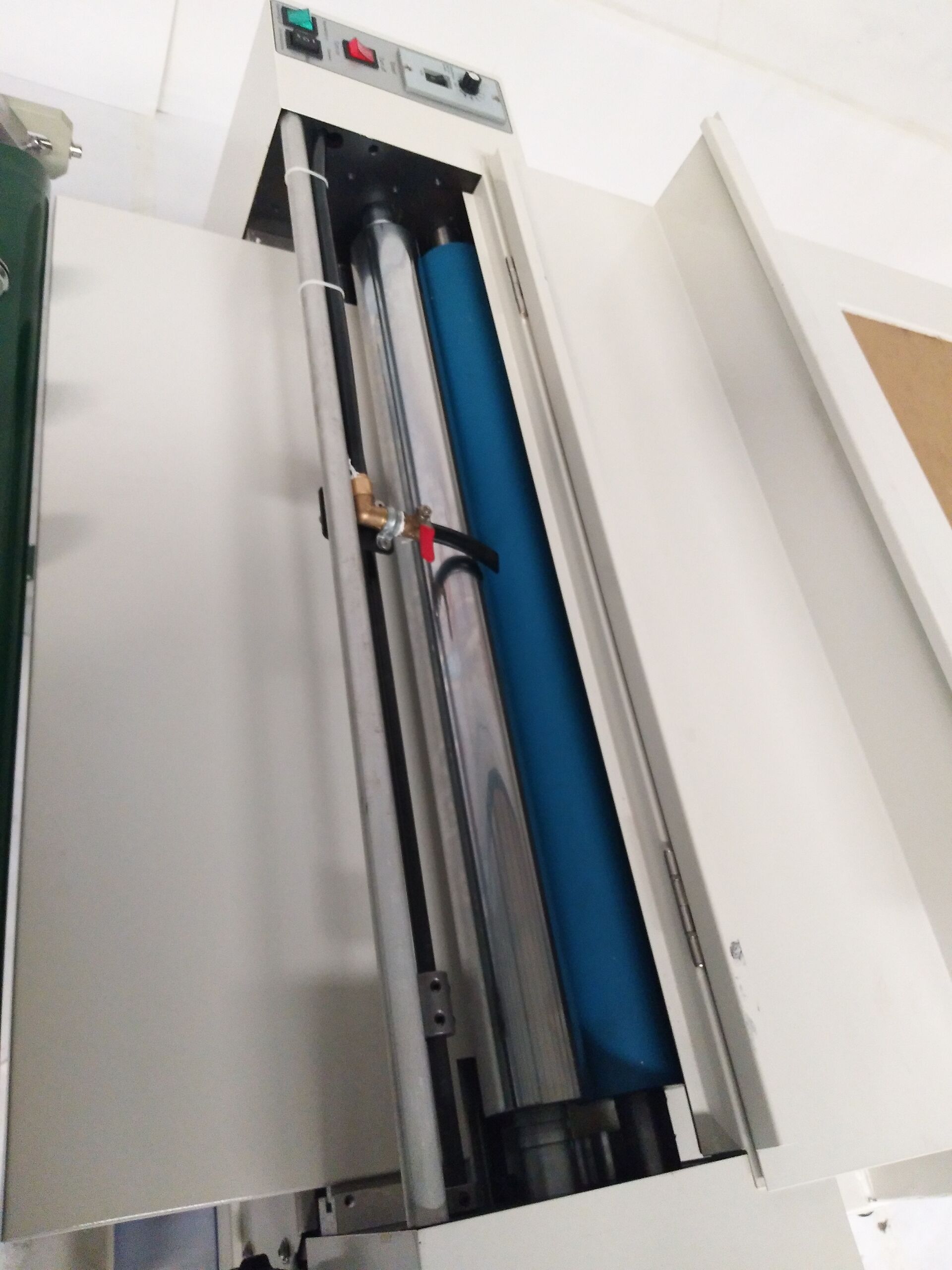

Texture: self-choosing changeable single texture roller
Compatibility: traditional off print

Request A Quote

 INQUIRY

WhatsAPP



Related Products



Product Description

	QH-Coat 18" (480mm)UV Coater	QH-Coat 24" (650mm)UV Coater	QH-Coat 36"(900mm)UV Coater	ST QH-Coat 18"(480mm) Texture UV Coater	MT QH-Coat 18"(480mm) Texture UV Coater	ST QH-Coat 24"(650mm) Texture UV Coater	MT QH-Coat 24"(650mm) Texture UV Coater	ST QH-Coat 36"(900mm) Texture UV Coater
Max Coating Width	18" (480mm）	24" (650mm)	36" (900mm)	18" (480mm）	18" (480mm）	24" (650mm)	24" (650mm)	36" (900mm)
Min Material Thickness	180g	180g	180g	180g	180g	24" (650mm)	180g	180g
Max Material Thickness	800G	800G/300G	300G	800G	800G	180g	800G/300G	300G
Speed	0-9m/min	0-9m/min	0-9m/min	0-9m/min	0-9m/min	800G/300G	0-9m/min	0-9m/min
Curing Way	UV Lamp	UV Lamp	UV Lamp	UV Lamp	UV Lamp	UV Lamp	UV Lamp	UV Lamp
Feeding Way	manual	manual	manual	manual	manual	manual	manual	manual
Effect	Glossy/Matt	Glossy/Matt	Glossy/Matt	plain or texture	plain or texture	plain or texture	plain or texture	plain or texture
texture effect	Optional	Optional	Optional	single changable texture roller	5 texture rollers	single changable texture roller	5 texture rollers	single changable texture roller
Feeder	optional	optional	optional	optional	optional	optional	optional	optional
Stacker	optional	optional	optional	optional	optional	optional	optional	optional
Corona	optional	optional	optional	optional	optional	optional	optional	optional
Lamp No.	1 piece	1 piece	1 piece	1 piece	1 piece	1 piece	1 piece	1 piece
Power	2500w	3500w	3500w	2500w	2500w	3500w	3500w	3500w
Weight(With Package)	250kg	350kg	465kg	250kg	290kg	350kg	390kg	465kg
Dimension(With Package)	92130132cm	112200132cm	140200132cm	92130132cm	92130132cm	112200132cm	112200132cm	140200132cm
Key Point	Standard type, Compact size	Standard type, Universal size	Standard type, Bigger size	Economic texture coating， Compact size	Compact size， 5 texture roller in one machine	Economic texture coating， Universal size	Universal size， 5 texture roller in one machine	Economic texture coating， bigger size



Main Characteristics

◆ The machine is free of cleaning, and can supplementing the uv liquid automatically

◆ The device of powering off automatically when the temperature is too high, the operation is safe

◆ The drying speed is very fast

◆ The finished print can be of high rigidity and high glossy or matt

◆ The chain wheel on the equipment can realize operating at different locations. The conveyor belt is of high quality

◆ superior lamp, lamp room which exert heat forcefully to prolong the life span by the heat

◆ The coat is low about 0.2-1yuan, and the thickness of UV can be changeable.



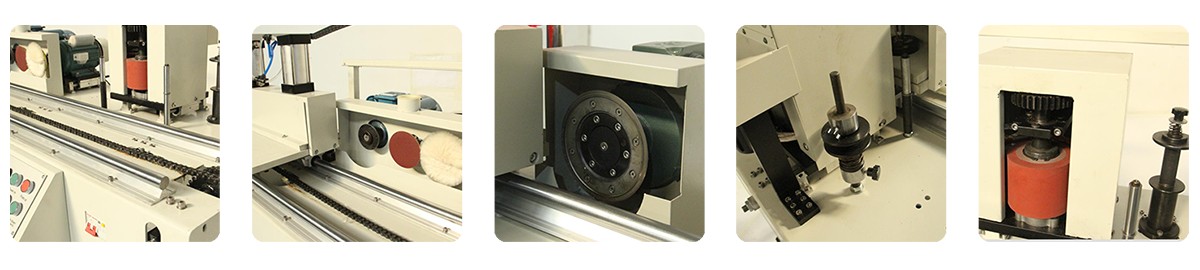

Accessories and Advantage

ALLOY KNIFE ROUND CUTTING
Imported Alloy knife make sure the album edge smooth after cutting 64

POL ISHING AND DUST COLLECTION
Polishing and dust collection before gilding,make sure the album edge surface smooth and without dust 59

RUBBER ROLLER AND HEATING PLATES
High quality rubber roller to ensure the transterring clearly with strong effect 58

REWINDING SYSTEM
the strong rewinding system to ensure the bronzing finish roll collct correctly 60

EASY MAINTAINANCE
Main motor and gilding motor is contolled separately, gilding rller automatic stop and cooling function .80 and 90



Application

UV Coating is the most effective process you can apply to post-printed materials, allowing you to coat and cure right at the press. Applying an ultra-violet coating on printed pieces sustains their longevity against fading and yellowing that occurs as a result of sun damage. Even the varnish qualities of a UV coat itself can add to the durability of printed material, reducing tearing and increasing resistance to folding and creasing that can damage expensive marketing or promotional material. Plus the coating actually improves the appearance of the print as well. The glossy or matte finish of a UV finish enhances colors in the print, making colors brighter while making dark tones and blacks bolder and richer. Discover the quality advantages of UV Coating today with these awesome machines.
