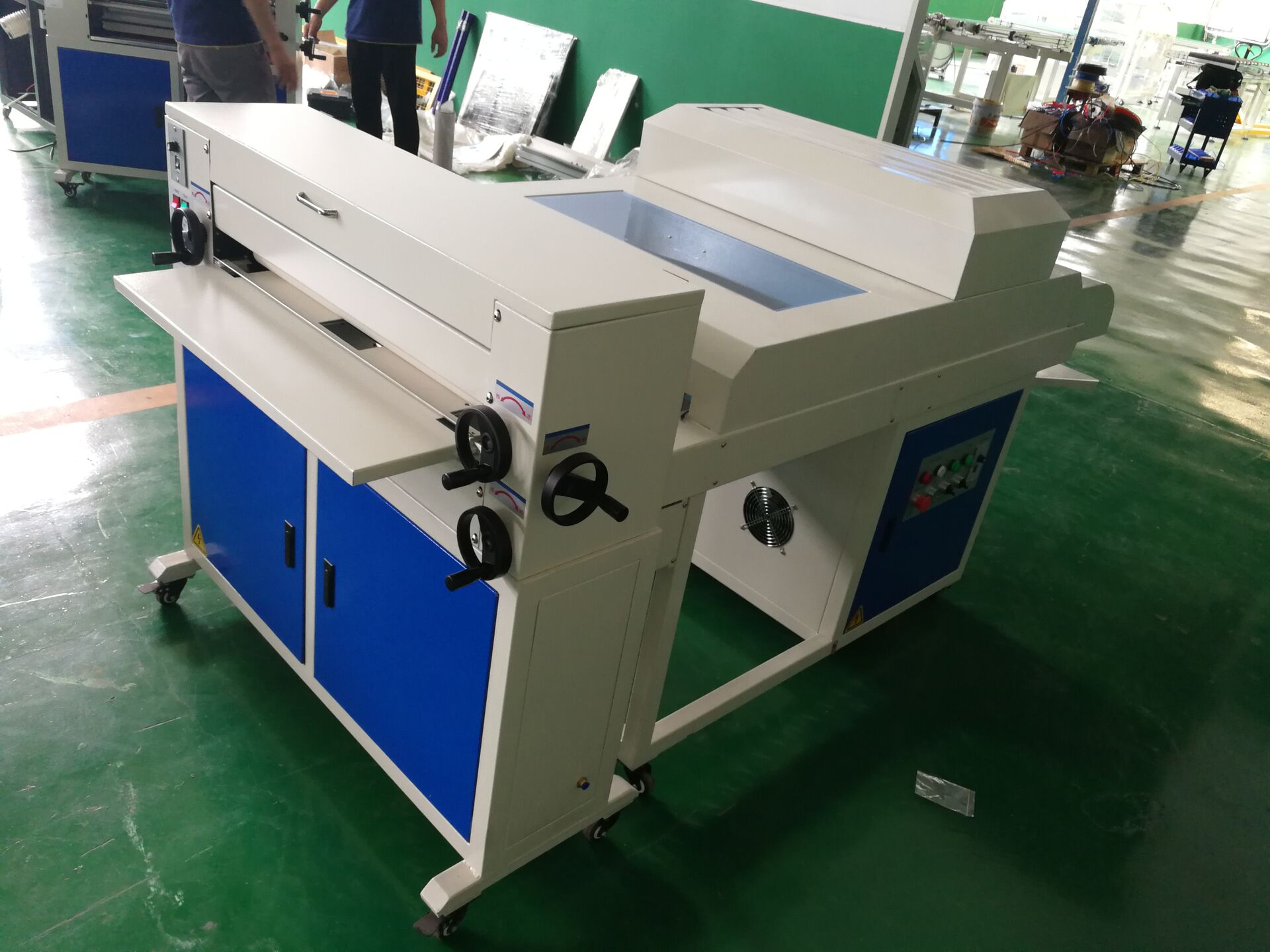

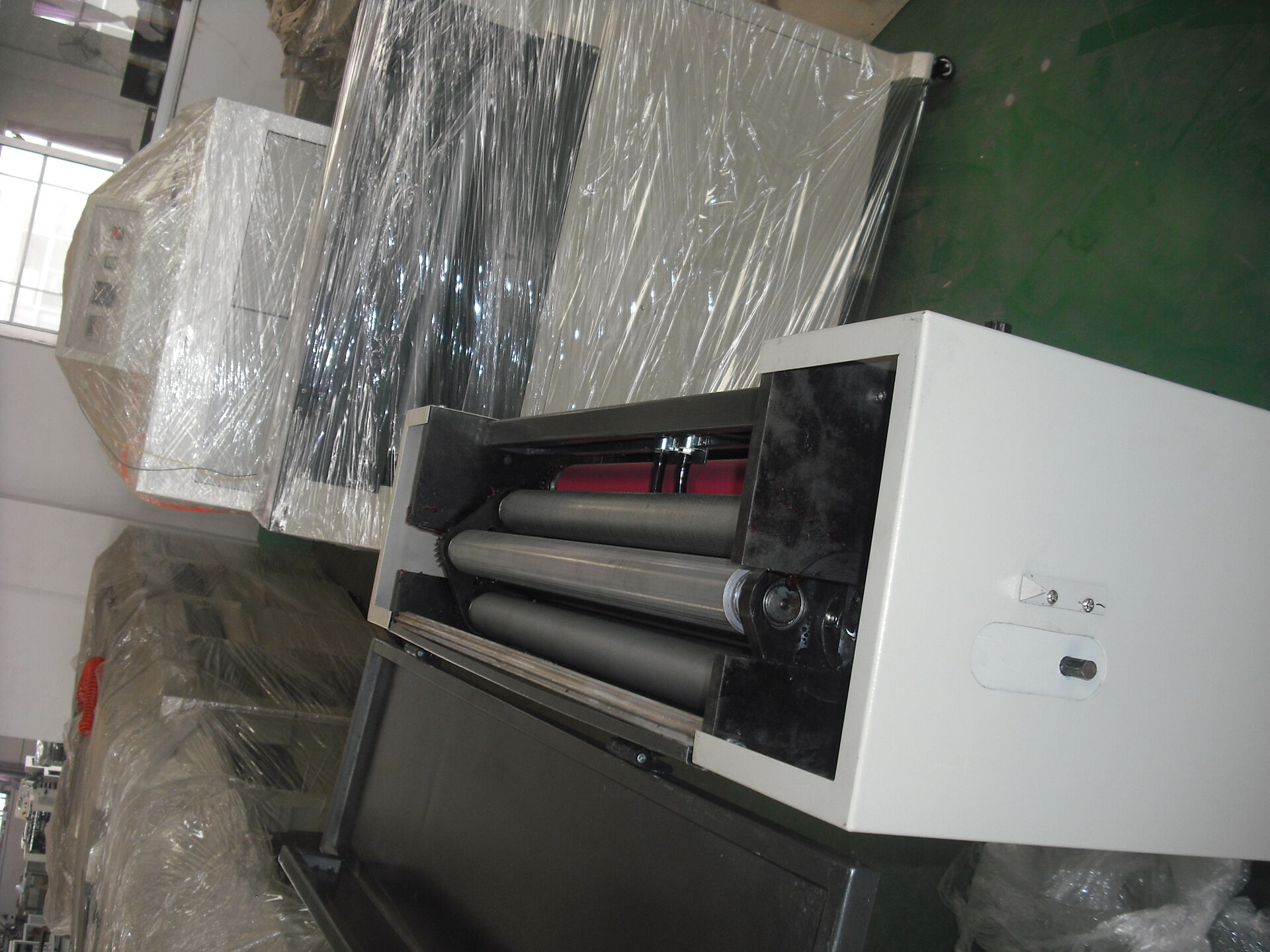

MTQH-Coat Series is a solution for applying texture designs on the coating image.There are 5 texture rollers on the machine, the user can change designs freely. It has a width range from 18”(48cm) to 24”(65cm).
Item Specifications
Size: 18" (48cm) Wide
Max Sheet: 18" (48cm) x Infinity
Sheet Thickness: 180-600 GSM
speed: 0--9m/min
Power: 220V, 2Ph, 50Hz/60Hz
Curing : UV
Texture: 5 texture rollers
Compatibility: traditional off print
Request A Quote
Related Products
MT QH-Coat 24"(650mm) Texture UV CoaterUV coater with texture rollers
5 rollers equipped
width: 65cm
ST QH-Coat 18"(480mm) Texture UV CoaterUV coater with texture rollers
5 rollers equipped
width: 48cm- ST QH-Coat 24"(650mm) Texture UV CoaterUV coater with texture rollers
easy changable texture roller
width: 65cm - ST QH-Coat 36"(900mm) Texture UV CoaterUV coater with texture rollers
easy changable texture roller
width: 90cm
Product Description
Main Characteristics
◆ The machine is free of cleaning, and can supplementing the uv liquid automatically
◆ The device of powering off automatically when the temperature is too high, the operation is safe
◆ The drying speed is very fast
◆ The finished print can be of high rigidity and high glossy or matt
◆ The chain wheel on the equipment can realize operating at different locations. The conveyor belt is of high quality
◆ Using superior lamp, lamp room which exert heat forcefully to prolong the life span by the heat
◆ The coat is low about 0.2-1yuan, and the thickness of UV can be changeable.

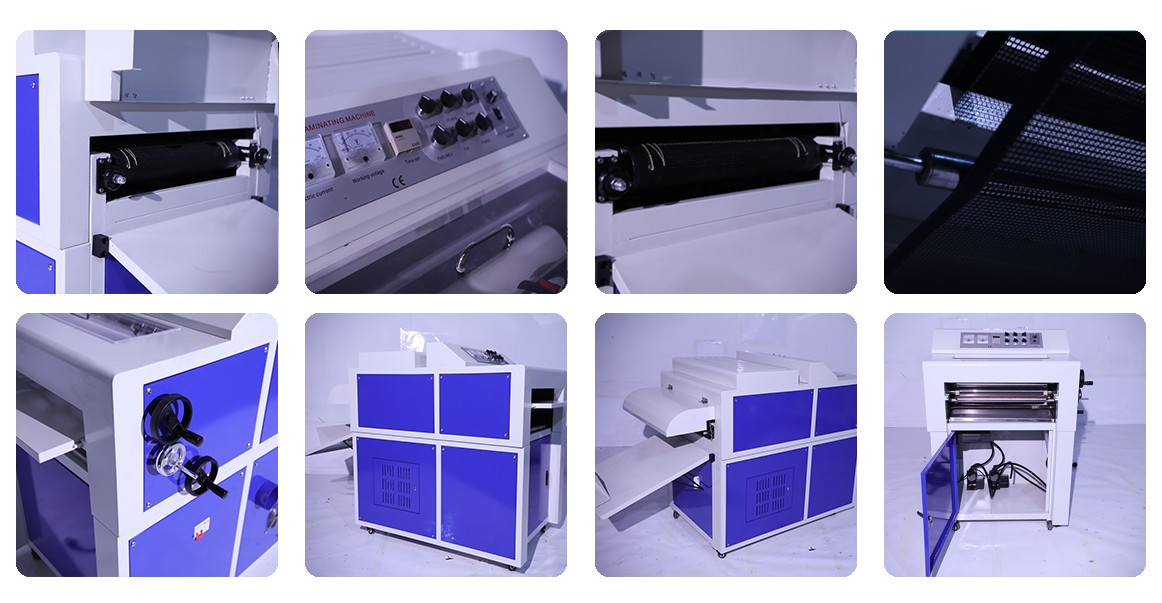

Accessories and Advantage
◆ Well-knit structure, less land occupation, convenient installation,easy to use
◆ High quality Nylon belt which can endure high temp and be flexible during the work
◆ 3 wheels for adjusting the material thickness, coating thickness and doctor blade to ensure the machine working in a perfect condition
◆ Navigated pressure system ensure the print go smoothly through the belt to avoid any curing problem
◆ Paper stopper system ensure the paper come out smoothly and neat.
◆ Pump circuit system to make the liquid going circle smoothly and without any waste on the liquid materials.
◆ Belt diavation system avoid the belt going slide to increase the life span for the belt
◆ The light shade system to avoid the liquid light come to the eyes, the operator is safe
Application
UV Coating is the most effective process you can apply to post-printed materials, allowing you to coat and cure right at the press. Applying an ultra-violet coating on printed pieces sustains their longevity against fading and yellowing that occurs as a result of sun damage. Even the varnish qualities of a UV coat itself can add to the durability of printed material, reducing tearing and increasing resistance to folding and creasing that can damage expensive marketing or promotional material. Plus the coating actually improves the appearance of the print as well. The glossy or matte finish of a UV finish enhances colors in the print, making colors brighter while making dark tones and blacks bolder and richer. Discover the quality advantages of UV Coating today with these awesome machines.
