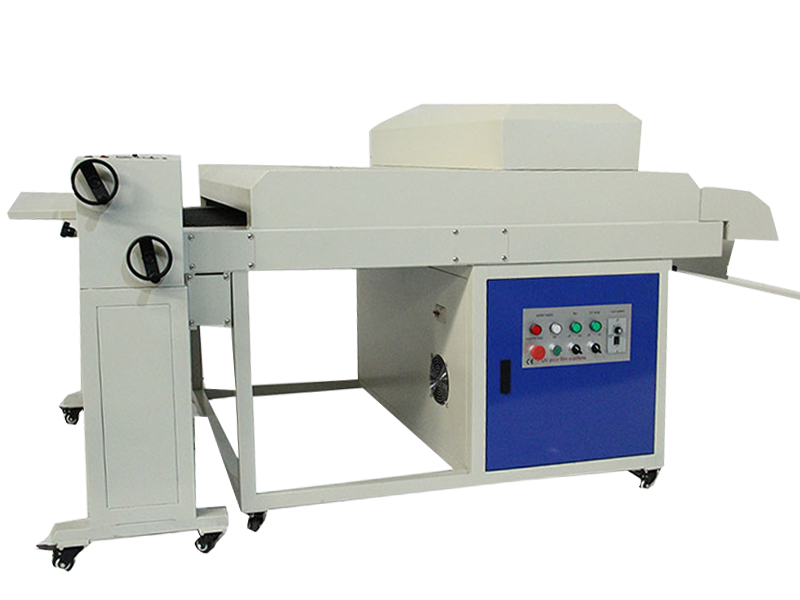

QH-Coat Series is for comparatively lager photo or image coating. Its coating capacity is bigger than QH-650 which reaches 900mm and also have good performance in speed and stability.
Item Specifications
Size: 36"(900mm) Wide
Max Sheet: 36"(900mm) x Infinity
Sheet Thickness: 180-600 GSM
speed: 0--9m/min
Power: 220V, 2Ph, 50Hz/60Hz
Curing : UV
Compatibility: traditional off print
Request A Quote
Related Products
PRO UV Coater 20（500mm）650mm width PRO UV Coater
Pro type, Universal size,
Speed： 24--30 m/min
sheet coating- PRO UVC Coater 20"（500mm）
Especially for digital print of Toner print
Corona with UV Coater
Width: 500mm
Speed: 24m/m
High-Quality, Affordable, and Versatile UV Coating Machine - Elevate Your Print Quality SQH-Coat 24"(650mm）UV Coater650mm width UV coater
With features especially for print shops，
Speed： 12--18m/min- QH-Coat 18"(480mm）UV Coater480mm width UV coater
Compact，Universal use，
Material Thickness: up to 10mm
Speed： 6--12m/min
Product Description
Main Characteristics
◆ The machine is free of cleaning, and can supplementing the uv liquid automatically
◆ The device of powering off automatically when the temperature is too high, the operation is safe
◆ The drying speed is very fast
◆ The finished print can be of high rigidity and high glossy or matt
◆ The chain wheel on the equipment can realize operating at different locations. The conveyor belt is of high quality
◆ Using superior lamp, lamp room which exert heat forcefully to prolong the life span by the heat
◆ The coat is low about 0.2-1yuan, and the thickness of UV can be changeable.
Accessories and Advantage
The machine with Larger coating width whose coating capacity reaches 36' inches (900mm) and easilly coating big advertisement paper, billboard paper and etc.

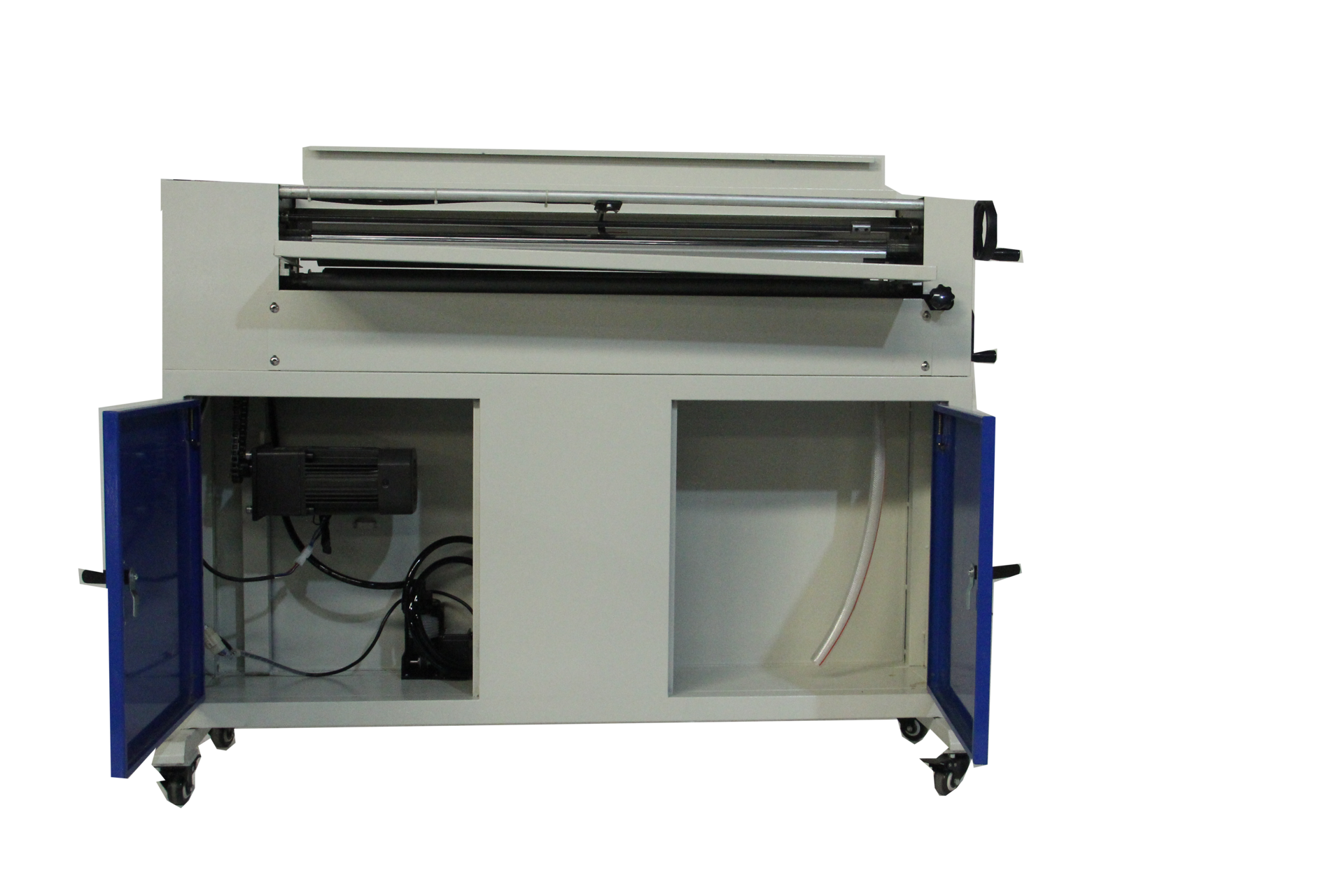

The machine was composed by two part, so we can use the body part freely as a dryer, and easy maintenance.
High quality Nylon belt which can endure high temp and be flexible during the work.
Wheels for adjusting the material thickness, coating thickness and doctor blade to ensure the machine working in a perfect condition.
Navigated pressure system ensure the print go smoothly through the belt to avoid any curing problem.

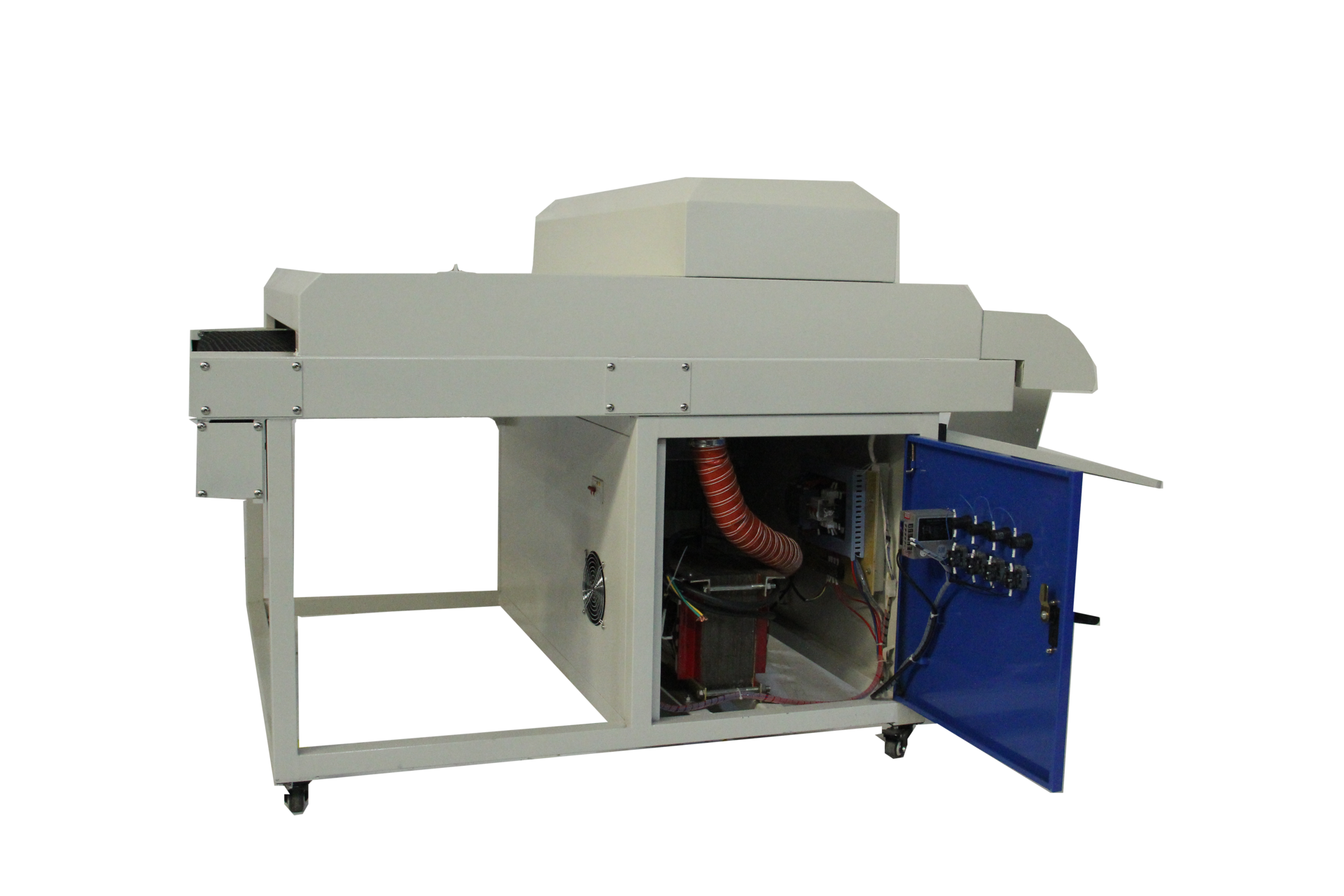

CE standard wiring system , guarantee the machine safe and long life span.
Paper stopper system ensures the photo paper come out smoothly and neatly.

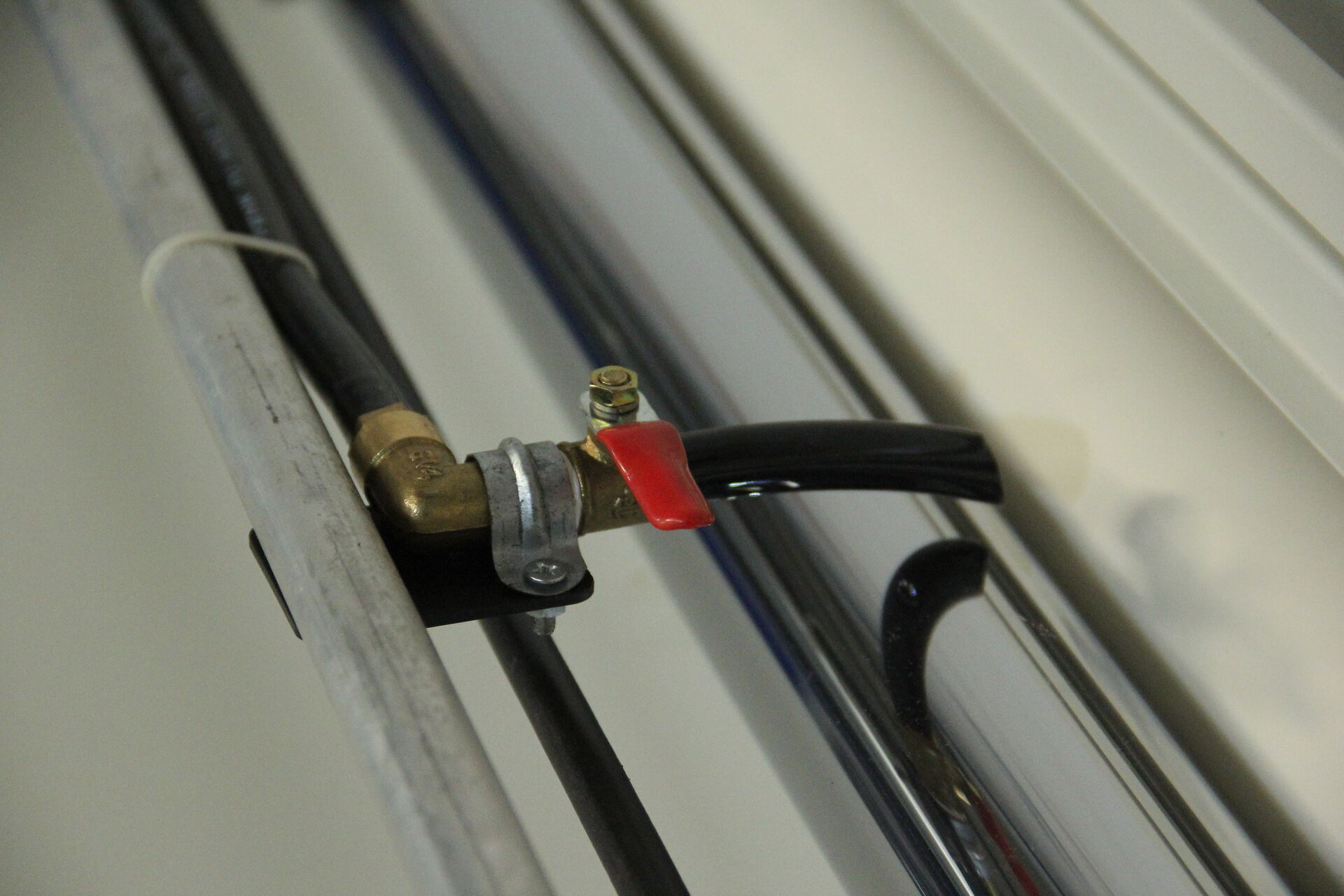

Pump circuit system to make the liquid going circle smoothly and without any waste.
Belt diavation system avoid the belt going slide to increase its service life.
The light shade system can avoid the liquid splashes to operator.
Application
UV Coating is the most effective process you can apply to post-printed materials, allowing you to coat and cure right at the press. Applying an ultra-violet coating on printed pieces sustains their longevity against fading and yellowing that occurs as a result of sun damage. Even the varnish qualities of a UV coat itself can add to the durability of printed material, reducing tearing and increasing resistance to folding and creasing that can damage expensive marketing or promotional material. Plus the coating actually improves the appearance of the print as well. The glossy or matte finish of a UV finish enhances colors in the print, making colors brighter while making dark tones and blacks bolder and richer. Discover the quality advantages of UV Coating today with these awesome machines.
