PRODUCT CATEGORY



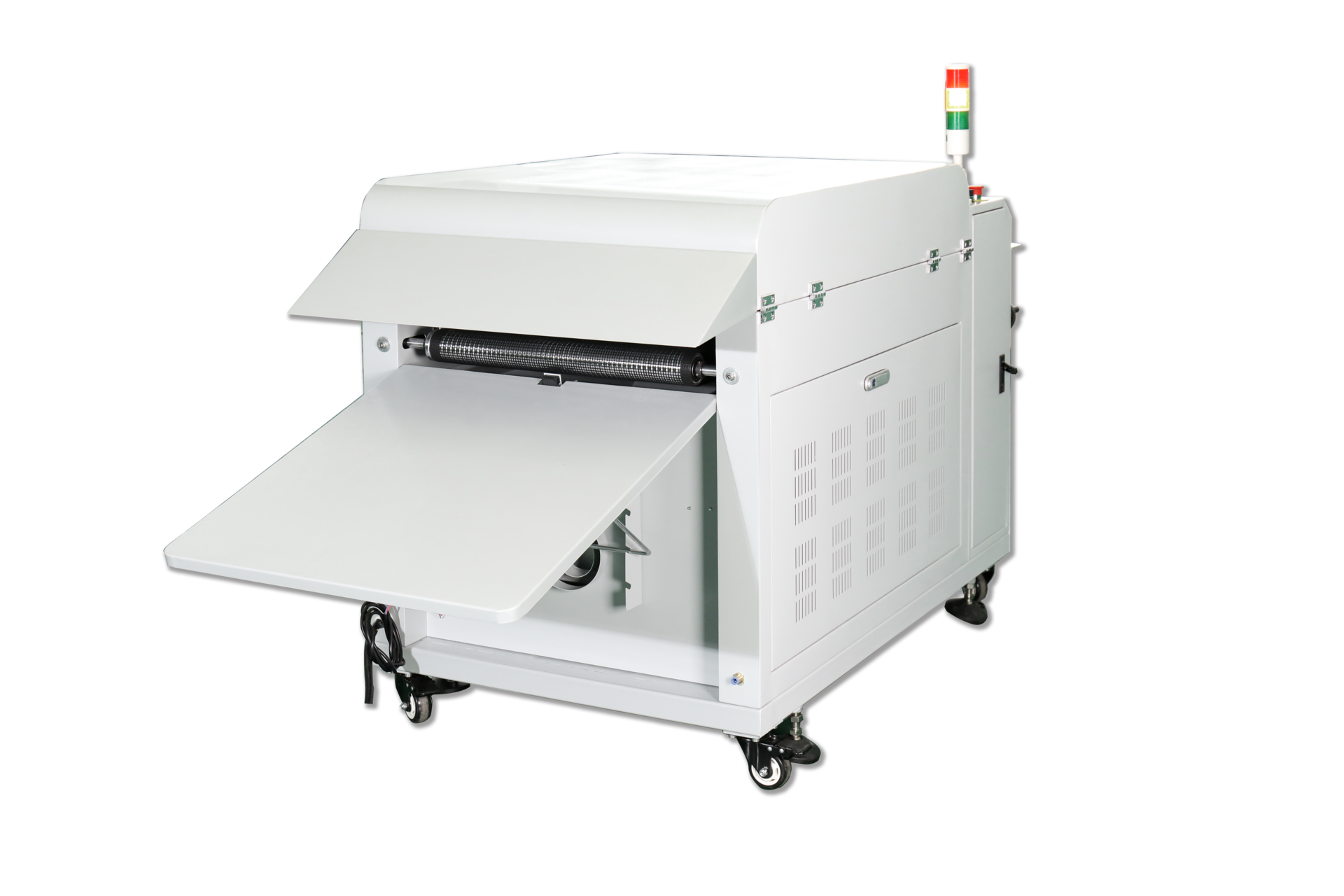

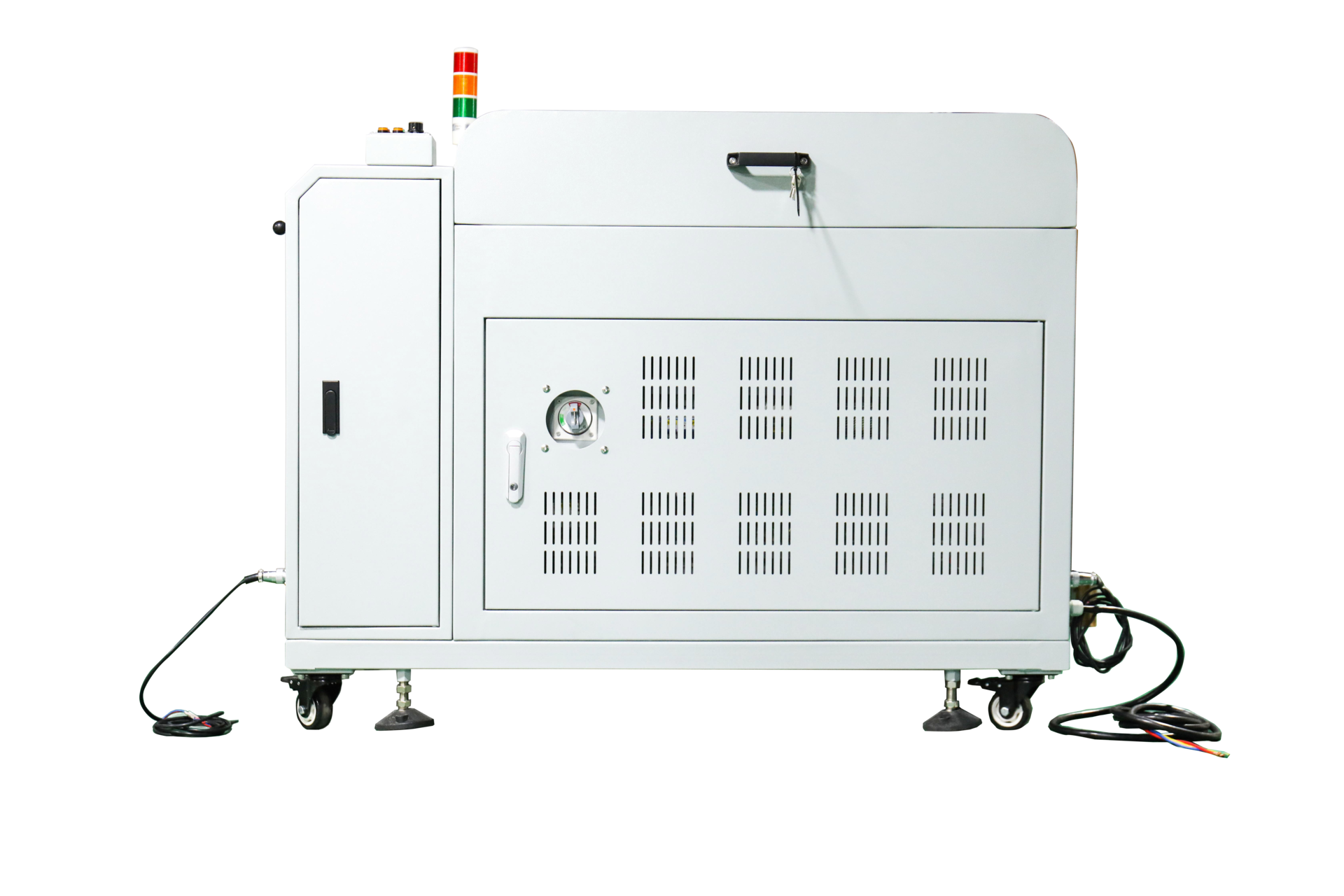

PRO UVC Coater 20"（500mm）

Pro type of the UV coater.
Connect with Corona to work with Digital Print.
Sophistic compact design, with a eash adjustment
Suit for High end market

Request A Quote

 INQUIRY



Related Products



Product Description

	PRO AQ Primer Coater 20"(500mm)	Auto PRO AQ Primer Coater 20"(500mm)	PRO AQC Primer Coater 20"(500mm)	PRO UV Coater 20"(500mm)	PRO UVC Coater 20"(500mm)	Auto PRO UV Coater 20"(500mm)
Max Width	20"(500mm)	20"(500mm)	20"(500mm)	20"(500mm)	20"(500mm)	20"(500mm)
Min Thickness	150g	150g	150g	150g	150g	150g
Max Thickness	600g	600g	600g	600g	600g	600g
Speed	0-30m/min	0-30m/min	0-30m/min	0-30m/min	0-30m/min	0-30m/min
Curing Way	IR Lamp	IR Lamp	IR Lamp	UV Lamp	UV Lamp	UV Lamp
Feeding Way	manual	auto	manual	manual	manual	auto
Glossy/Matt				Glossy/Matt	Glossy/Matt	Glossy/Matt
Corona	optional	optional	yes	optional	yes	optional
Power	6000w	4200w	8500w	3500w	8500w	4200w
Weight	350kg	580kg	350kg	350kg	350kg	580kg
Dimension	112200132cm	112200132cm107140132cm	112200132cm	112200132cm	112200132cm	112200132cm107140132cm
Key Point	Pro type,Primer coating,base coating,IR drying	Pro type, IR curing，Automatic	Pro type, with Corona, before printing	Pro type, Universal size	Pro type, with Corona, for toner print,	Pro type, UV curing，Automatic

◆ High-precision double-sheet detection, if two sheets are fed, it will automatically stop.

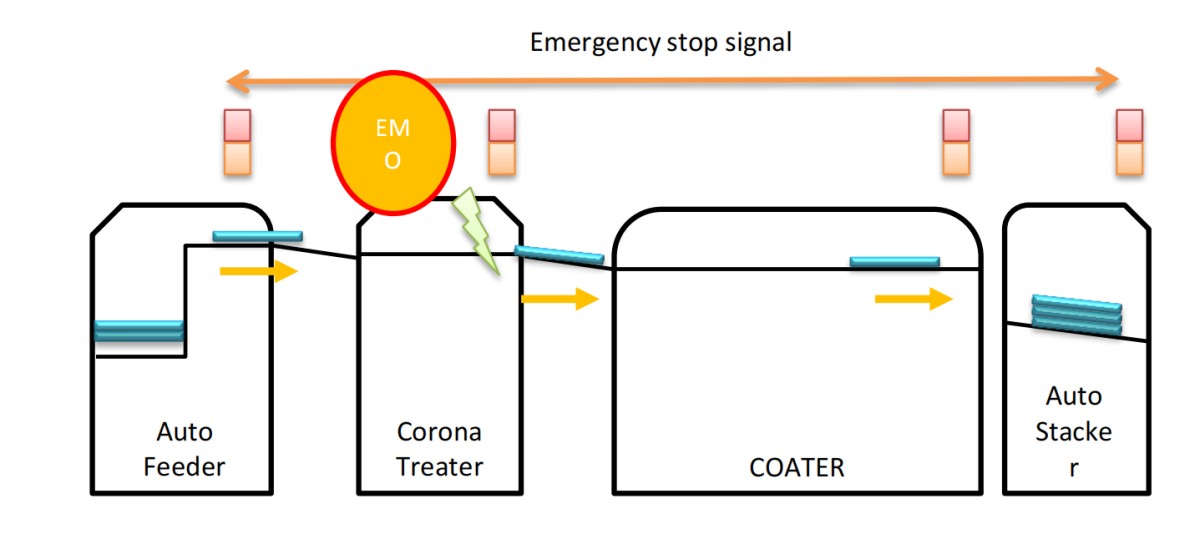

◆ The feeder connect with coater ， each unit， feeder， corona， coater， stacker can be together or seperated.

◆ The UV lamp can be adjusted from 0 to 6000 watts, with adjustable power and stepless adjustment.

◆ If the paper can not come out within a limited time, the machine will automatically alarm, and then stop to avoid accidents

◆ The fastest speed is 25 meters, and the stable work is 20 meters.

◆ Aim for Dedicated high end market with close design and easy operation.

◆ Equipped with Corona to treat with Didital print(which with toner print)

◆ Working with UV and IR together






