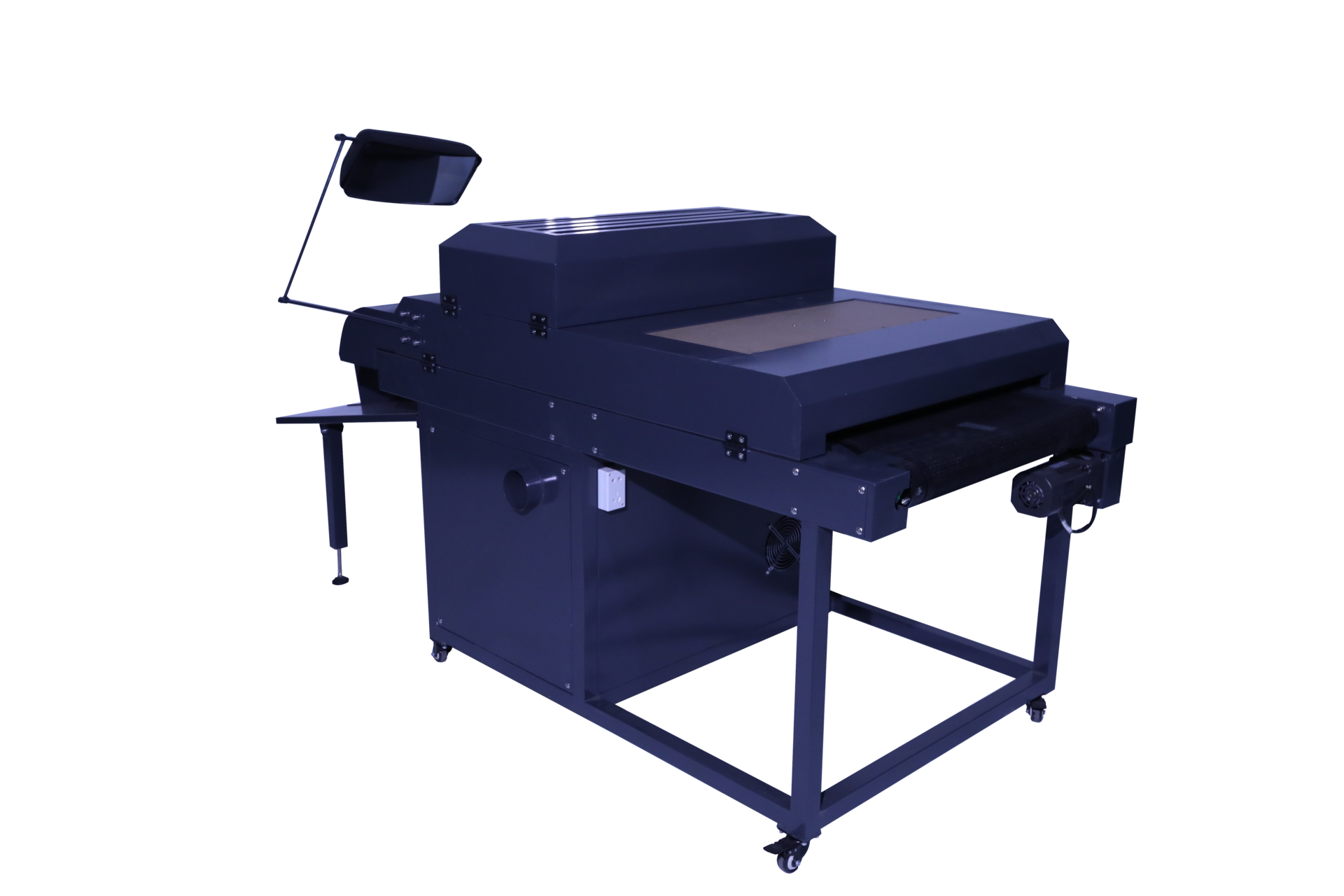

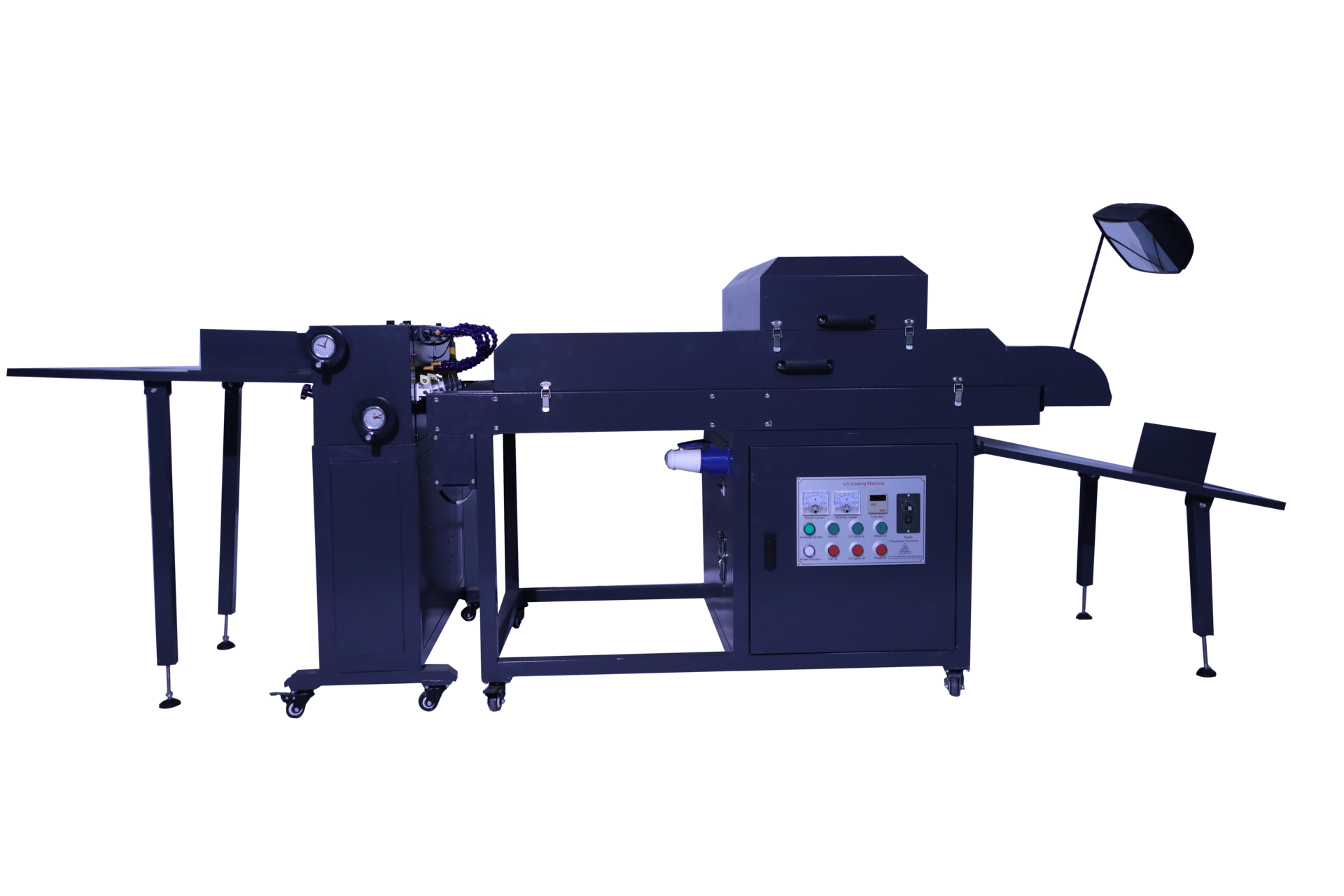

Discover the exceptional capabilities of our SQH Series, a range of sheet UV coating machines that strike the perfect balance between affordability and superior performance. Designed to meet the diverse needs of print shops, this series offers a remarkable coating solution at an attractive price point.
Item Specifications
Size: 24"(650mm) Wide
Max Sheet: 24"(650mm) x Infinity
Sheet Thickness: 180-600 GSM
speed: 0--18m/min
Power: 220V, 2Ph, 50Hz/60Hz
Curing : UV
Compatibility: traditional off print
Request A Quote
Related Products
PRO UV Coater 20（500mm）650mm width PRO UV Coater
Pro type, Universal size,
Speed： 24--30 m/min
sheet coating
PRO UVC Coater 20"（500mm）Especially for digital print of Toner print
Corona with UV Coater
Width: 500mm
Speed: 24m/m
- QH-Coat 18"(480mm）UV Coater480mm width UV coater
Compact，Universal use，
Material Thickness: up to 10mm
Speed： 6--12m/min - Affordable Excellence: QH 650 UV Coating Machine - Elevate Your Print Finishes QH-Coat 24"(650mm）UV Coater650mm width UV coater
Compact，Universal use，
Speed： 6--12m/min

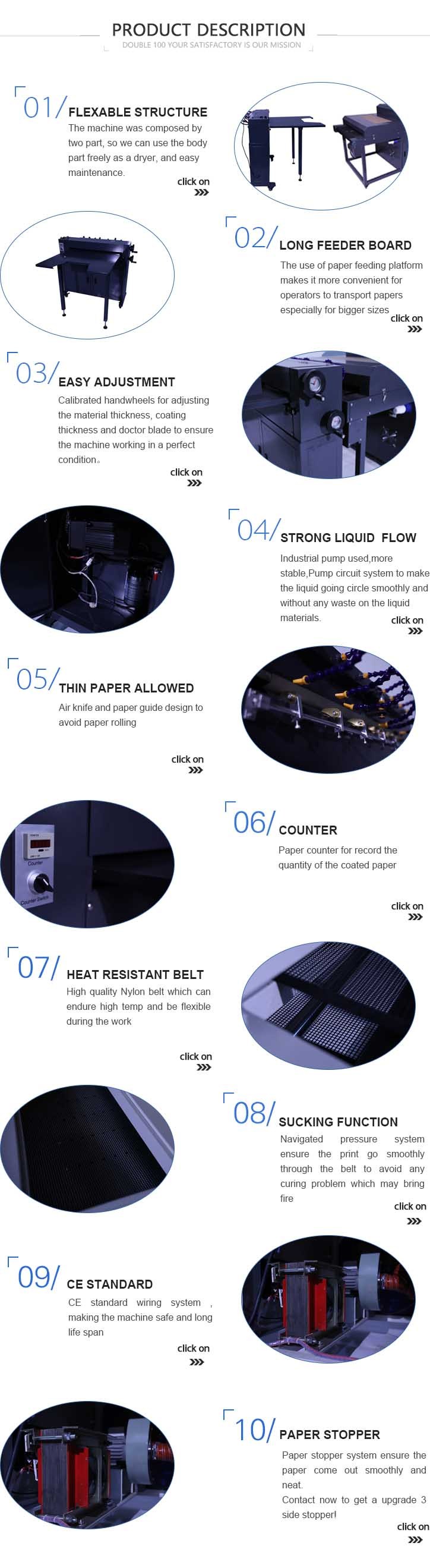

Product Description
Main Characteristics
Advanced Coating Technology:
Our SQH Series utilizes advanced UV coating technology to deliver outstanding results, ensuring prints are vibrant, durable, and visually captivating.
Enhanced Productivity:
With a high-speed operation of up to 18m/min, the SQH Series enables efficient production, reducing turnaround time and maximizing output.
Versatile Coating Options:
Achieve desired effects with adjustable UV thickness, allowing for flexible coating applications. Whether you prefer a high-gloss or matte finish, the SQH Series caters to your specific needs.
Automatic Liquid Supplementation:
Say goodbye to manual monitoring and adjustments. The SQH Series features an automatic liquid supplementation system, ensuring a continuous and hassle-free coating process.
Fast Drying Capability:
Benefit from rapid drying times, ensuring quick turnaround and improved productivity for your print projects.
Exceptional Print Quality:
Experience high rigidity and excellent gloss or matte finishes with every print. The SQH Series ensures exceptional print quality that meets the highest standards.
Flexible Operation:
The SQH Series incorporates a chain wheel system, allowing for easy operation at different locations. The conveyor belt is of high quality, ensuring smooth and reliable transportation of sheets.
Long-Lasting Performance:
Built with superior lamp technology and a heat-exerting lamp room, our machines prolong the lifespan of the lamps, delivering consistent and reliable performance over time.
Cost-Effective:
Despite its advanced features, the SQH Series offers an excellent value proposition. With a competitive price point, it provides a cost-effective solution for businesses seeking professional UV coating capabilities.
Accessories and Advantage
Designed Long Feeding Board:
The SQH Series UV coating machine features a specially designed long feeding board that facilitates easy operation for both large and small paper sizes. This extended feeding board provides ample space for smooth and precise paper feeding, accommodating a wide range of sheet sizes.

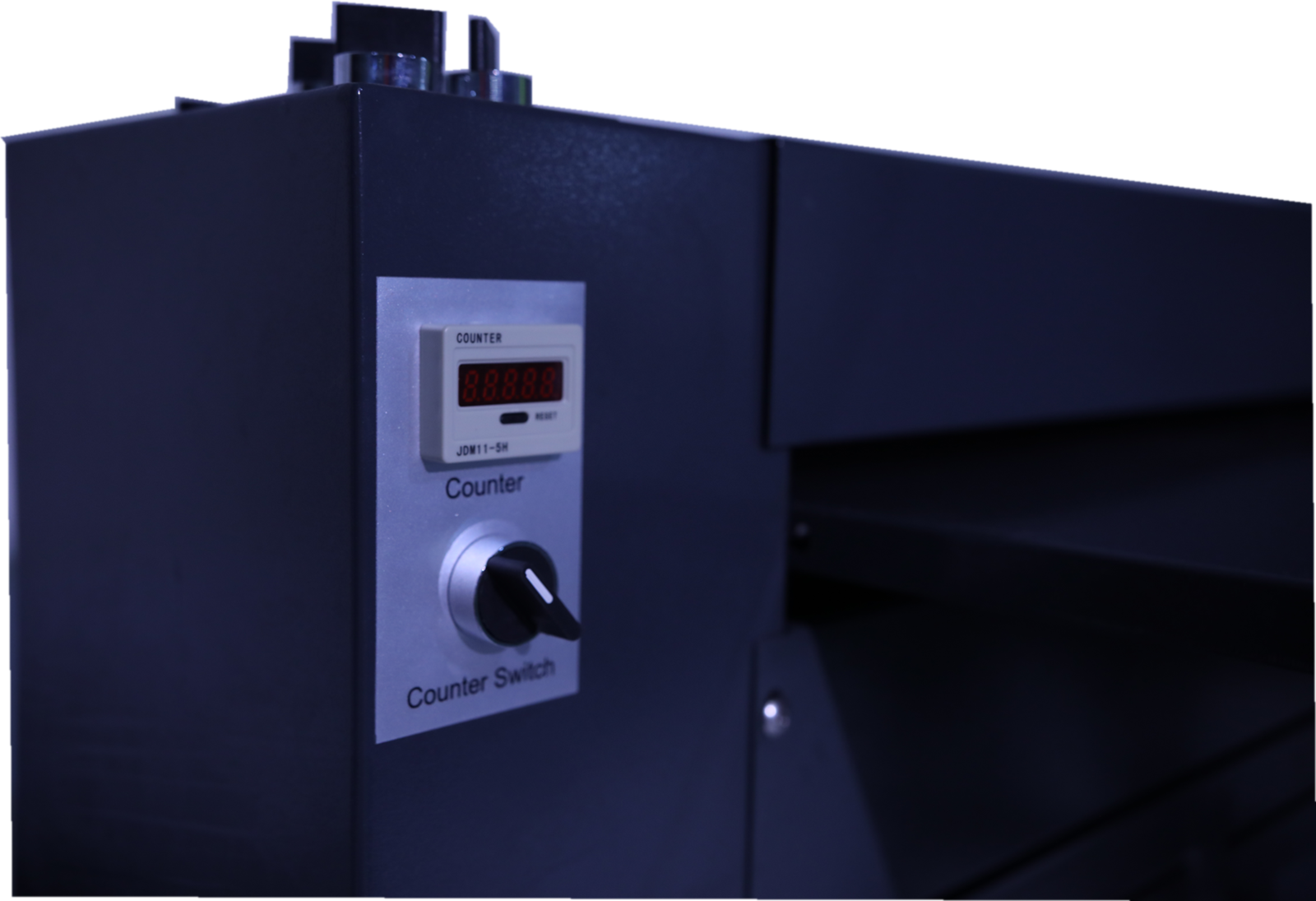

Paper Counter Panel:
The paper counter panel accurately displays the quantity of coated paper, allowing for easy tracking and monitoring.

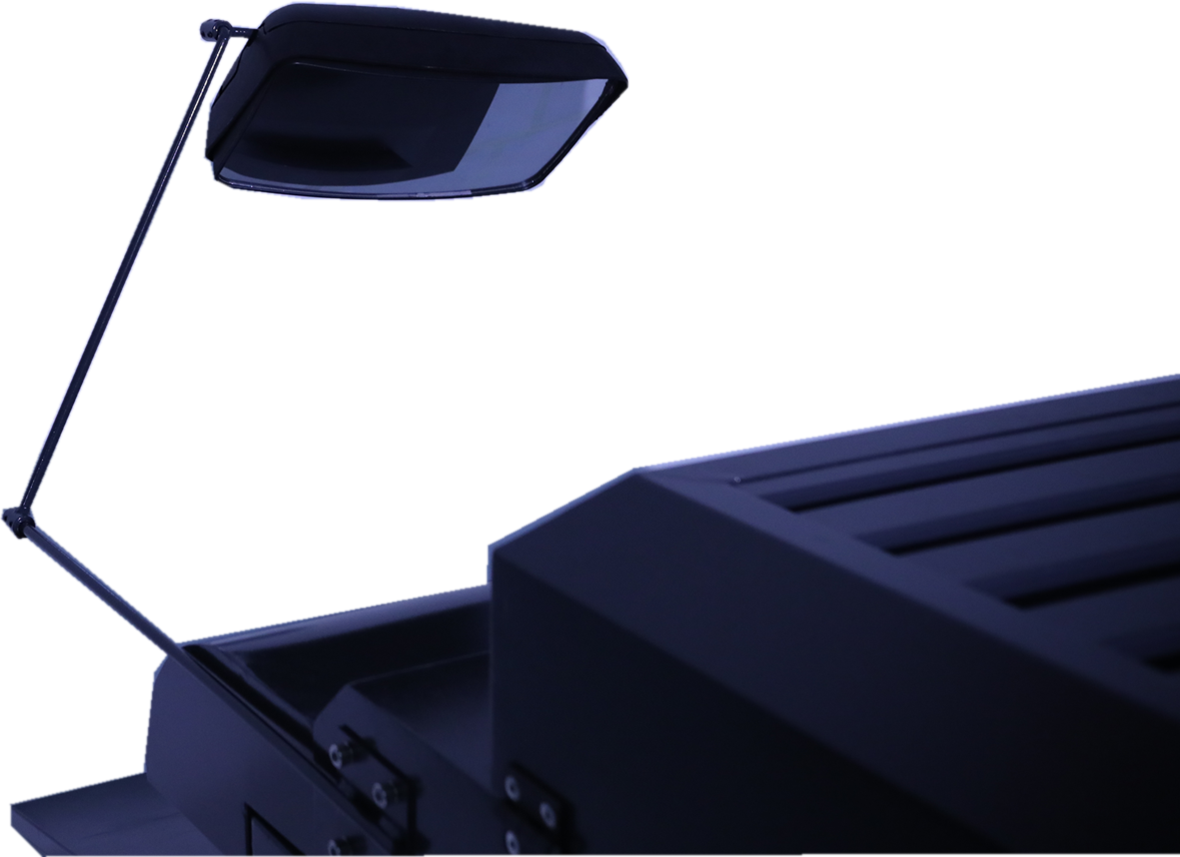

Mirrors for Safety:
The machine is designed with strategically placed mirrors that allow operators to monitor the paper outcome condition and observe the coating process. These mirrors ensure operator safety by providing clear visibility without the need for direct contact with the machine.
Anti-Rolling Function:
The SQH Series UV coating machine is equipped with an anti-rolling function, ensuring stability and preventing material roll-ups during production. This feature enhances safety and helps maintain a smooth workflow.
Seamless Integration with Feeder and Stacker:
The SQH Series UV coating machine is designed to seamlessly connect with a feeder and stacker system, enabling automation in the coating process.
Adjustable Wheels:
The machine features adjustable wheels, allowing precise adjustments of material thickness, coating thickness, and doctor blade to ensure optimal coating results.
High-Quality Nylon Belt:
Equipped with a high-quality nylon belt, the machine can endure high temperatures and remains flexible during operation, ensuring reliable and consistent performance.
Navigated Pressure System:
The navigated pressure system ensures smooth passage of prints through the belt, preventing curing issues and ensuring excellent coating quality.
CE Standard Wiring System:
The machine is built with a CE standard wiring system, guaranteeing safety and a long lifespan.
Paper Stopper System:
The paper stopper system ensures smooth and neat output of coated paper, maintaining the integrity of the prints.
Pump Circuit System:
The pump circuit system enables smooth and efficient circulation of the coating liquid, minimizing waste and ensuring consistent coating quality.
Belt Deviation System:
With a belt deviation system, the machine prevents belt slippage, prolonging the service life of the belt.
Light Shade System:
The machine incorporates a light shade system that prevents liquid splashes and provides operator safety during the coating process.
These features make the SQH Series UV coating machine a reliable and efficient solution for achieving high-quality and precise UV coatings on various materials.
Application
The SQH Series UV coating machine is a versatile solution that finds applications in various industries and printing environments. Some common applications of this machine include:
Photo Printing:
The SQH Series is ideal for adding a glossy or matte UV coating to printed photos, enhancing their visual appeal and durability.
Promotional Materials:
Whether it's brochures, flyers, or marketing collateral, the UV coating provided by this machine adds a premium touch, making promotional materials stand out.
Packaging:
The SQH Series is well-suited for coating packaging materials such as boxes, cartons, and labels, providing them with a protective layer and a visually appealing finish.
Labels and Stickers:
By applying a UV coating, labels and stickers gain enhanced durability, scratch resistance, and a professional appearance.
Business Cards:
Elevate the look and feel of business cards with a UV coating, making them more memorable and visually striking.
Art Prints and Posters:
Artists and print shops can use the SQH Series to add a high-quality UV coating to art prints and posters, creating a premium finish that enhances their value.
Stationery:
Coating stationery items like letterheads, envelopes, and notepads with UV adds a layer of protection and a polished appearance.
Packaging Inserts:
Enhance the appeal of packaging inserts, such as product manuals and warranties, by applying a UV coating that provides durability and a professional touch.
These are just a few examples of the wide range of applications for the SQH Series UV coating machine. Its versatility and high-quality coating capabilities make it a valuable asset for print shops, packaging companies, marketing agencies, and various other businesses in need of superior UV coating results.
