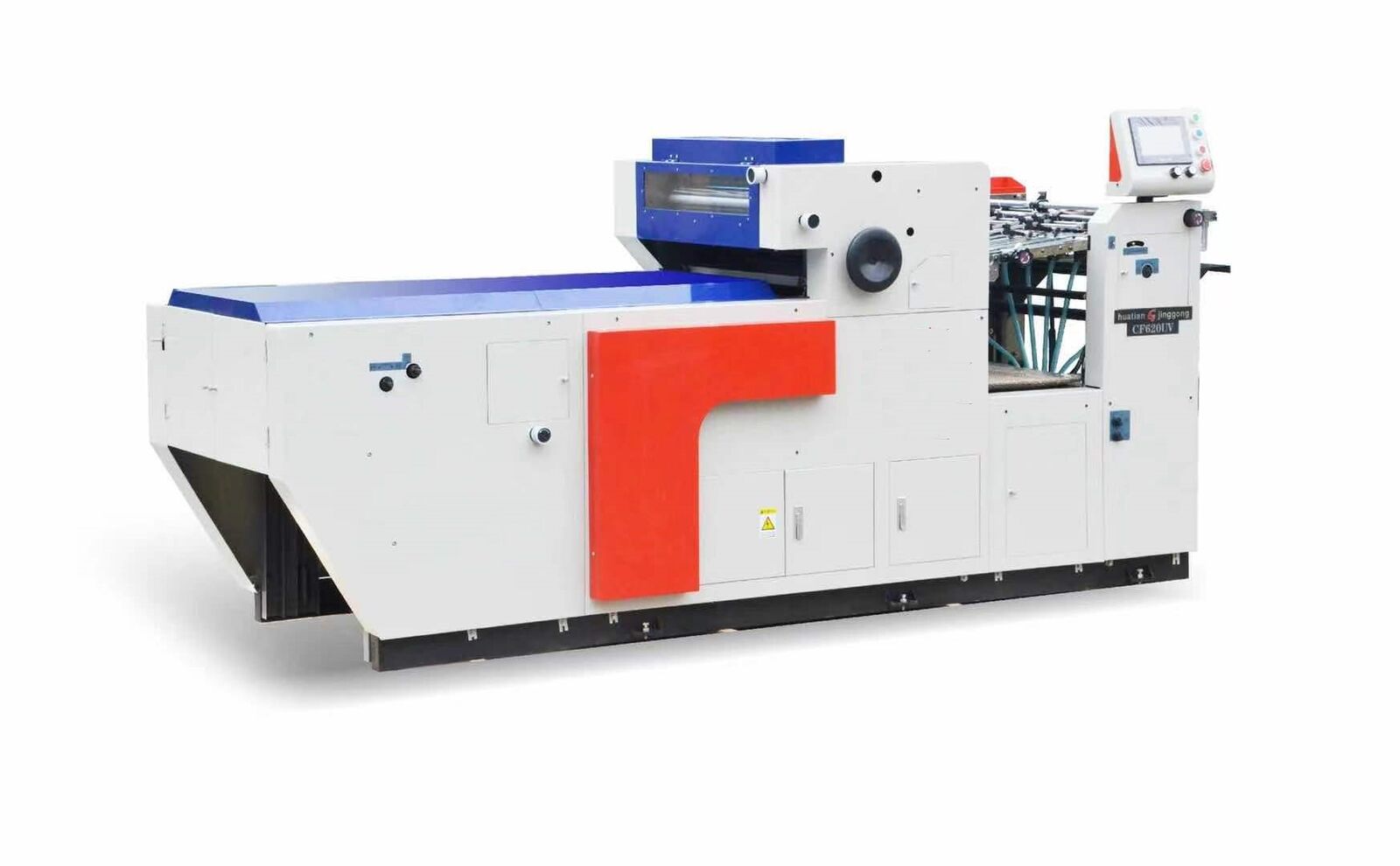

QH-Spot UV Coater
QH-Spot UV coating machine can do spot UV and flood UV coating on printed matter and packaging products such as the books, posters, adhesive stickers etc. This machine is consist of Autofeed system, vanishing system, curing system and auto delivery system. The varnishing system include UV varnishing system and Water based varnishing system. It not only improves the quality of printed materials, but also increasees the value of the products, makes more profits to printing companies. Because of the high speed and efficency, it is getting very good reputations from clients all over the world.

Item Specifications
Size: 45cm Wide
Max Sheet: 62*45cm
Sheet Thickness: 60-250 GSM
speed: 5500 sheets/hour
Power: 15 kw
Curing : UV and IR
Compatibility: Spot coating and flood UV

Request A Quote

INQUIRY
WhatsAPP

Related Products

Product Description



QH Spot UV Coater

AUQH 24"(650mm)

UV Coater

SQH-Coat 24"(650mm)

UV Coater

QH-Coat 24" (650mm)

UV Coater

QH-Coat 18" (480mm)

UV Coater

Max Width 17" (450mm) 24" (650mm) 24" (650mm) 24" (650mm)18" (480mm）
Min Thickness60g180g180g180g180g
Max Thickness250G300G300G800G/300G800G
Speed 0-18m/min0-18m/min0-18m/min0-9m/min0-9m/min
Curing WayUV Lamp and IR LampUV LampUV LampUV LampUV Lamp
EffectGlossy /Matt
Glossy/MattGlossy/MattGlossy/MattGlossy/Matt
Lamp No.

2 pieces UV lamp

3 pieces IR lamp

1 piece1 piece1 piece1 piece
Power

15000w

( UV 5600w*2 IR 1200w*3)

4200w3500w3500w2500w
Weight1200kg580kg370kg350kg250kg
Dimension295*120*145cm
112*200*132cm
107*140*132cm		112*200*132cm112*200*132cm92*130*132cm
Key PointSpot Coating and Flood UV
Automatic type,
Universal size		Faster type, Additional function,
Universal size		Standard type,
Universal size		Standard type,
Compact size


Main Characteristics

◆ Feeder: Multi-point high speed feeding with easy operation & adjustment.

◆ Grippers transportation system. Reverse rotating roller control can lead to better varnish balancing.

◆ Pneumatic varnish pump provides stable varnish supplement.

◆ UV curing: High efficiency curing system with cooing system inside.

◆ Stacker: Flipable safety cover can also provide easy operation for user. Jogger with fan cooling can ensure the order delivery.


Accessories and Advantage

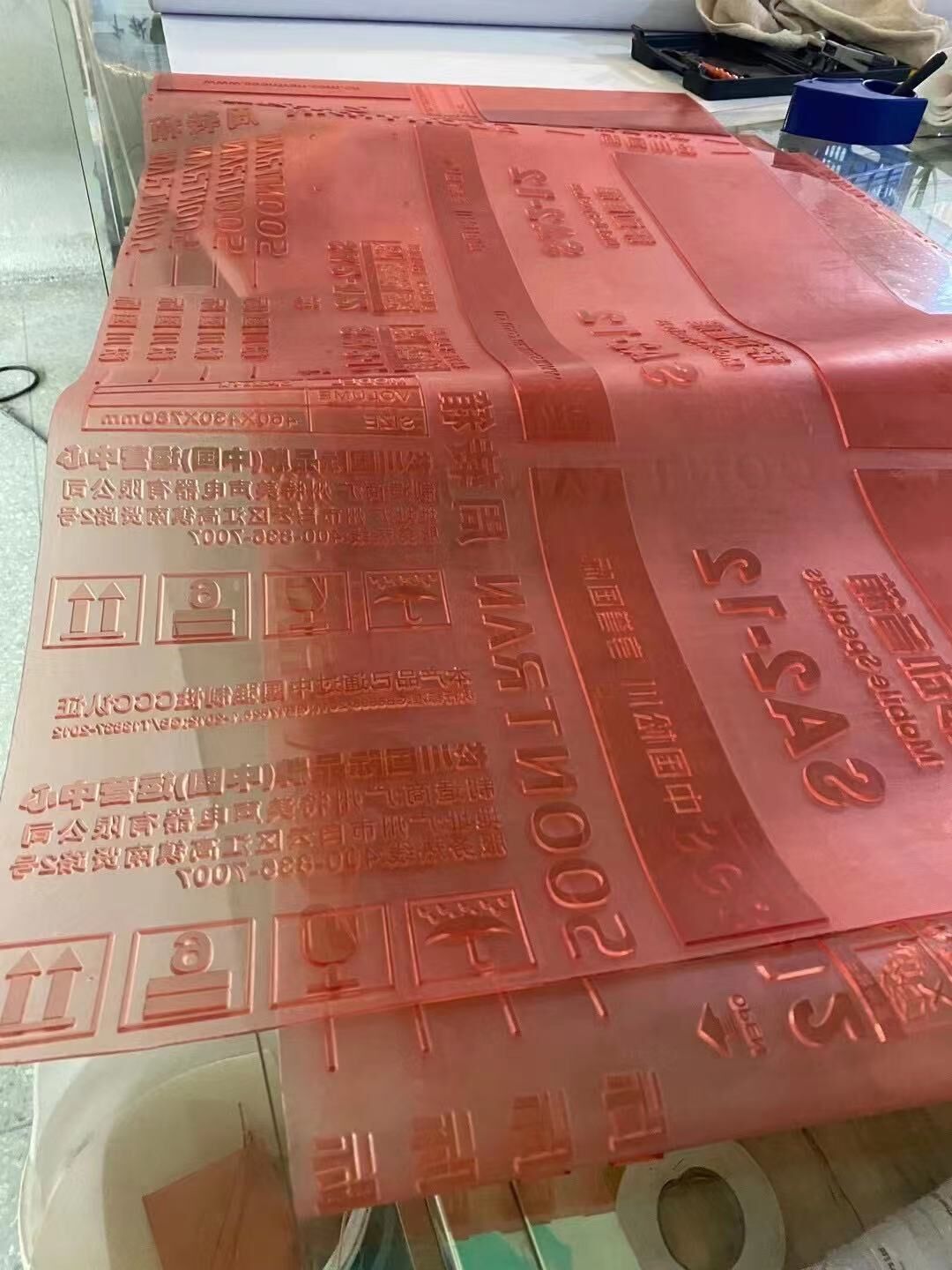

Template



Application

This machine is used for both flood and spot varnishing on light and thick paper with accurate and even spot coating register. It is suitable for spot or full coating on words and graphics in books, advertisement sheets, color paperboard to enhance its dimensional quality and surface protection. Integrated control with PLC can provide easy operation & trouble shot during production. Fully automatic working process from feeding to delivery. Safety for user is considered and widely used in the machine design. Famous international brand of components like bearing, electrical parts are used in the critical functioning part of the machine. It is very suitable to be used as a posting printing equipment within a digital printing solution.


spot UV effect.jpg
