GR 800 Semi-Automatic Hard Cover Machine
GR-800S is suitable for making all kinds of hardcover books, photo albums, folders, desk calendars, notebooks and other book cases.

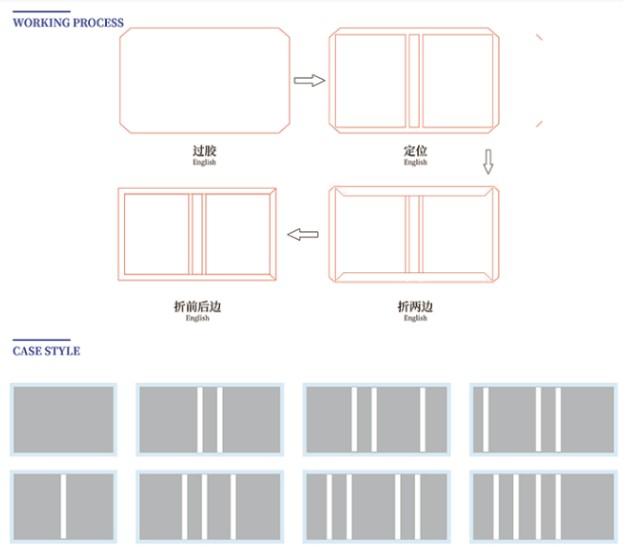

Edge wrapping on four sides, which is completed in two times; Automatic plate placement and positioning, independent gluing mechanism and other one-man operation are simple and convenient.
easy operate & fast speed & labor saving which can greatly improve production efficiency and reduce labor costs make your covering work more efficient.

Max Processing Size: 800*450 mm
Min Processing Size: 140*140 mm
Book Thickness: 58mm
Speed (books/Min ):5-8 books/Min
Machine Size:1680*1620*1000 mm
Net Weight:550 Kg

Request A Quote

INQUIRY

Product Description

ModelGR-800Semi Automatic
GR-800S Semi AutomaticGR-900S Semi Automatic

800SA Semi Automatic Double Stcker

GR-480 Fully Automatic Hard cover machinesGR CIM560 Hard cover Case in Machine
Voltage380V/50HZ, 220V/60HZ380V/50HZ, 220V/60HZ380V/50HZ, 220V/60HZ380V/50HZ, 220V/60HZ380V/50HZ, 220V/60HZ380V/50HZ, 220V/60HZ
Power6.7KW6.7KW6.7KW6.5KW
1.5KW
Speed3-9 Pcs/Min3-6 Pcs/Min3-6 Pcs/Min5-8 Pcs/Min20-25 Pcs/Min

7-12Pcs/Min

Max Size800*450mm750*450mm850*450mm750*450mm800*450mm560*420mm
Min Size140*140mm140*140mm140*140mm140*140mm220*120mm90*60mm
Diamention

1680*1620*1000

mm

1680*1620*1600

mm

1680*1720*1600

mm

3000*1750*1500

mm

8500*2000*1600

mm

1500*970*1820

mm

Weight550Kg650kg750kg800Kg3300kg500Kg

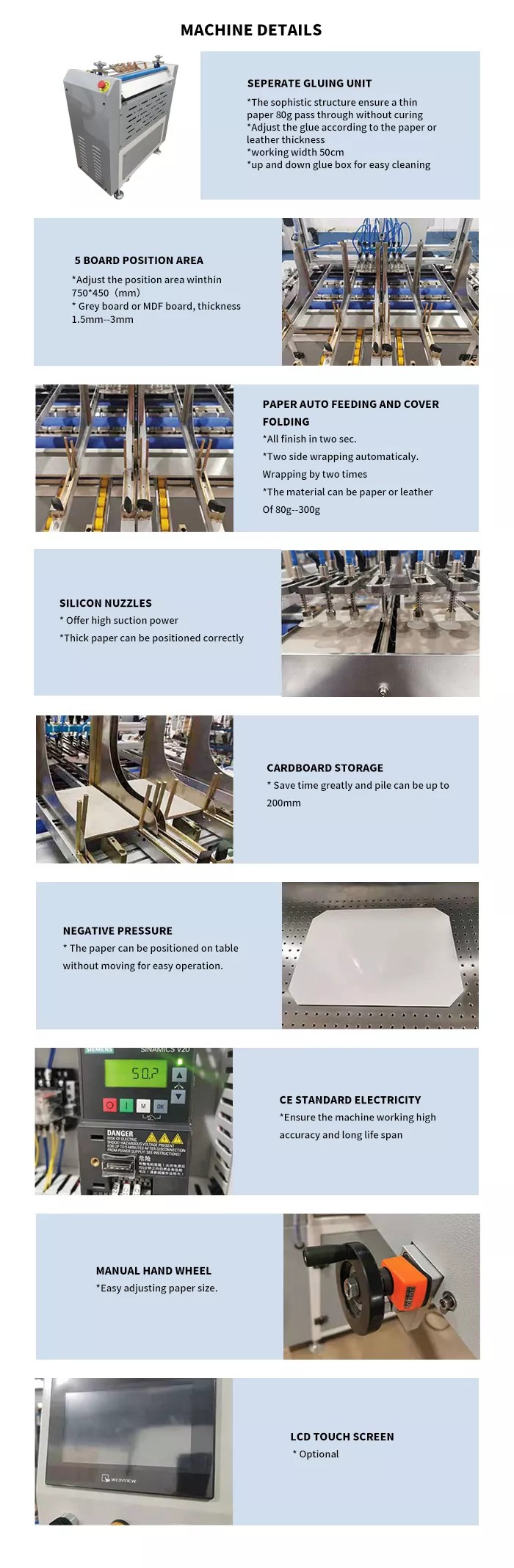

Main Characteristics




Accessories and Advantage

Adopting PLC control system, no need to adjust position when wrapping cover.

Using hot glue to process, make adhesion more firmly.

Work table can be easily adjust according to different size paper and book

Auto transmitting the cover and board after position correcting.




Application

The  auto post-press packaging machine is the best equipment for producing hardcover books, albums, calendars, notebooks, folders, gift boxes, etc, Excellent design, stable performance, simple operation and other excellent features.


For package solutions, we offer Sermi auto case maker (Positioning machine, edge wrapping machine, positioning and edging machine), Hard cover book casing in machine, Hard cover book pressing & creasing machine, Hot melt gluing/Cold gluing machine, Book block head band machine, etc.

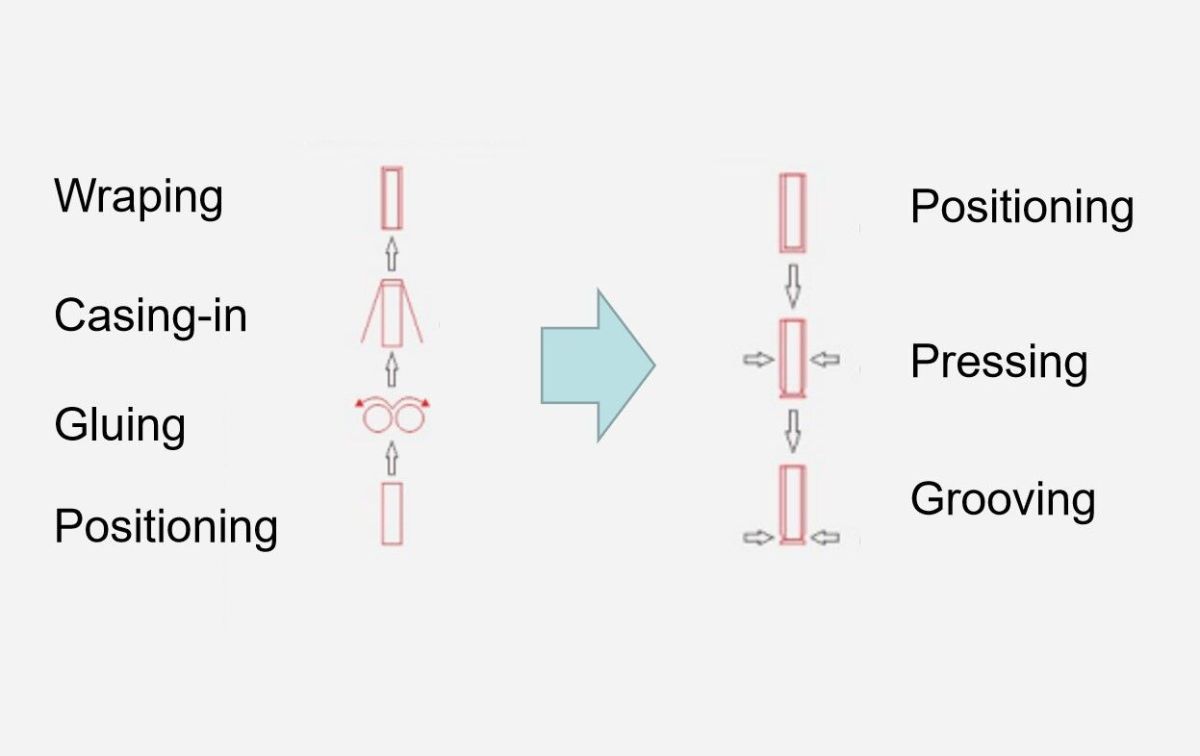

Overall peroformance: These machines can be finished in one gluing, fixed position, edge wrapping, covering, pressing & creasing, sticking bock head and other mumber of processes. The structure is simple and flexibility, debugging is silmple and covenient. Semi-automatic machine is a single-station, and can be freely spliced, taking the position you want most, effectively replacing the manual production method, and greatly saving costs.
