Product Description



ModelGR-480 Fully Automatic GR-800 Semi AutomaticGR-800S Semi AutomaticGR-900S Semi Automatic800SA Semi automatic double stackerGR CIM560 Hard cover Case in Machine
Voltage380V/50HZ, 220V/60HZ380V/50HZ, 220V/60HZ380V/50HZ, 220V/60HZ380V/50HZ, 220V/60HZ380V/50HZ, 220V/60HZ380V/50HZ, 220V/60HZ
Power
6.7KW6.7KW6.7KW6.5KW1.5KW
Speed20-25 Pcs/Min3-9 Pcs/Min3-6 Pcs/Min3-6 Pcs/Min5-8 Pcs/Min7-12Pcs/Min
Max Size800*450mm800*450mm750*450mm850*450mm750*450mm560*420mm
Min Size220*120mm140*140mm140*140mm140*140mm140*140mm90*60mm
Diamention8500*2000*1600mm1680*1620*1000mm1680*1620*1600mm1680*1720*1600mm3000*1750*1500mm1500*970*1820mm
Weight3300kg550Kg650kg750kg800Kg500Kg

MAIN TECHNICAL PARAMETERS
Bady size8500*2000*1600mm
weight of the whole machine3300kg
maximum packing wicth450mm
maximum length of packing800mm
minimum package width120mm
minimum length of packing220mm
highest speed packing20-25pcs/min
working power supplyAC380V/50HZ ± 10%
Work gas4-8kg/cm2
Total power consumption12.5KW/H
Total power consumption1.5m3/H
noise pollution<70dB

Main Characteristics

◆ Industry after the proposed paper feeding structure,the wholemoverment of pneumatic control,simple structure.

◆ paper pushing platfirm and width adjustment of paper platform usingthe center of concentric adjustment,simple operation without error.

◆ Cooper scraper new design,to effecticely prevent the rolls,and ensurenormal operation of the machine.

◆ the cardboard feeding table with linear guide rail and servo motorcontrol,fast and accurate positioning.

◆ the cardboard feeding table with automatic stop device for lack ofcardboard,reduce product defective rate.

◆ below the conceying belt adopts high-power suction fan,to make thepaper more stable and caaurate delivery.

◆ paper feeding and positioning system adopts imported high precisionphotoelectric control device,make the paper and cardboard location moreprecisely.

◆ the autimatic four-edge folding machine adopts automatic angle-repair,trmming, unique structure,effectively prevent the free edge andcorner not micron.

◆ The machine adopts PLC comtrpl,touch screen operationsimple,machine failure disple,machinefailure displayed directly on thecomputer touch screen,convenient troubleshooting.


Accessories and Advantage

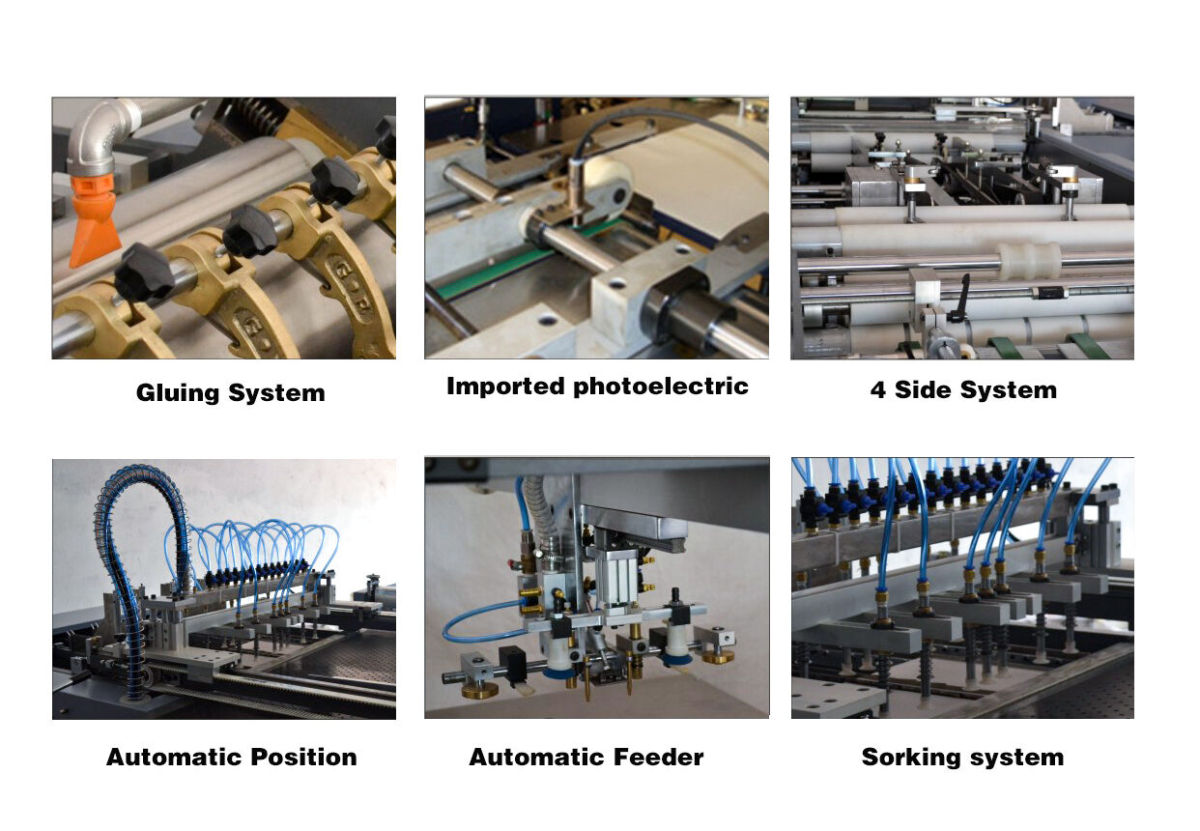

Fully automaic cover machine details.jpg

Application

The  auto post-press packaging machine is the best equipment for producing hardcover books, albums, calendars, notebooks, folders, gift boxes, etc, Excellent design, stable performance, simple operation and other excellent features.


For package solutions， we offer Sermi auto case maker (Positioning machine, edge wrapping machine, positioning and edging machine), Hard cover book casing in machine, Hard cover book pressing & creasing machine, Hot melt gluing/Cold gluing machine, Book block head band machine, etc.


Overall peroformance: These machines can be finished in one gluing, fixed position, edge wrapping, covering, pressing & creasing, sticking bock head and other mumber of processes. The structure is simple and flexibility, debugging is silmple and covenient. Semi-automatic machine is a single-station, and can be freely spliced, taking the position you want most, effectively replacing the manual production method, and greatly saving costs.


Show case.jpg
