GR800S Autmoatic Hard Cover Machine
GR-800s is the most applicable to various notebook.(photo album),folder, certificate, hardcover book. shell for folding(covering) and pressing.
Four sides of edge wrapping and twice time processing; Independent gluing part and one person operating design, saving time and labor cost.
it is an ideal equipment for making post press packaging book cases.

Max Processing Size: 800*450 mm
Min Processing Size: 140*140 mm
Book Thickness: 58mm
Speed (books/Min ):5-8 books/Min
Machine Size:1680*1620*1000 mm
Net Weight:550 Kg

Request A Quote

INQUIRY

Product Description

ModelGR-800 Semi Automatic GR-800S Semi AutomaticGR-900S Semi Automatic

800SA Semi Automatic Double Stacker

GR-480 Fully Automatic GR CIM560 Hard cover Case in Machine
Voltage380V/50HZ, 220V/60HZ380V/50HZ, 220V/60HZ380V/50HZ, 220V/60HZ380V/50HZ, 220V/60HZ380V/50HZ, 220V/60HZ380V/50HZ, 220V/60HZ
Power6.7KW6.7KW6.7KW6.5KW
1.5KW
Speed3-9 Pcs/Min3-6 Pcs/Min3-6 Pcs/Min5-8 Pcs/Min20-25 Pcs/Min

7-12Pcs/Min

Max Size800*450mm750*450mm850*450mm750*450mm800*450mm560*420mm
Min Size140*140mm140*140mm140*140mm140*140mm220*120mm90*60mm
Diamention

1680*1620*1000

mm

1680*1620*1600

mm

1680*1720*1600

mm

3000*1750*1500

mm

8500*2000*1600

mm

1500*970*1820

mm

Weight550Kg650kg750kg800Kg3300kg500Kg




Main Characteristics

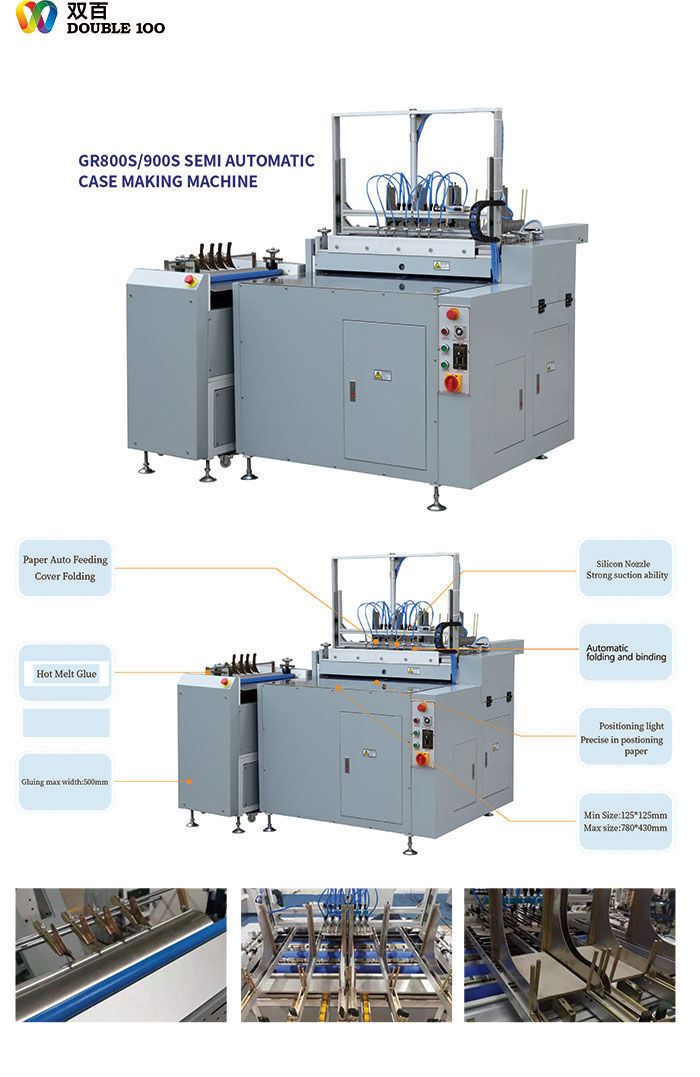

auto hard cover 1.jpg

Adopting PLC control system, no need to adjust position when wrapping cover.

Using hot glue(Animal glue / jelly glue), cold glue.

Replace products, fast adjustment and automatically control the thickness of cardboard.

Convenient wheel control for adjusting size




Accessories and Advantage

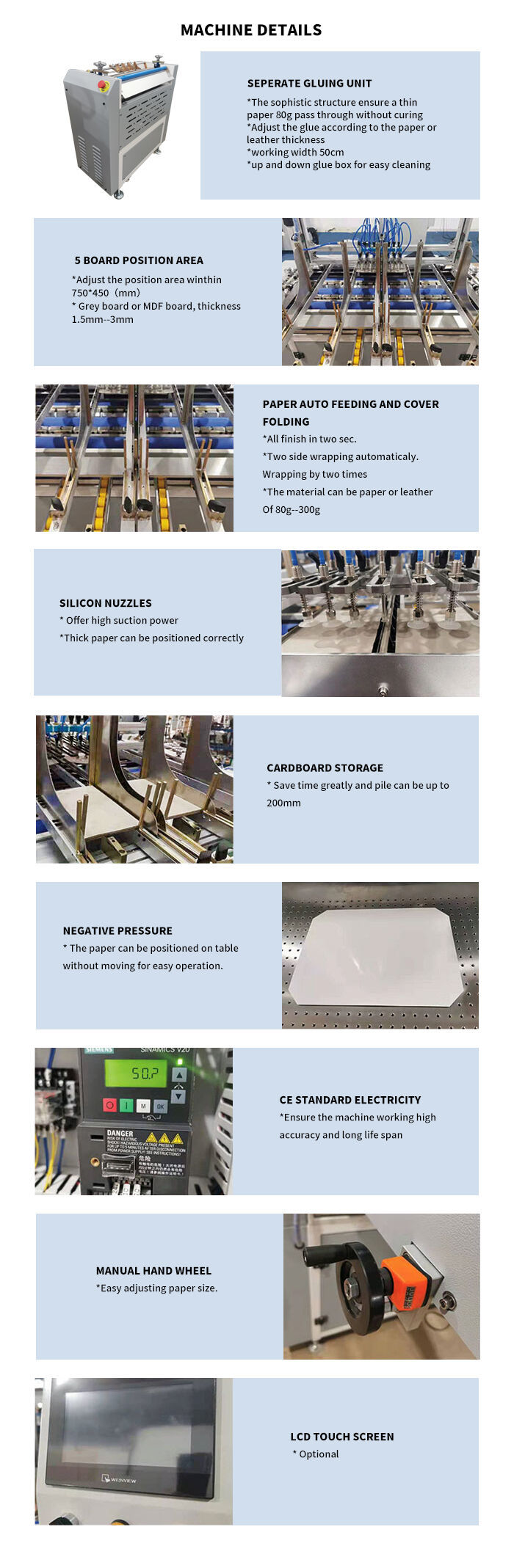

auto hard cover 4.jpg

The guide rails of the whole machine are imported from Taiwan; Long service life, high precision and stability.

The operation of the machine adopts "Siemens" frequency conversion.

Automatic detection of photoelectric switch imported from Taiwan.The whole frame and shell are reated with high-temperature baking paint.

With long service life and anti rust ability, High strength and etc.




Application

The  Semi-auto post-press packaging machine is the best equipment for producing hardcover books, albums, calendars, notebooks, folders, gift boxes, etc, Excellent design, stable performance, simple operation and other excellent features.


For package solutions, we offer Sermi auto case maker (Positioning machine, edge wrapping machine, positioning and edging machine), Hard cover book casing in machine, Hard cover book pressing & creasing machine, Hot melt gluing/Cold gluing machine, Book block head band machine, etc.


Overall peroformance: These machines can be finished in one gluing, fixed position, edge wrapping, covering, pressing & creasing, sticking bock head and other mumber of processes. The structure is simple and flexibility, debugging is silmple and covenient. Semi-automatic machine is a single-station, and can be freely spliced, taking the position you want most, effectively replacing the manual production method, and greatly saving costs.


show case 2.jpg

Show case.jpg
