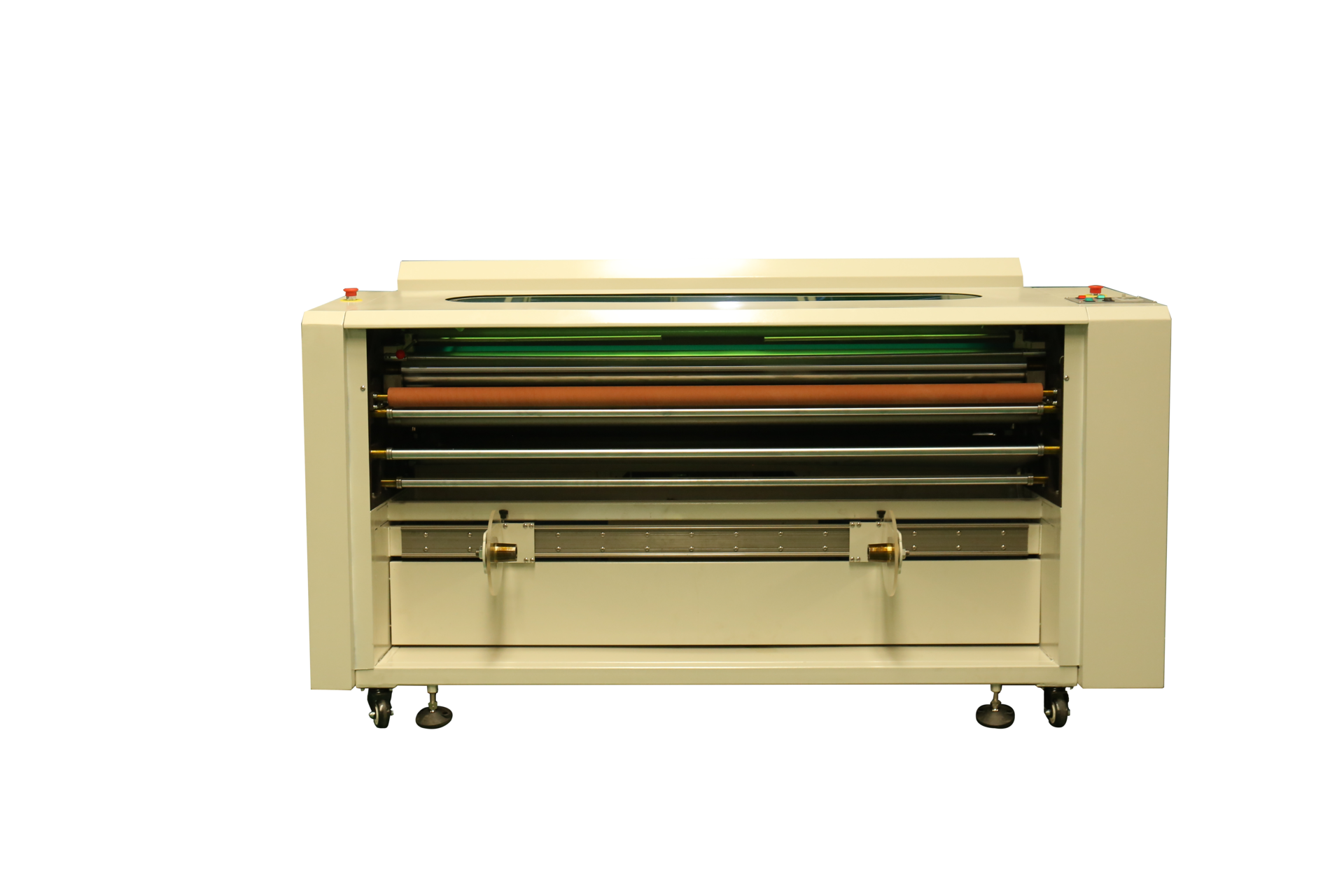

Rol QH-Coat 63''(1600mm)
Our UV coater should be an ideal solution partner for both digital press users and traditional offset printer user. we make sure this machine gives your customer upgrade printing quality by perfect UV coating.

To comply to the market demand， we designed the wide-width coater serires. Their coating width are from 1350mm to 2000mm for big advertisement banner coating, For thickness, its max coating thickness reach 700mm.
So, no matter what size of coating work you want to make, our machine will meet all your requirements.

Rol QH-Coat series is mainly used in Advertising business for large size coating work.

Item Specifications
Size: 63"(160cm)
Max Sheet: 63"(160cm) x Infinity
Max Sheet Thickness: 70mm
speed:8m/min
Coating Thickness:0.02--0.05mm
Curing : UV/IR Optional
Coating Effect: glossy

Request A Quote

INQUIRY
WhatsAPP

Related Products

Product Description

Model

Rol QH Coat 63"(1600mm)

Roll to Roll UV Coater

Rol QH Coat 78"(2000mm)

Roll to Roll UV Coater

Rol QH Coat 50"(1350mm)

Roll to Roll UV Coater

 Lbl QH Coat 12"(350mm)

Roll to Roll UV Coater

Size:63"(160cm)78" (200cm)50"(135cm)12"(35cm)
Max Sheet63"(160cm) x Infinity78" (200cm) x Infinity50"(135cm) x Infinity12" (35cm) x Infinity
Max Sheet Thickness:70mm70mm70mm 2mm
Speed8m/min 8m/min 8m/min 4m/min
Coating Thickness0.02--0.05mm0.02--0.05mm0.02--0.05mm0.02--0.05mm
Curing MethodUV/IR Optional UV/IR Optional UV/IR Optional UV
Coating Effect glossy glossy glossyglossy or matt


Main Characteristics

◆ The large format UV coating machine are mainly used in Advertising business for large format lamination to get glossy or matt effect, and make it waterproof

◆ It is for both outdoor and indoor.

◆ It can coat on roll materials or on sheets material. It can coat on thin material, also on the thick board material.

◆ The machine is easy for operation and free of cleaning.

◆ And the machine realize very low cost while very good effect.no waste and no wrinkle on the material.

◆ There will never be glue failure after a long time. And no strong plastic smell and the color will never change.

◆ With the machine we can coat thicker layer or thinner layer by adjusting the liquid thickness.

◆ The size varies from 1350mm 1600mm and 2000mm ( smaller size with designs also available).





Accessories and Advantage

图层 0.png

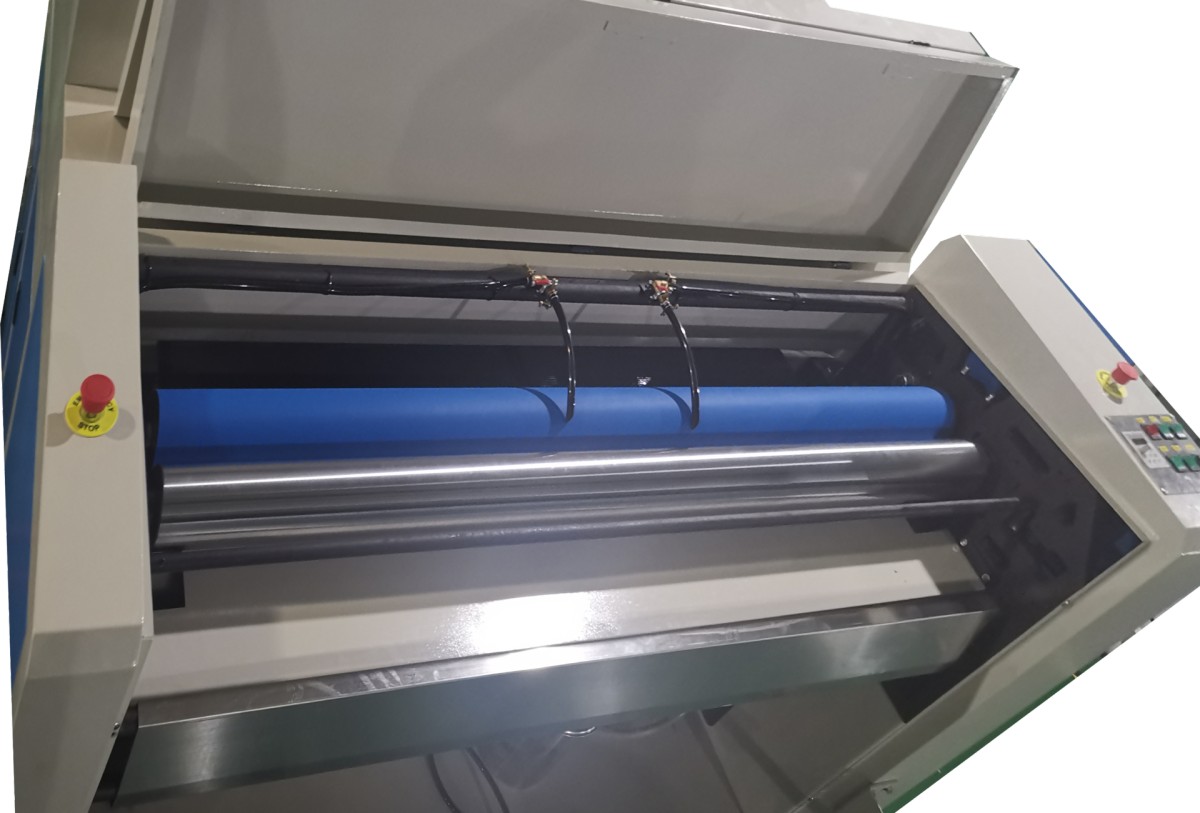

图层 03.png



图层 055.png




◆ The coated material including: banner, PVC banner, self adhesive vinyl, mesh fabric, pp paper, foam board, flat rigidV board and ect.

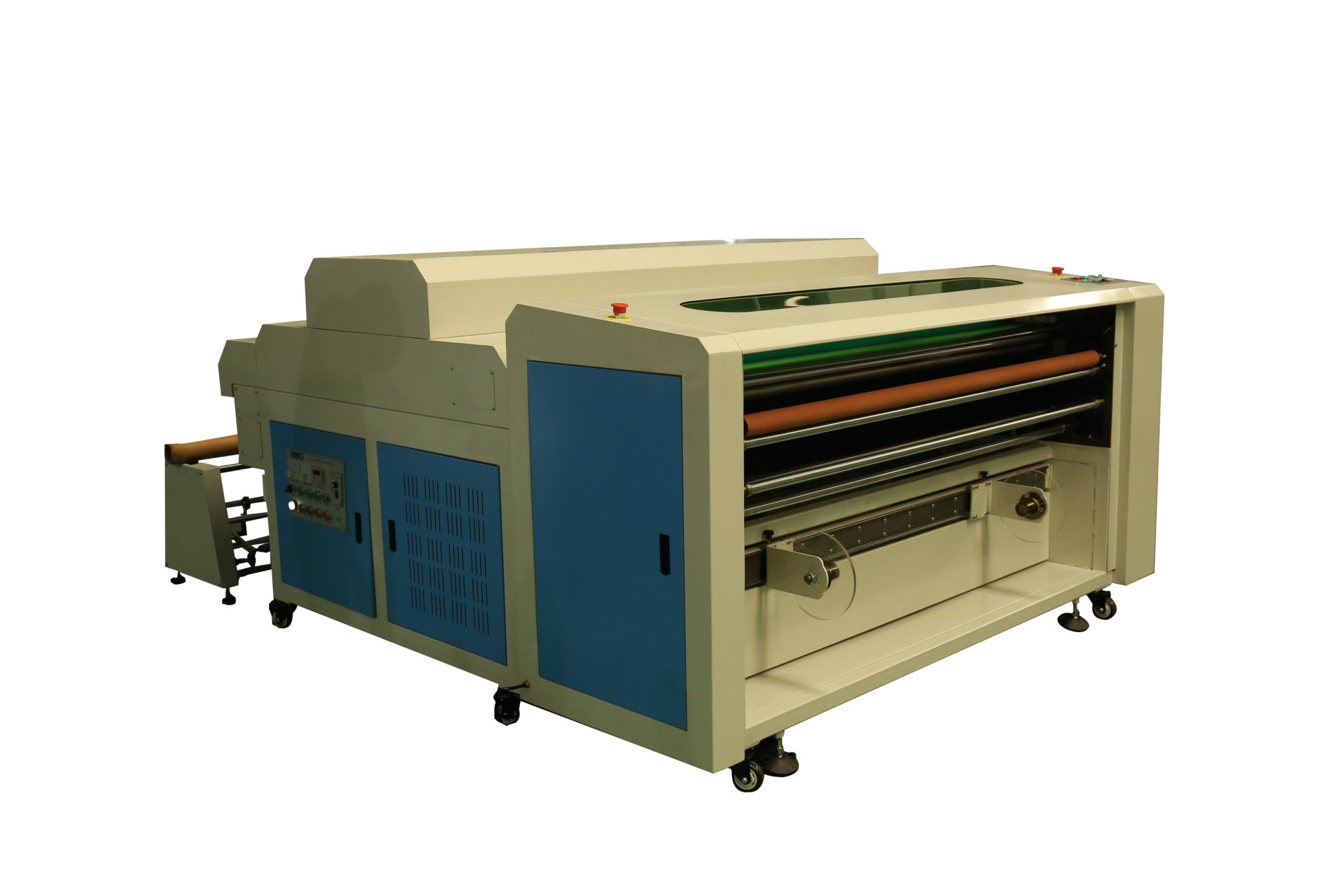

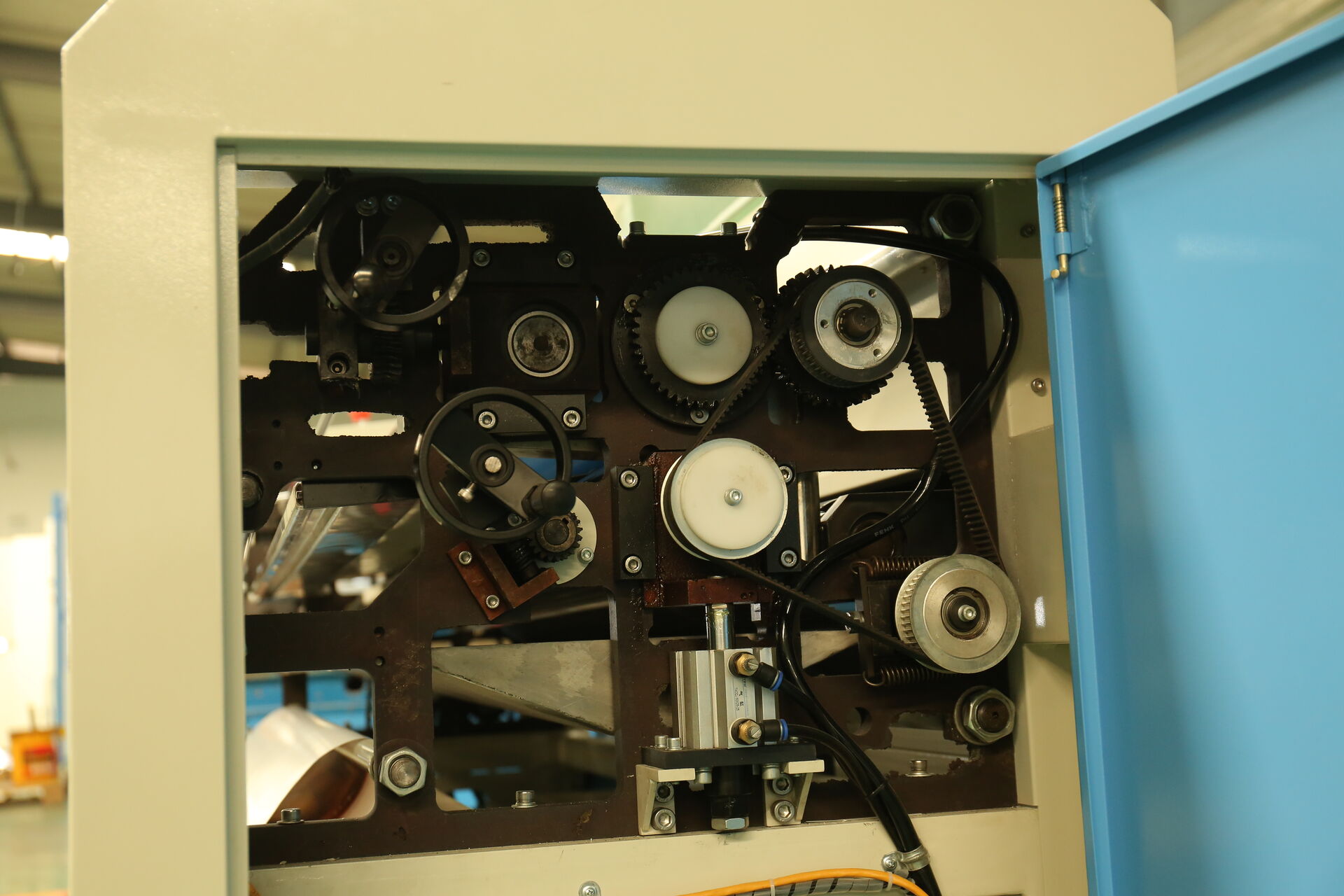

◆ The machine include three parts: coating part, curing parting, collection part

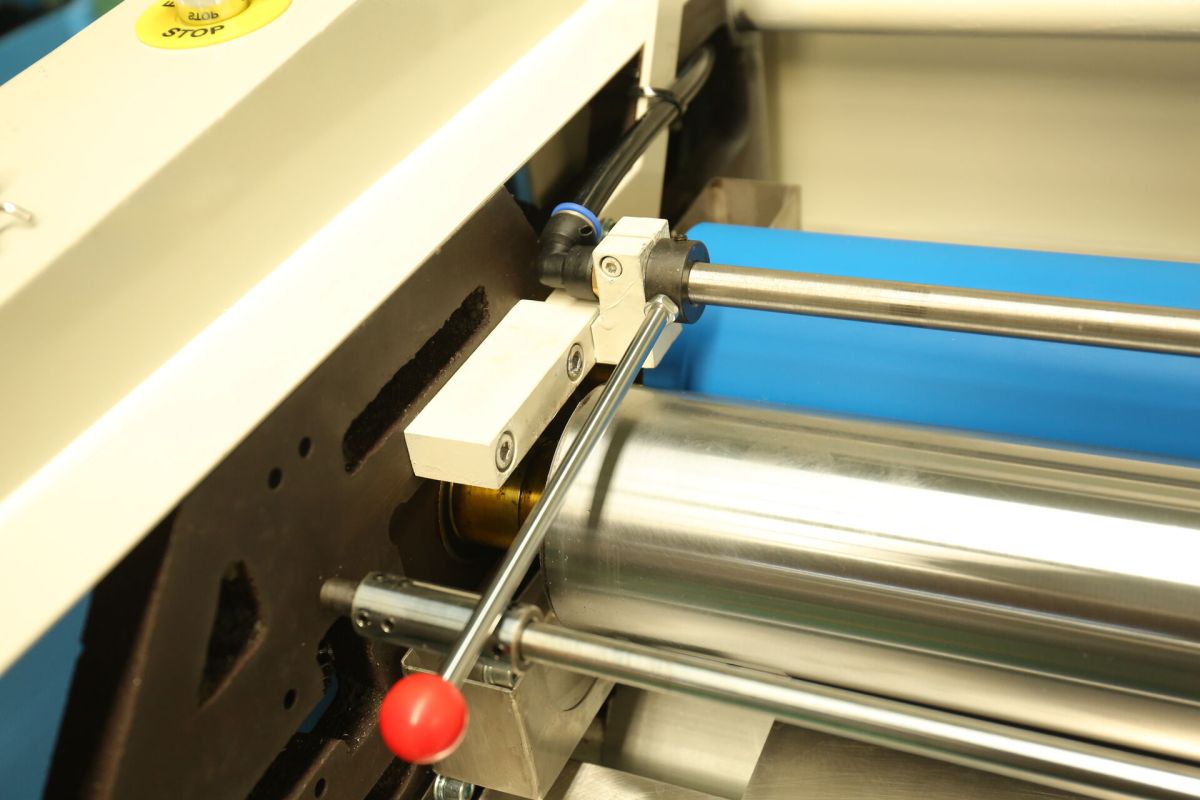

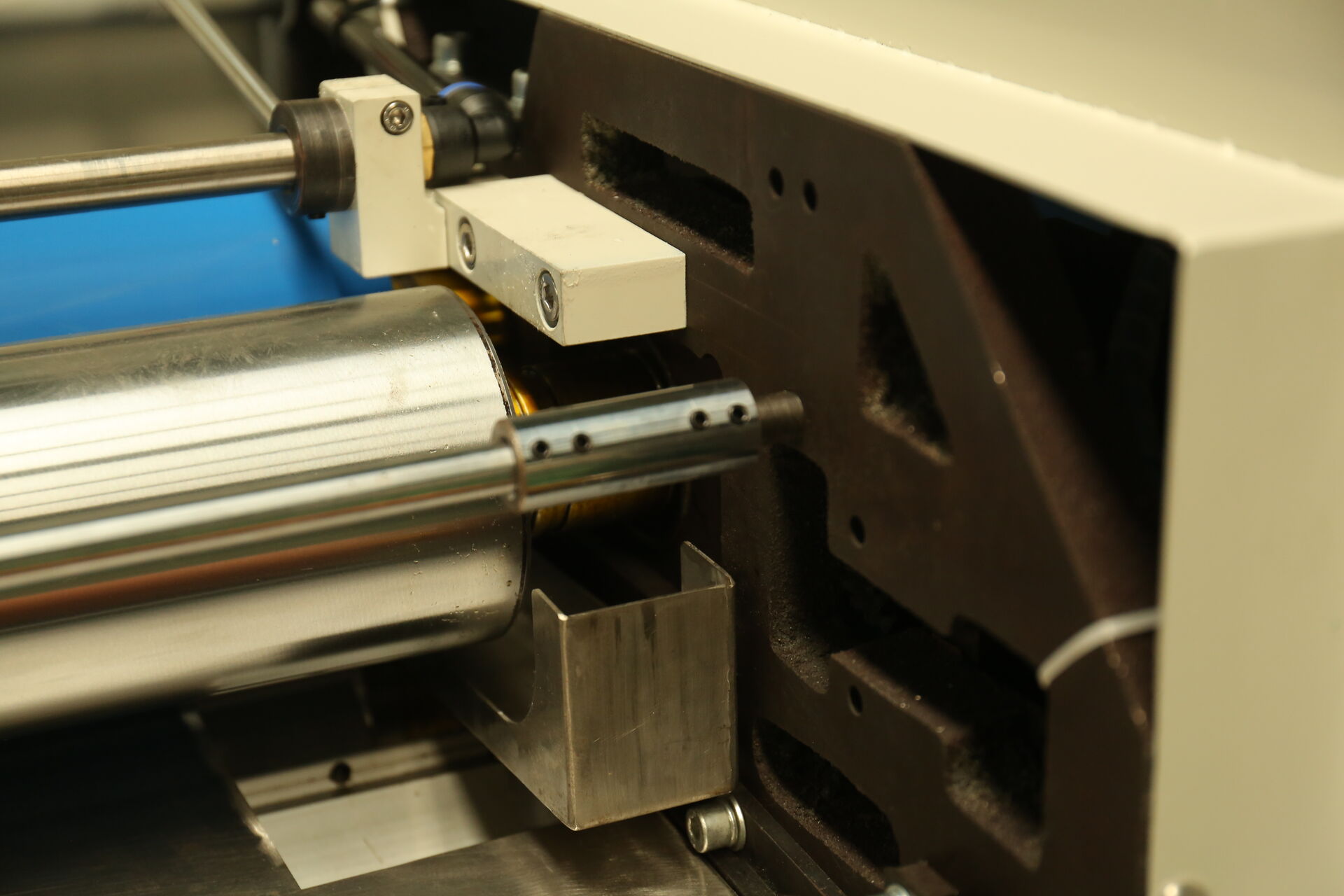

◆ The coating part can be adjusted by air for big adjusting and by wheel for micro adjusting

◆ The liquid is pumped through re-circulated system and avoid wasting and of low cost

◆ high tensile structural steels structure and roller， have longer service life and better stability.

◆ The machine include 2 pump, we can pump glossy and matt liquid separately.

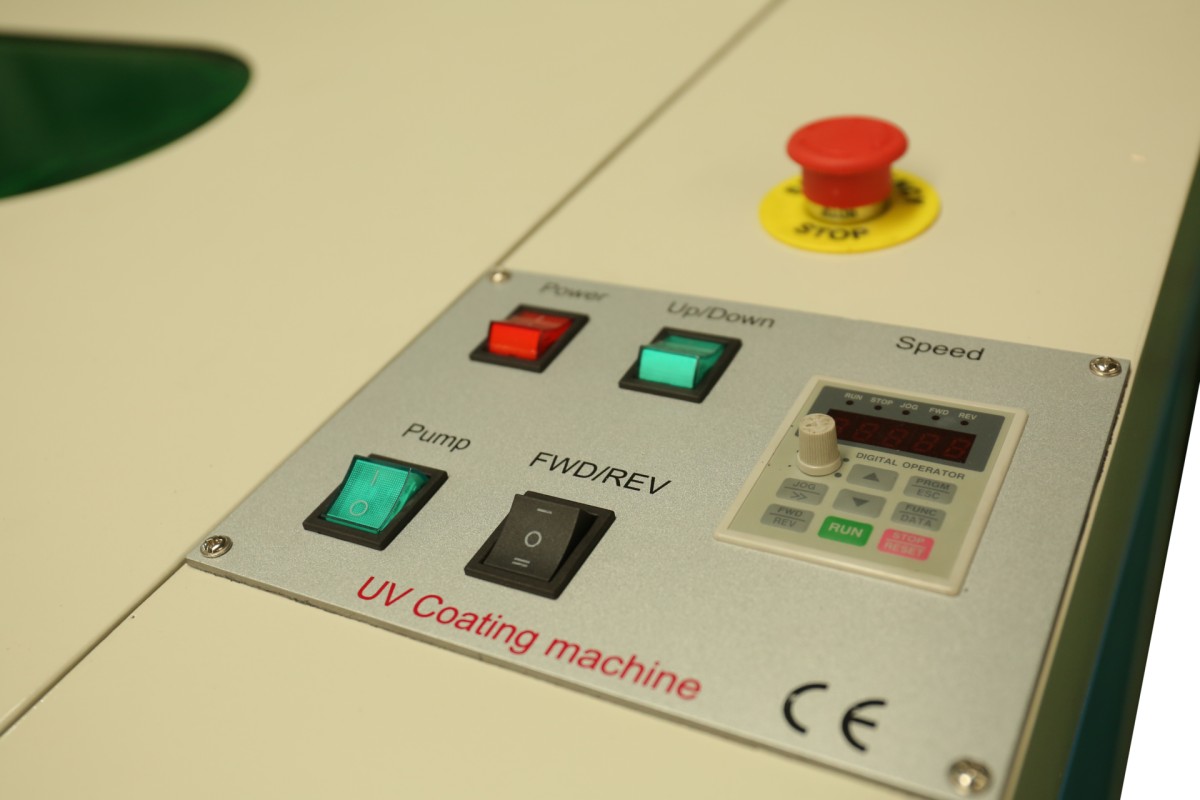

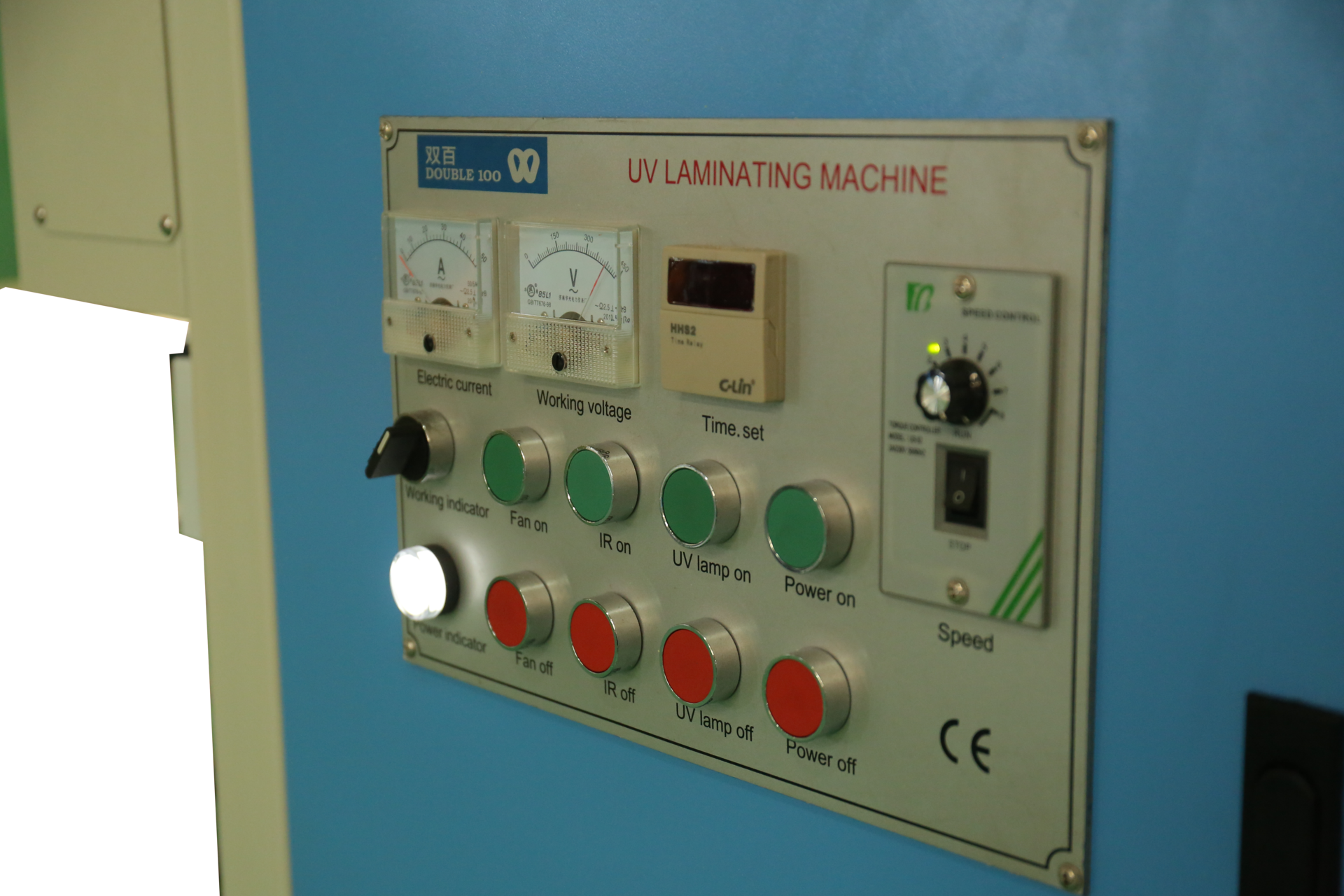

◆ Almost every parts of the machine can be controlled independently, such as curing lamp, cooling fan, transmitter and so on.

◆ The speed of coating is very fast and drying is instantaneous.

◆ The coating is finished without any air bubble and will not crack or crease

◆ The coating cost is very low and there is no waste for the material.

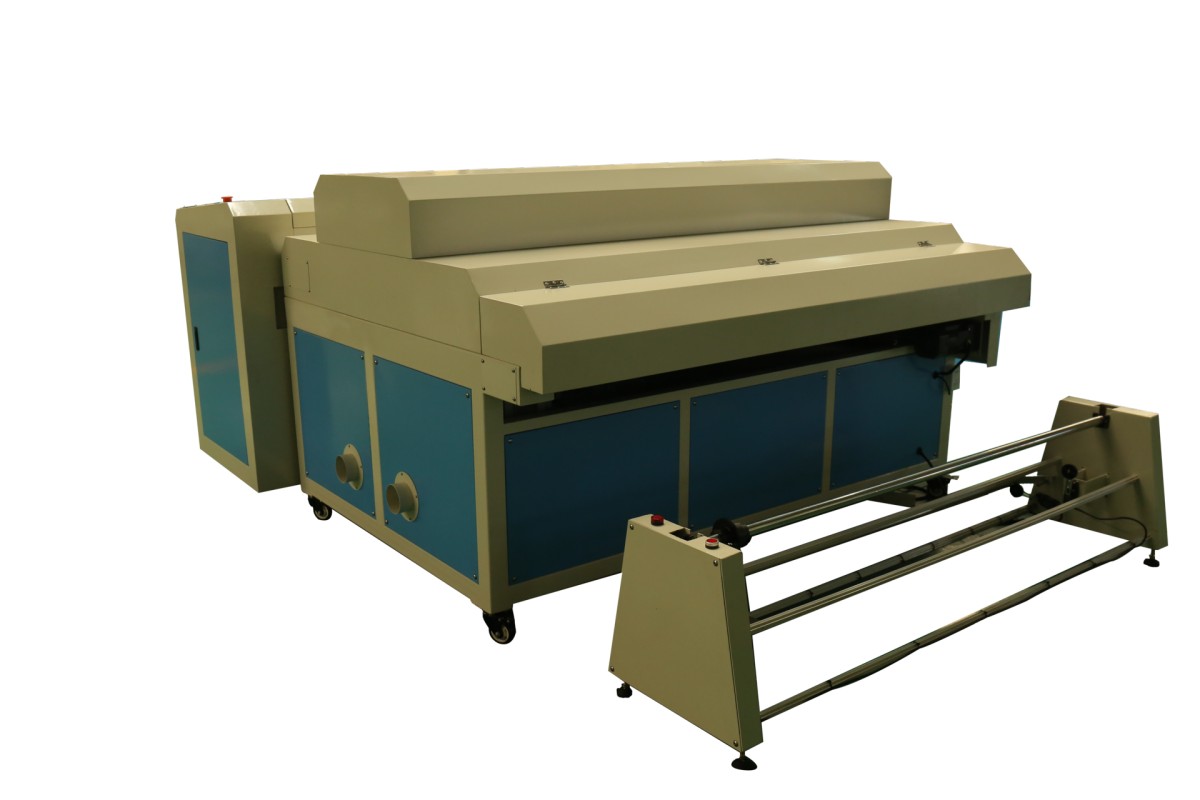

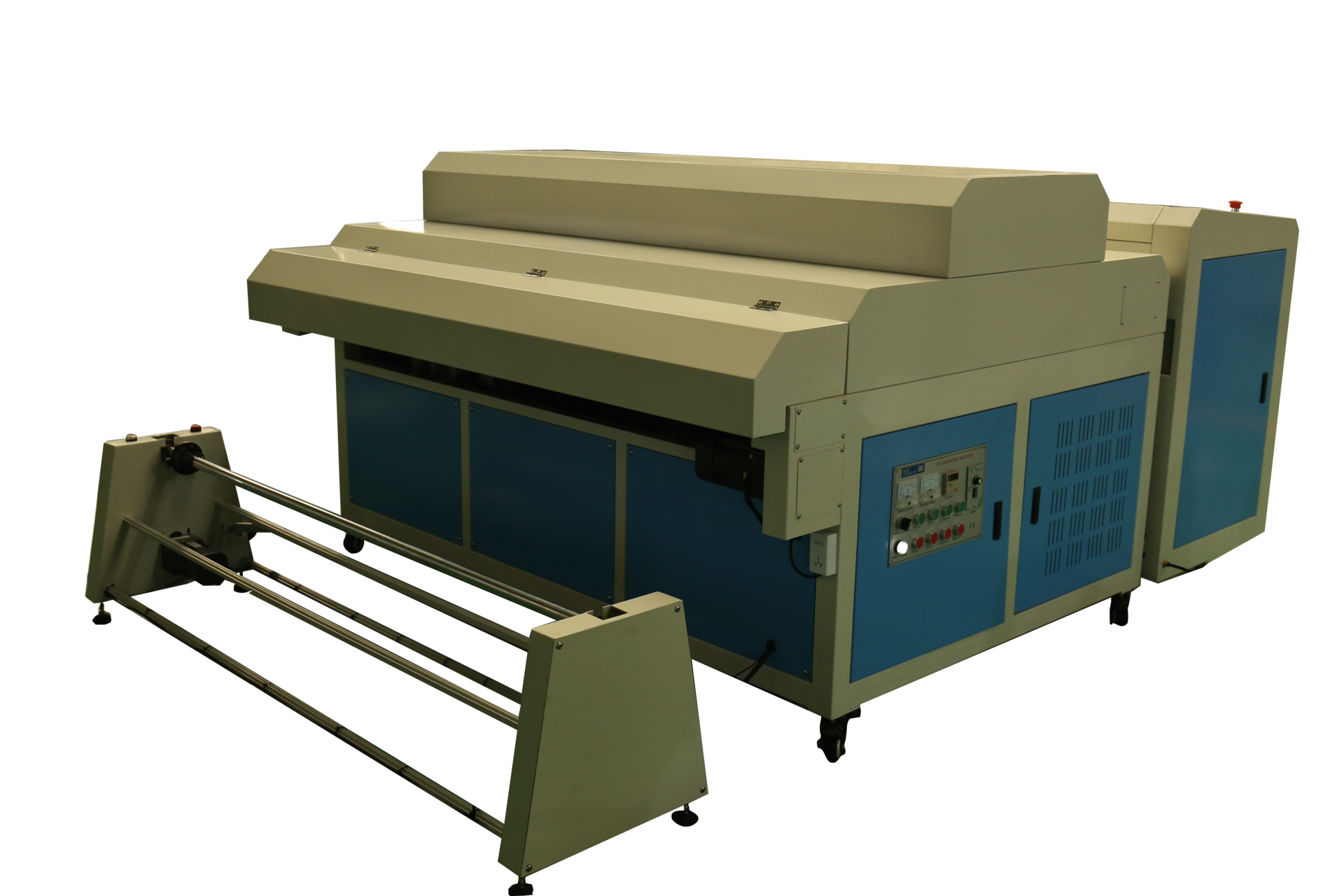

◆ The machine can realize roll to roll. With the roll fixer, The material can go very smooth without failure. Also we can put sheets material.

◆ The machine can also coat board material. The max thickness for the material is 7cm.

◆ IR lamp is optional


Application

UV Coating is the most effective process you can apply to post-printed materials, allowing you to coat and cure immediately without extra trimming work.  Applying an ultra-violet coating on printed pieces, it increase the durability of printed image, add resistance to the folding material, also it enhance the visual effect for the print by glossy or matt varnish.
