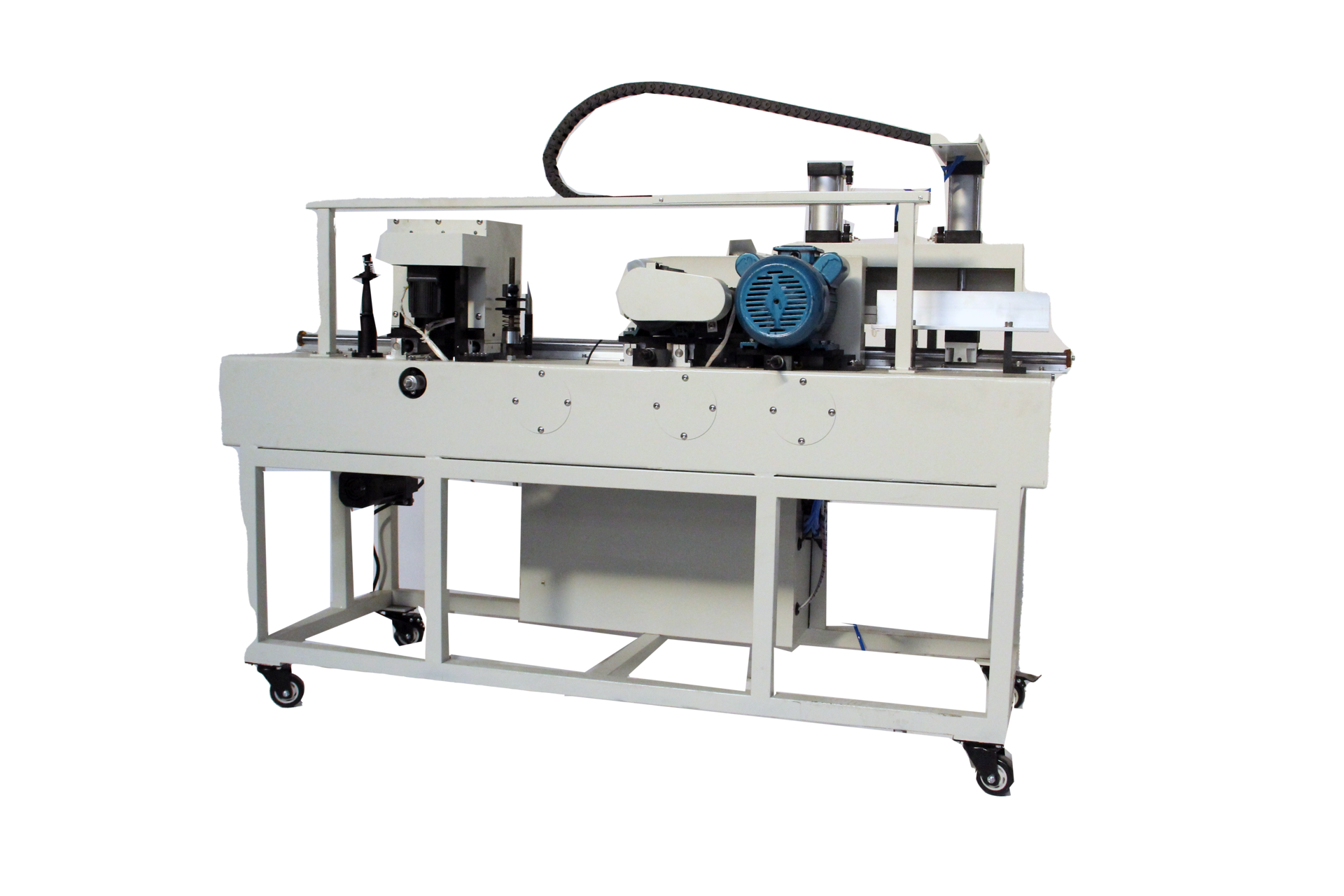

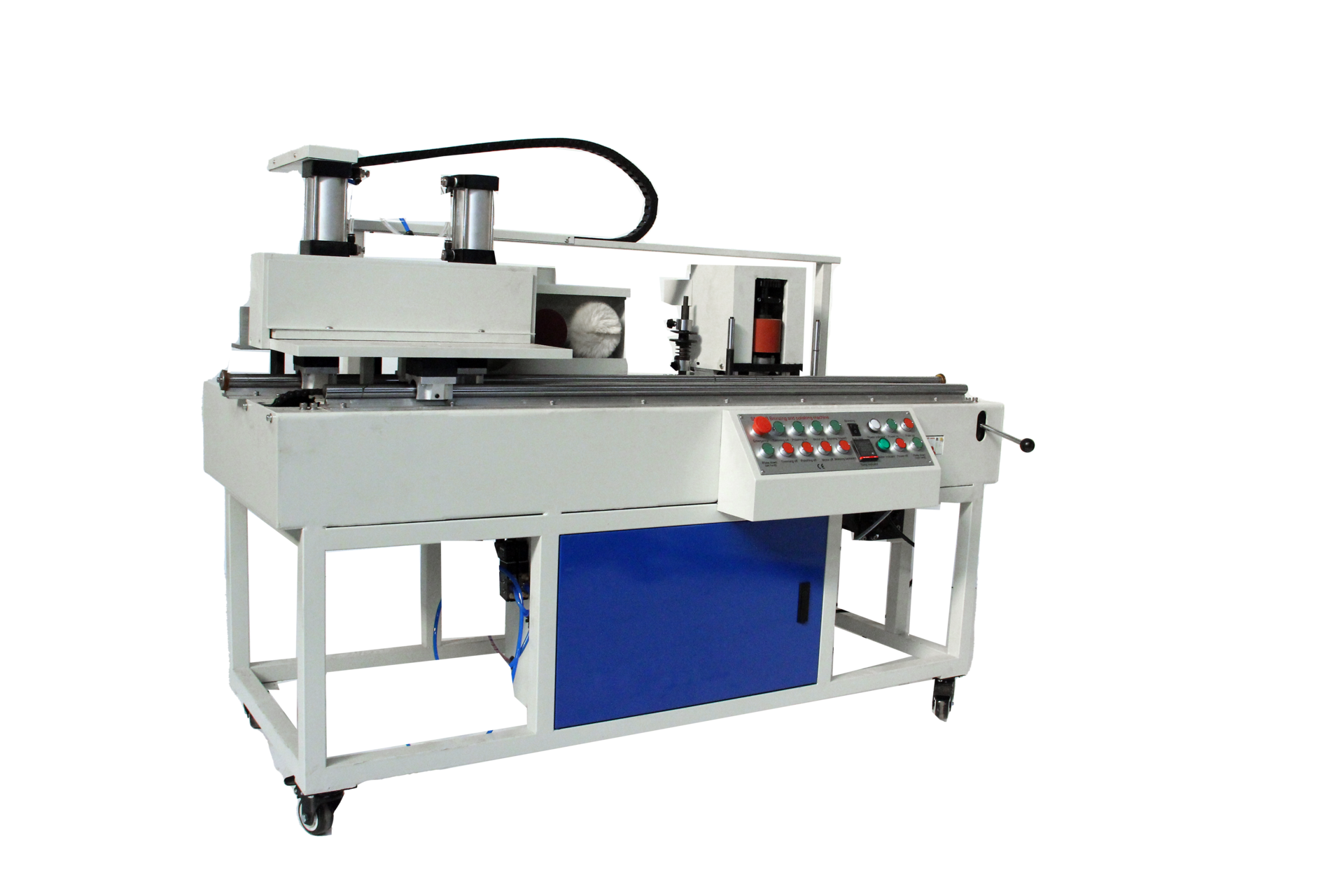

QHA-PVC Album Gilding Machine
Gilding machine is a machine for after binding to decorate the book edge or frame edge. It mainly include function of polishing and gilding to ensure the edge smooth and colored. It is easy to operate, low cost, scratch resistant and with different designs by the gilding tape.
Our top-of-the-line PVC photo album gilding machine - the perfect choice for professionals and hobbyists alike. This machine is packed with features to take your gilding game to the next level, including an alloy cutter for precision cutting, sanding capability for a flawless finish, dust collection to keep your workspace clean, and controllable speed to accommodate plastic materials.

With our gilding machine, you'll be able to create stunning PVC photo albums with ease and efficiency. The machine's controllable speed allows you to work with precision and consistency, while the alloy cutter ensures clean and accurate cuts every time. Plus, the sanding function and dust collection system guarantee a professional and polished look.

Whether you're a seasoned pro or just starting out, our PVC photo album gilding machine will elevate your craft and help you achieve your creative vision. Don't settle for anything less - invest in the best with our top-quality machine.

QHA-PVC Album Gilding Machine is mainly gilding on pvc paper which is the main material of Album book with functions of polishing, gilding, dust collecting.

QHA-PVC Album Gilding Machine Specification
Suitable Material: Plastic and paper material
Boook Thickness: 8mm--70mm
Bronzing temp: 150degree
Speed: 4m/min
Function: polishing, sanding, dust collecting and gilding
Power:220V/50HZ(60HZ) 2000W
Machine Size: 144*120*75cm
Weight: 375kg

Request A Quote

INQUIRY

Product Description




QH-Book Gilding MachineQHA-PVC Album Gilding MachineQHW-MDF/Wood Gilding Machine
Suitable MaterialPaper materialPlastic and paper materialWOOD/MDF
Boook Thickness8mm--70mm8mm--70mm8MM-30MM
Bronzing temp220 degree150degree150Degree
Speed3m/min4m/min120m/h
Functionpolishing and gilding polishing, sanding, dust collecting and gilding Polishing, angle cutting, gilding
Power220V/50HZ(60HZ) 1800W220V/50HZ(60HZ) 2000W380v/2.8kw
Machine Size155cm*75cm*120cm144*120*75cm205cm*95cm*120cm
Weight350kg375kg435kg


Main Characteristics

◆ With sand polishing and dust collecting functions beside polishing and gilding

◆ Alloy cutter making the edge cutting smooth

◆ Speed adjustable to make sure plastic material no curve

◆ Automatic temp comtrol system to control the temperature accurately

◆ Main motor and Gilding motor is controller seperately

◆ With automatic stop and cooling functions

◆ Recycling gilding paper by electric ,and pressure is adjustable

Accessories and Advantage

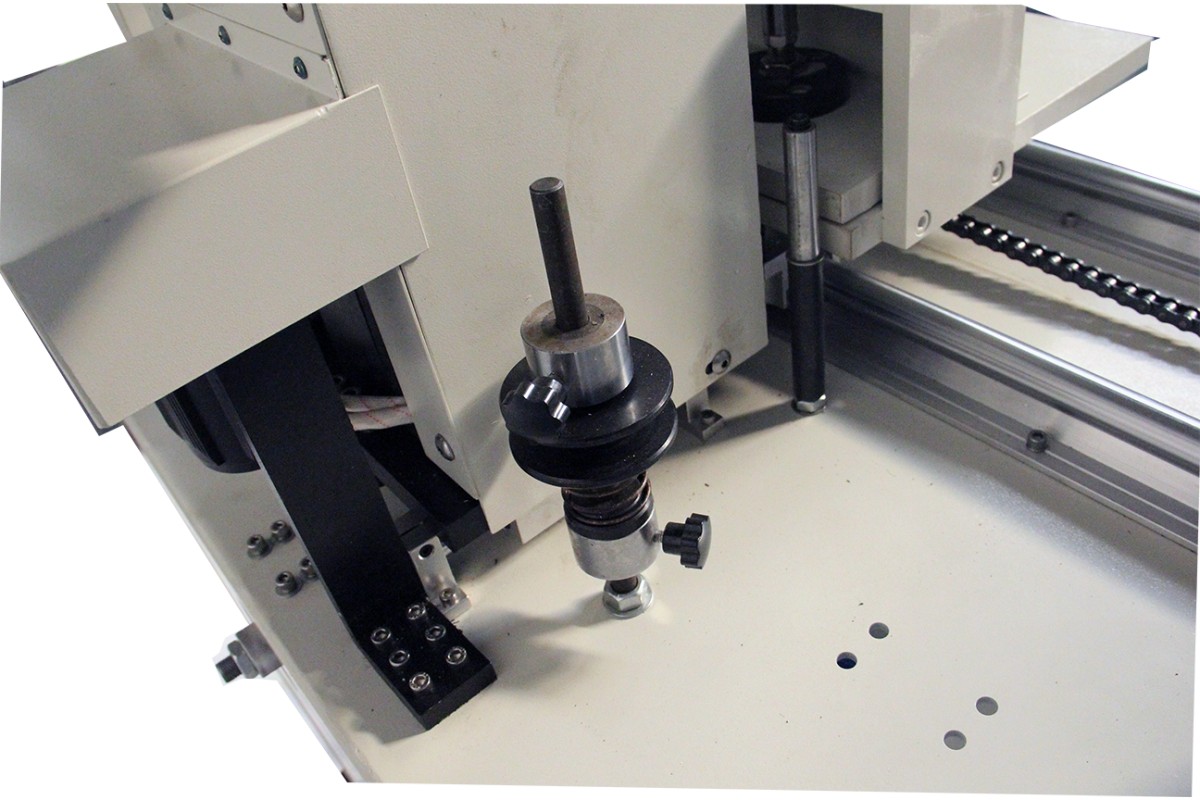

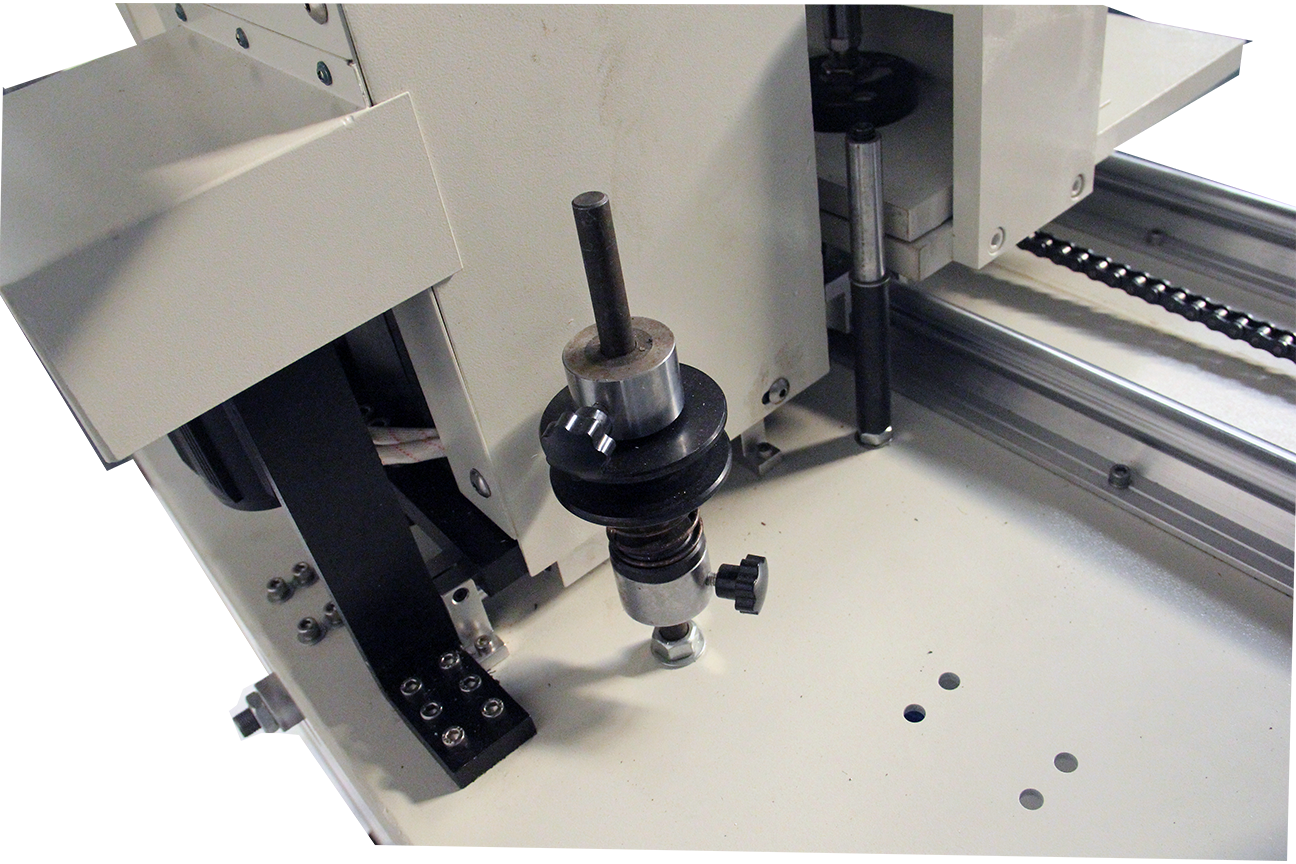

ALLOY KNIFE ROUND CUTTING

Imported Alloy knife make sure the album edge smooth after cutting 64

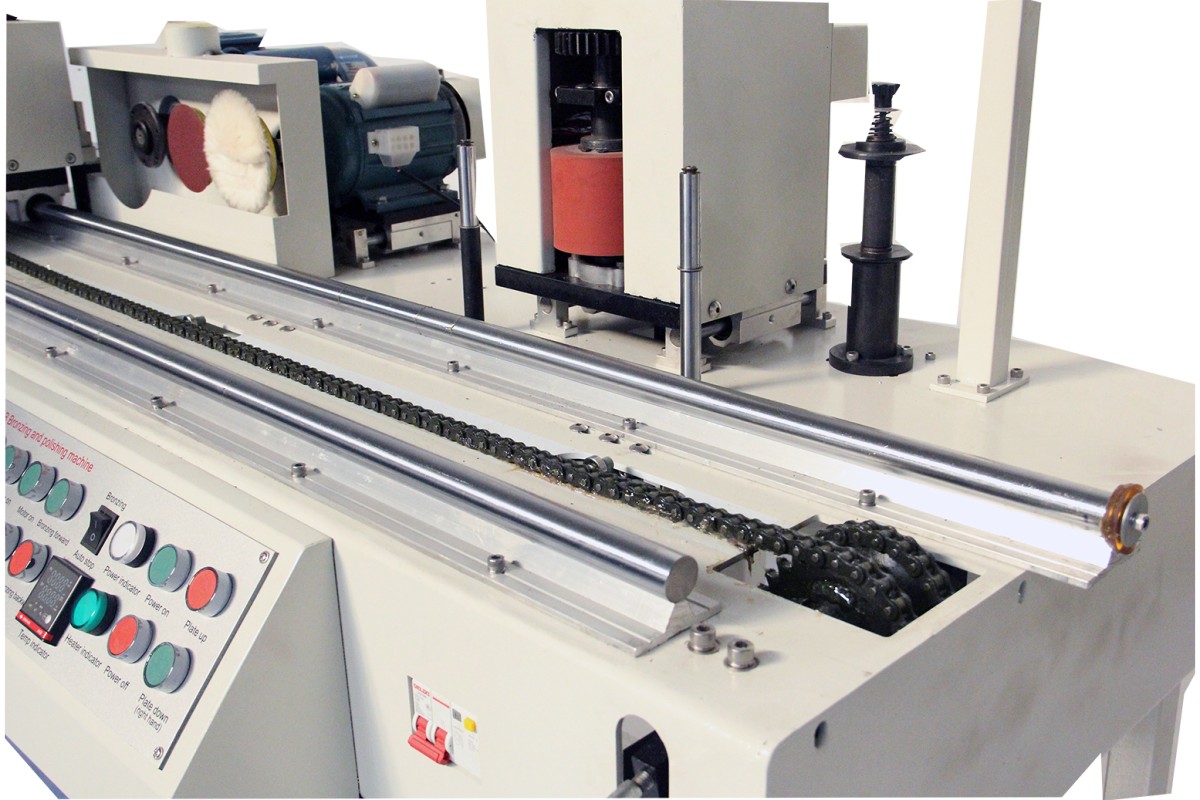

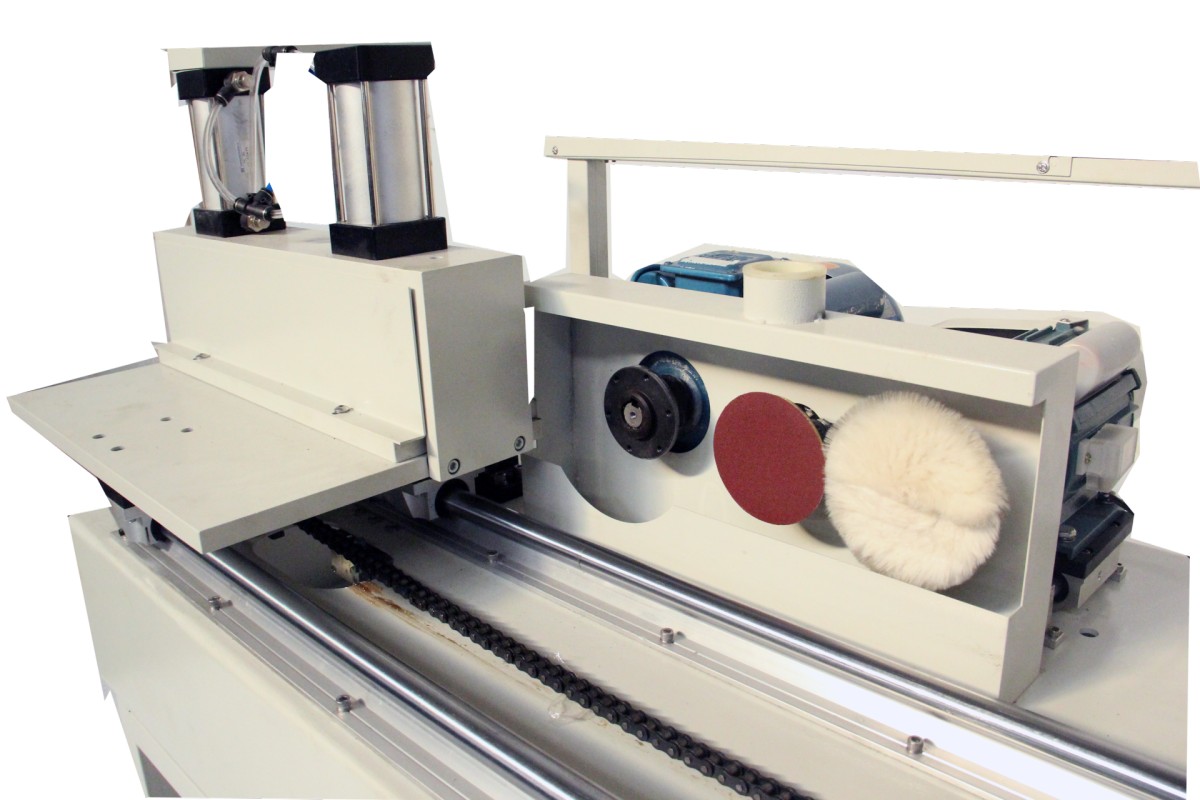

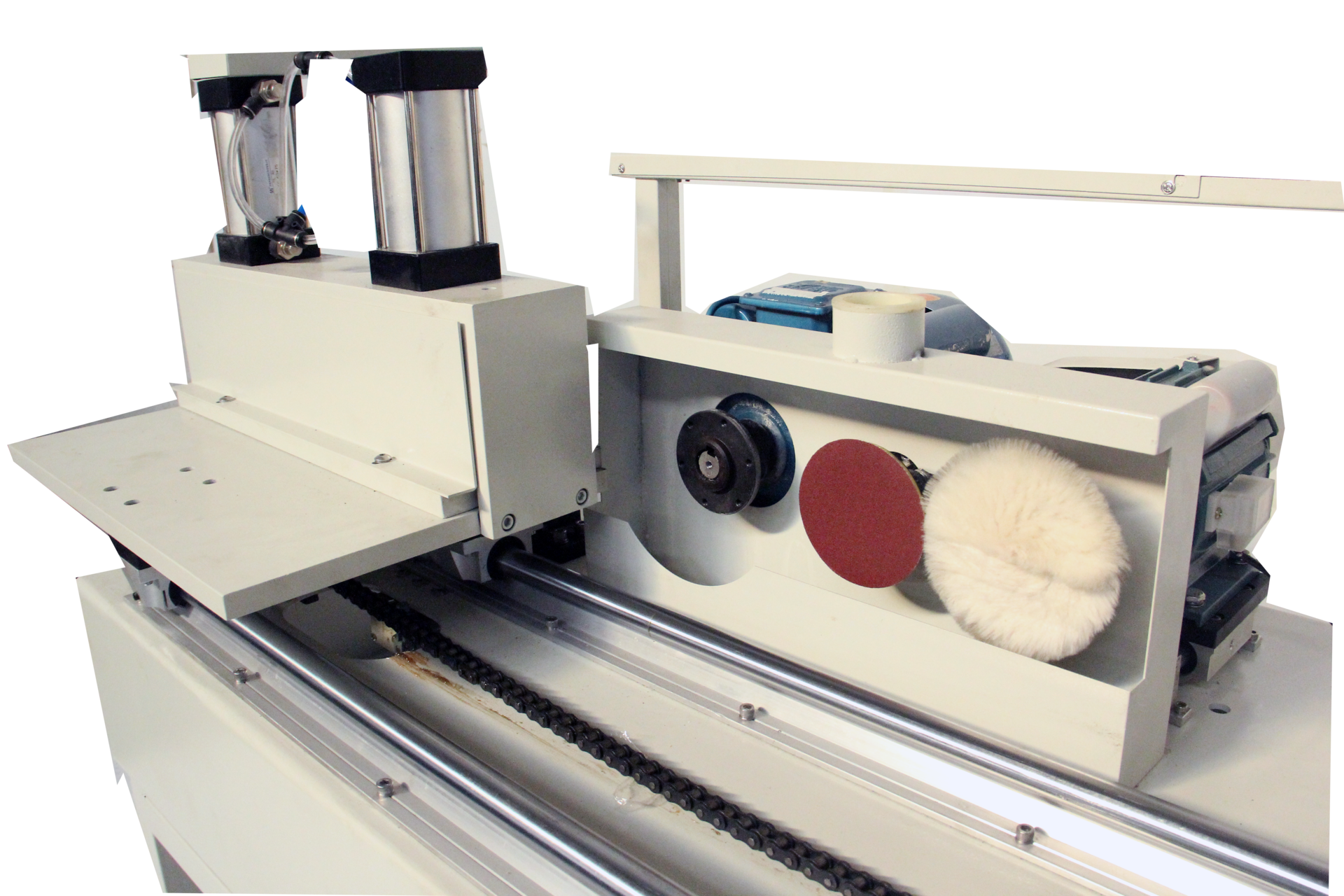

POL ISHING AND DUST COLLECTION

Polishing and dust collection before gilding,make sure the album edge surface smooth and without dust 59

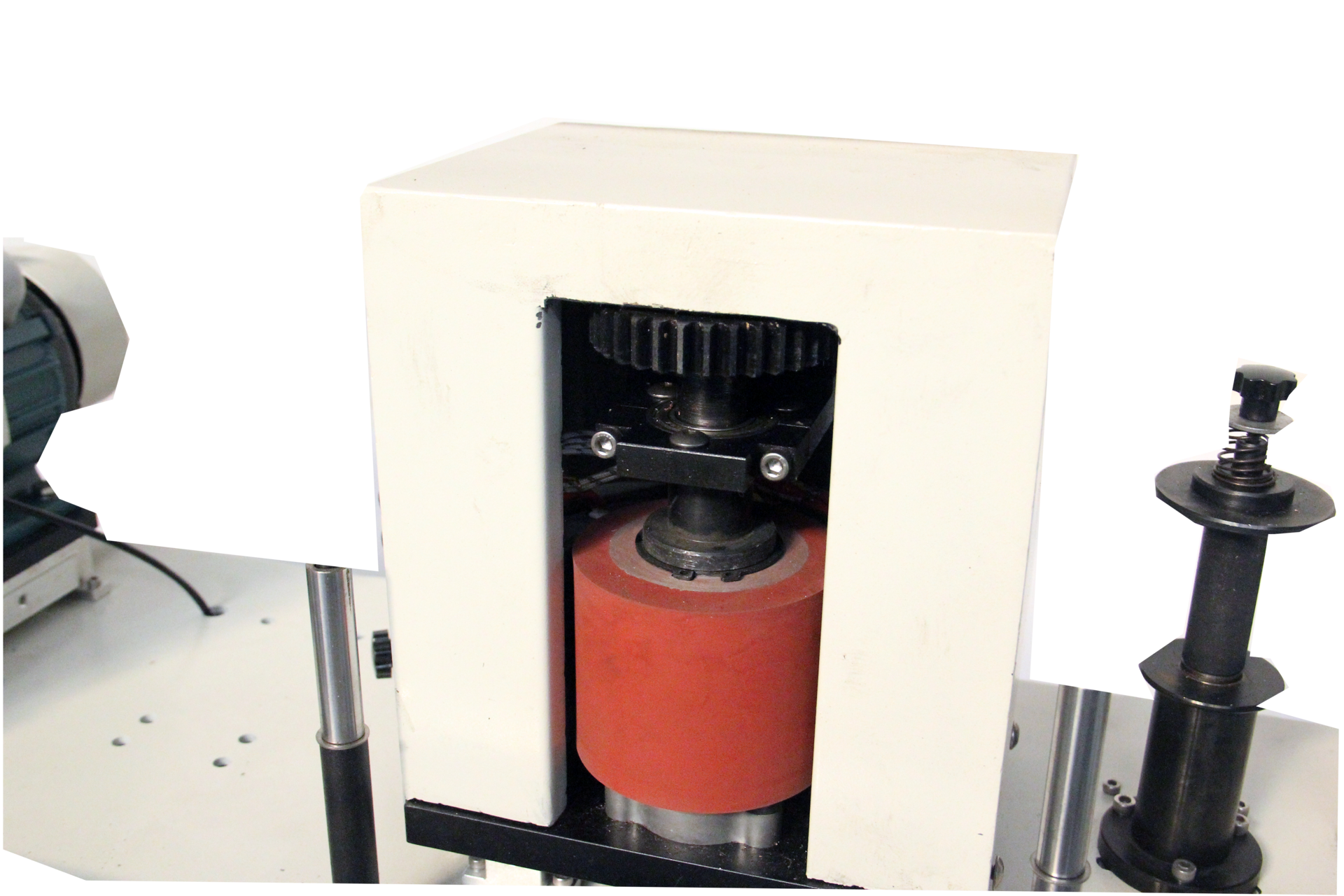

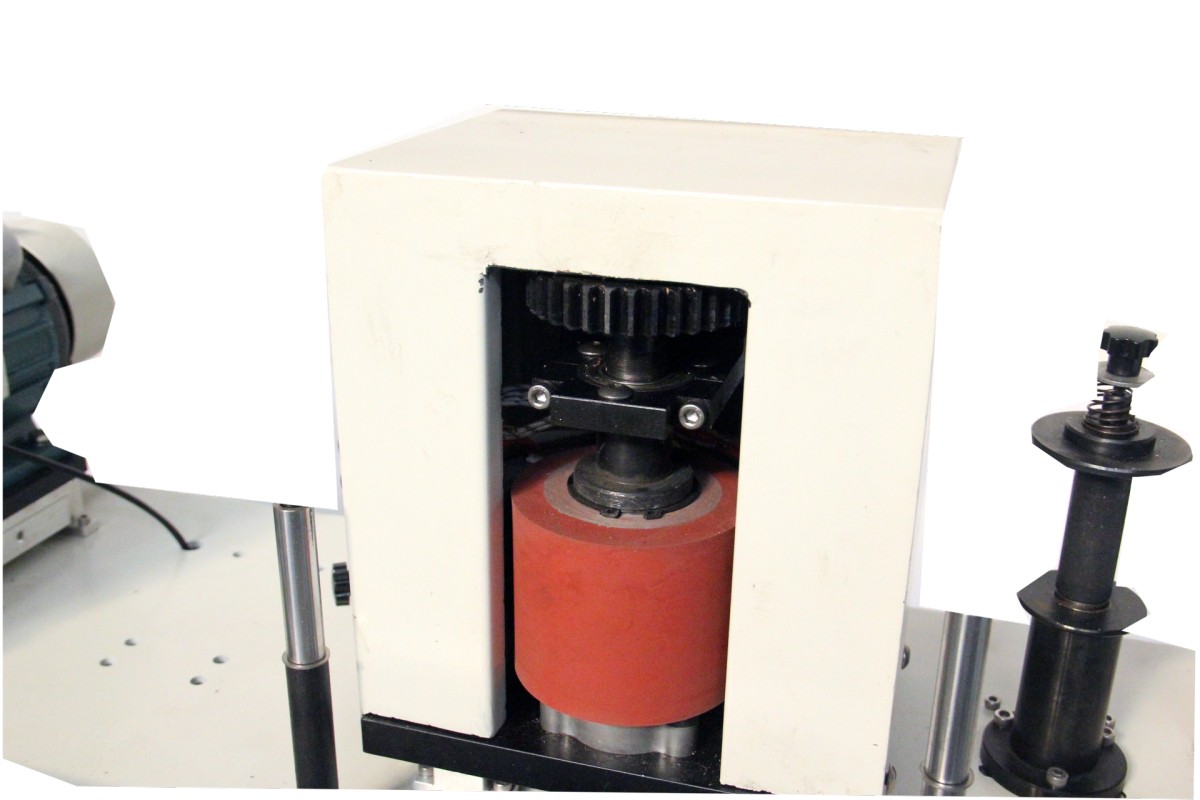

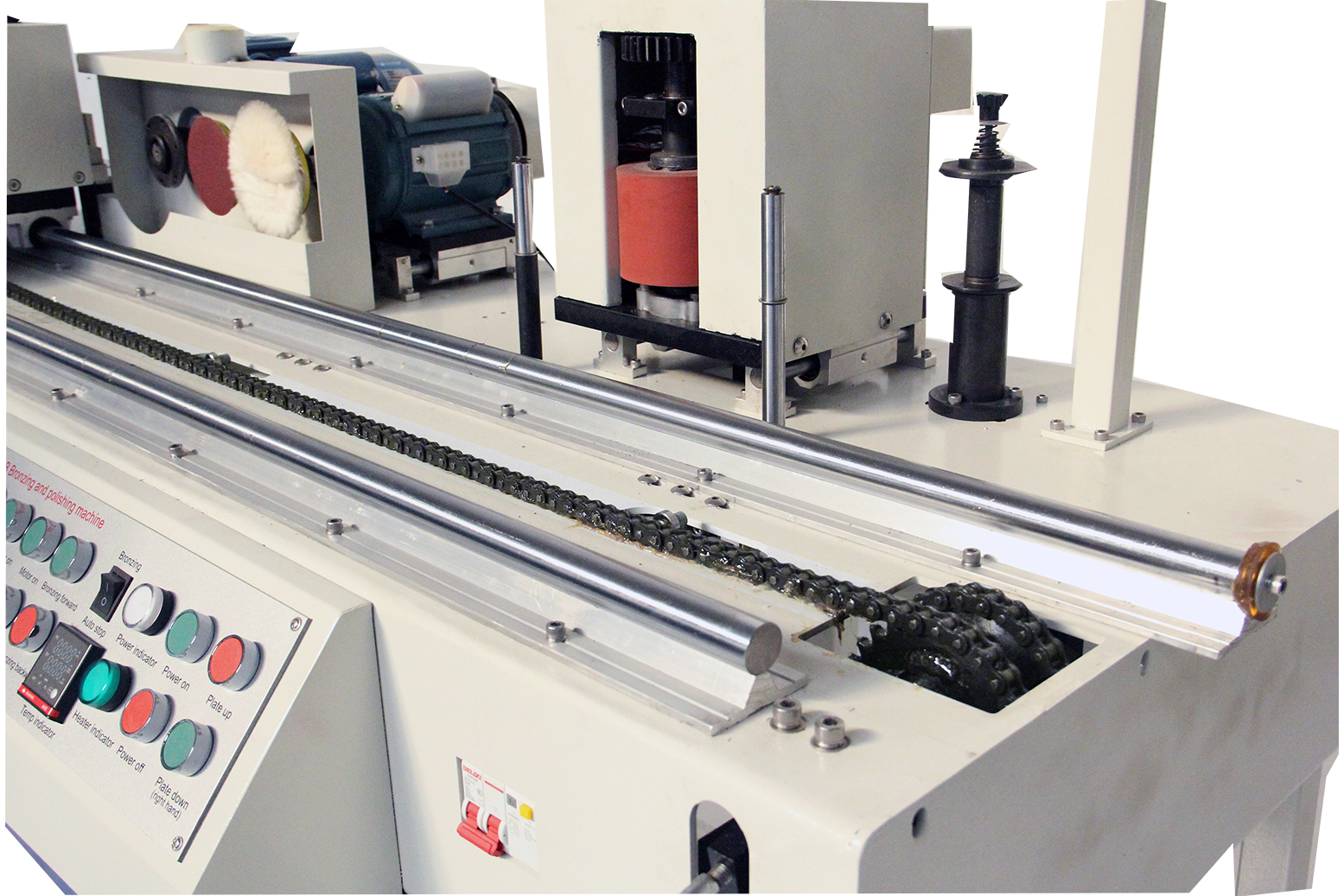

RUBBER ROLLER AND HEATING PLATES

High quality rubber roller to ensure the transterring clearly with strong effect 58


REWINDING SYSTEM

 Polishing and dust collection before gilding,make sure the album edge surface smooth and without dust 59

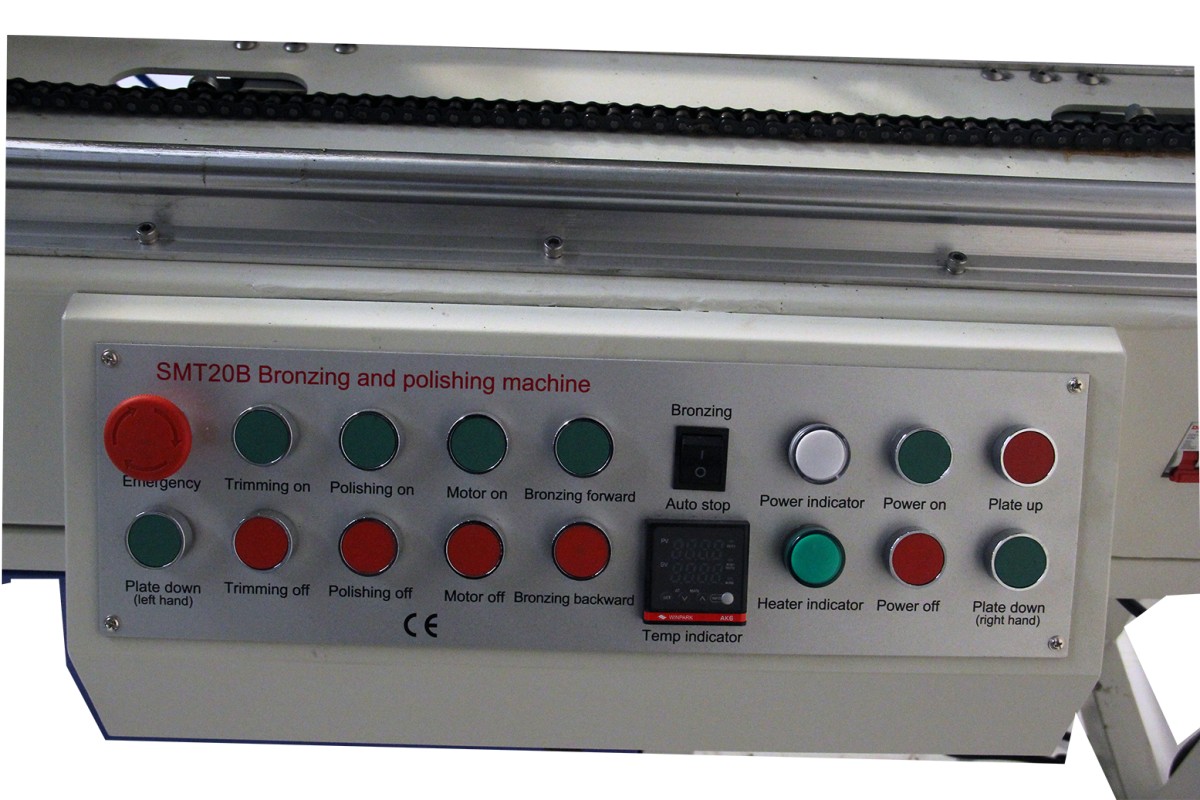

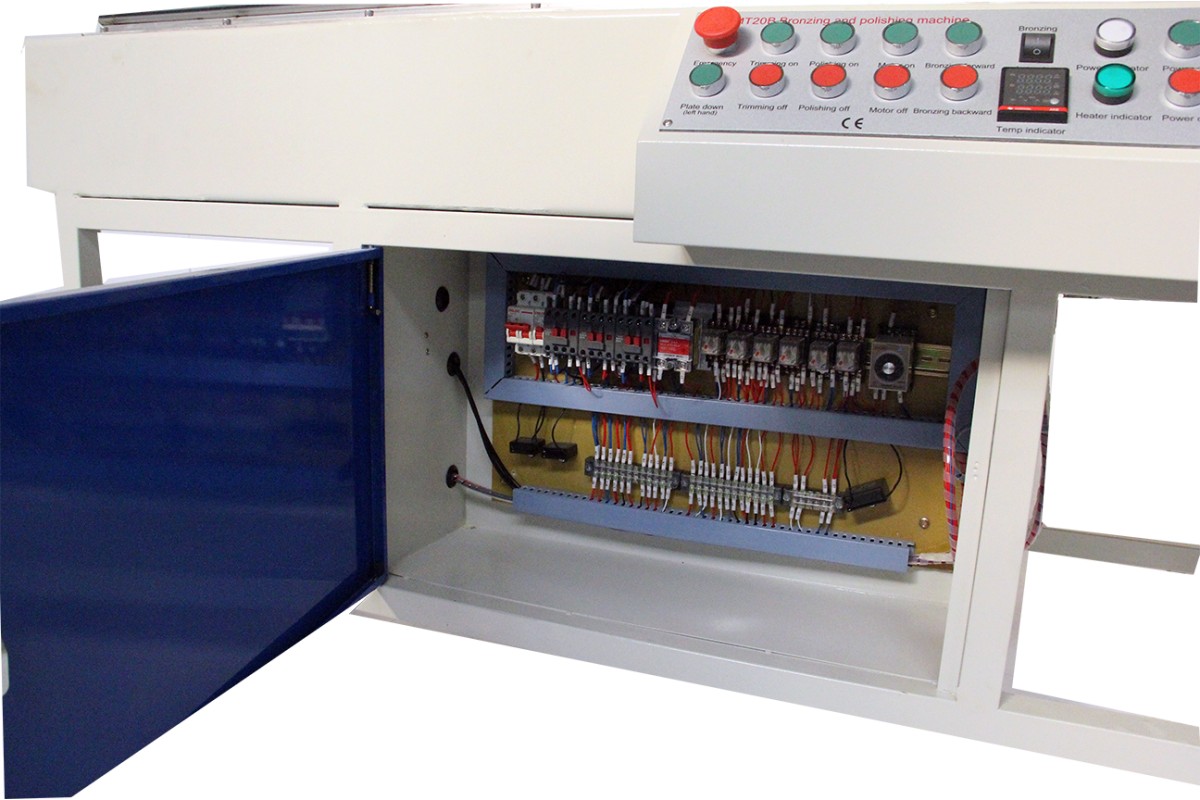

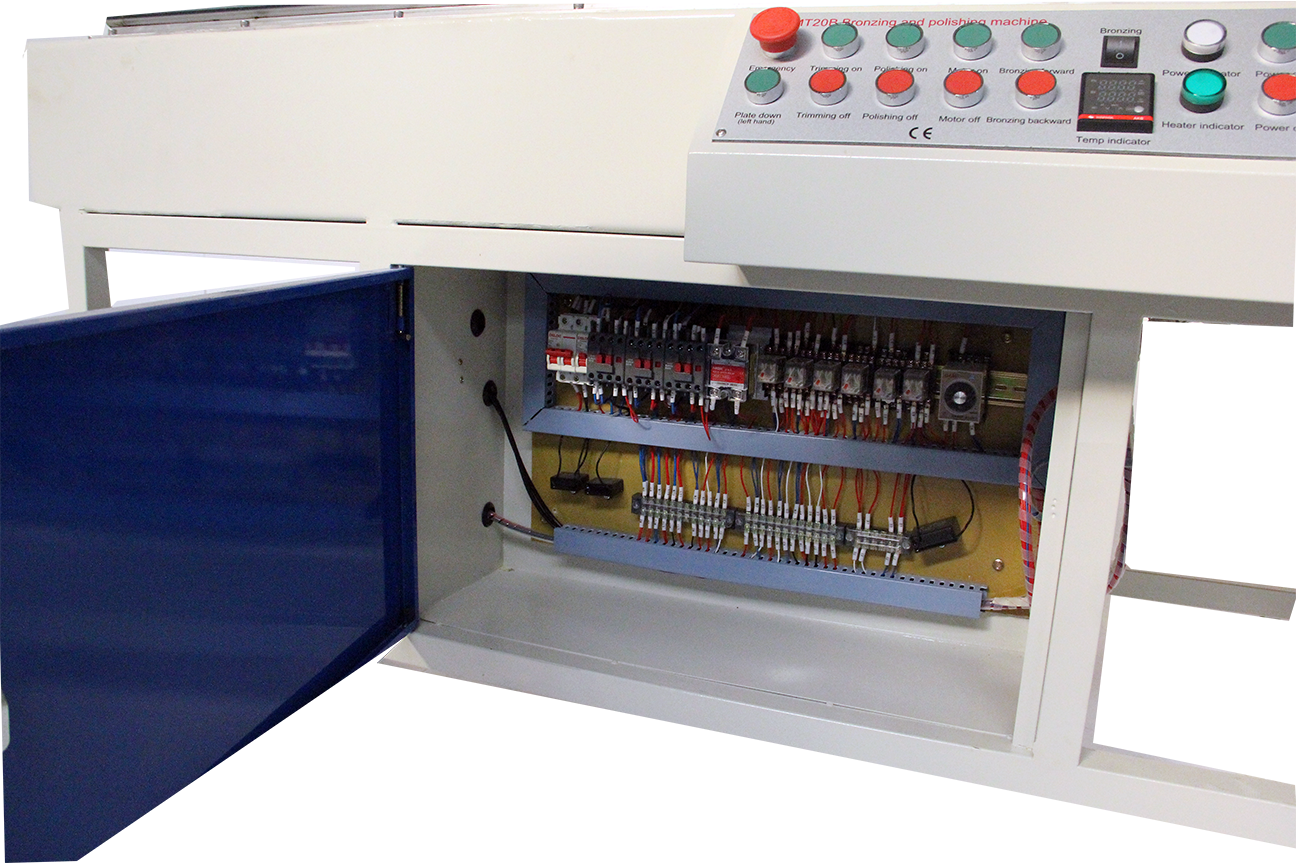

TEMP CONTROL SYSTEM

automatic temperature control system,temperature changeable and suitable for difference kinds of Gilding tape 56


CE STANDARD

 High quality rubber roller to ensure the transferring clearly with strong effect 58


图层 022.png

图层 1222@0.25x.png

图层 220.png

图层 2121@0.25x.png

图层 221@0.3x.png

图层 1@0.3x.png








Application

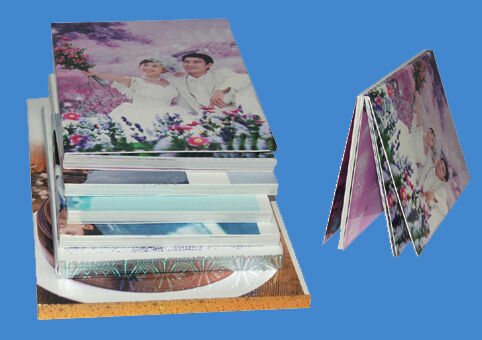

With higher power, especailly Designed for Photo album which include glued sheets, and some time glued sheets of material plastic, the machine adop free speed function to avoid the hard to the plastic.

Beside basic polishing and gilding functions, it include function of sanding and dust collecting, the working environment is more clean and the final gilding effect is more smooth.

The max Album thickness can up to 7cm.




bronzing machine effect.jpg


Consumable Supply

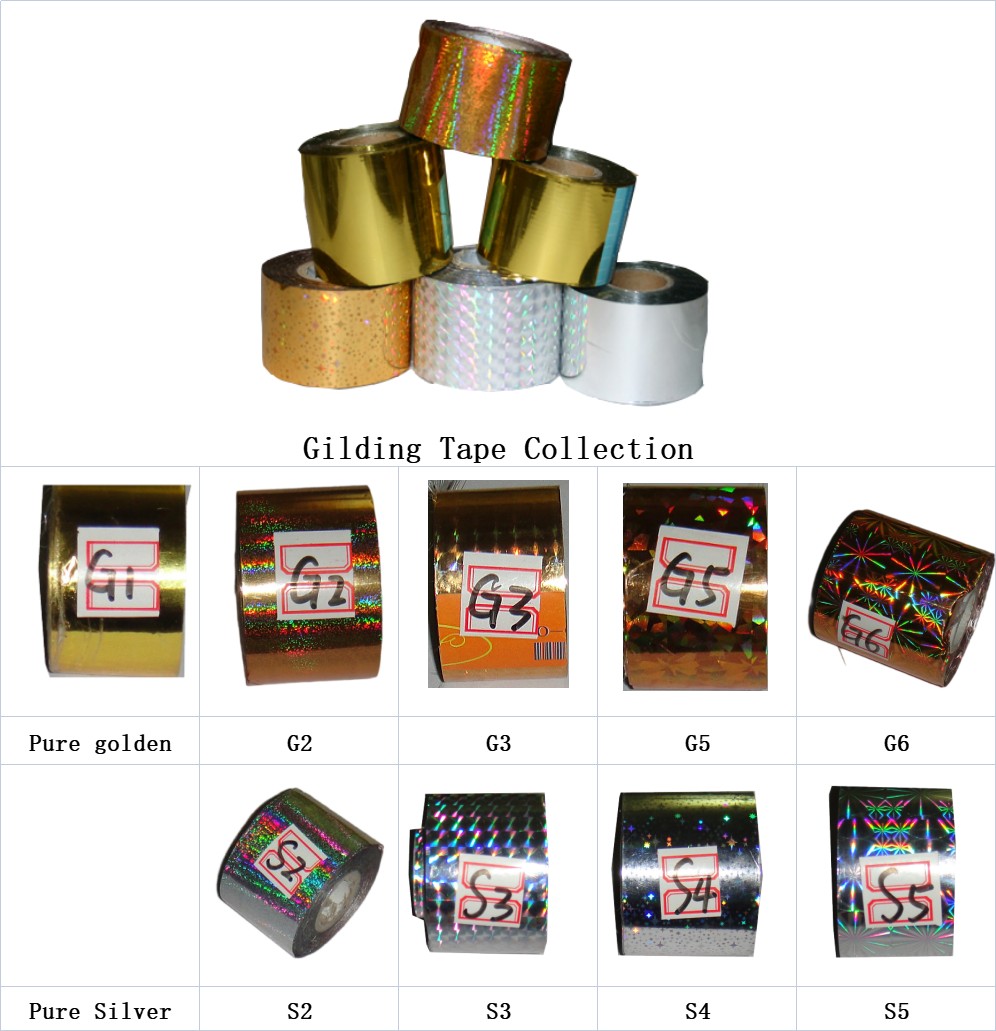

Gilding tape collection.png
