Double Roller Gluing Machine with Side Glue TC60A4
TC60A4 is designed with the side gluing function. Apart from, from the perspective of gluing system, it has been upgraded into double glue roller system with side glue system, make the product you bind more firmly bonded with a longer service life.

Its binding capacity is good which reaches 65mm thick books for A4 size.
Its velocity can reach 200-300 books per hour.

Other additional functions like Self-adaptive Thickness of Book Clamp Plate, Thickness Measurement Speed Adjustment, Auto anti-creasing, and etc. Assure you of more convenient operation.
Book Size: A4
Book Thickness: 65mm
Speed (books/hour ):200-300 books/h
Roller Quantity: Double glue roller with side glue
Machine Size:1340*580*970mm
Net Weight:200 Kg
Speed Adjustment: Automatically Thickness-accorded
Auto anti-creasing: Auto anti-creasing
Temperature Control of Rollers: Independent control

Request A Quote

INQUIRY
WhatsAPP

Related Products

Product Description


Economic Single Roller Gluing Machine

Standard Single Roller Gluing Machine

Double Roller Gluing Machine with Side Glue

Three Roller Gluing Machine with Side Glue

Automatic Gluing Machine with Side Glue

Model No.

TT100

TT300

T60A4

T60A3

TC60A4

TC60A3

ST60CA3

S10000

Book Length（mm）

310

310

330

425

330

425

425

320

Book Thicness(mm)

58

58

65

65

65

65

65

58

Speed (booksNohour )

200-300 books/h

200-300 books/h

200-300 books/h

200-300 books/h

200-300 books/h

300-400 books/h

300-400 books/h

300-450 books/h

Glue Melting Time

30 minutes

30 minutes

30 minutes

30 minutes

35 minutes

35 minutes

40 minutes

30 minutes

Milling Cutter

10-teeth

10-teeth

21-teeth

21-teeth

21-teeth

21-teeth

21-teeth

High-speed Milling cutter

Clamping Method

No

No

No

No

Auto anti-creasing

Auto anti-creasing

Auto anti-creasing

Auto anti-creasing

Display Method

7 inch touch screen

7 inch touch screen

7 inch touch screen

7 inch touch screen

7 inch touch screen

7 inch touch screen

7 inch touch screen

7 inch touch screen

Binding Method

Dual operationfast + normal model

Dual operationfast + normal model

Dual operationfast + normal model

Dual operationfast + normal model

Dual operationfast + normal model

Dual operationfast + normal model

Dual operationfast + normal model

Dual operationfast + normal model

Roller Quantity

Single roller

Single roller

Single roller

Single roller

Double rollers

Double rollers

Three rollers

Two rollers

Side Gluing

No

Yes

No

No

Yes

Yes

Yes

Yes

Convert Frequency

No

No

No

No

Yes

Yes

Yes

Yes

Replenishing Glue

No

No

Yes

Yes

Yes

Yes

Yes

Yes

Rollers Independent Temperature Control

No

No

No

No

Yes

Yes

Yes

Yes

Roller Height Adjust

No

No

No

No

Yes

Yes

Yes

Yes

Self-adaptive thickness of book clamp plate

No

No

No

No

Yes

Yes

Yes

No

Power parameters

220V/50Hz(60Hz)/1500W

220V/50Hz(60Hz)/1800W

220V/50Hz(60Hz)/2600W

220V/50Hz(60Hz)/2600W

220V/50Hz(60Hz)/2600W

220V/50Hz(60Hz)/2600W

220V/50Hz(60Hz)/2600W


Machine size (mm)

1180*500*950

1300*500*950

1240*540*980

1560*570*1070

1340*580*970

1550*580*970

1660*560*970

1990*1700*1085

Net weight

150 kg

190 kg

200 kg

220 kg

200 kg

230 kg

260 kg

260kg


Main Characteristics

  • Max binding length reaches 425/310mm

  • 65mm super thickness binding is available

  • Two rollers design ensure high binding quality

  • 7 inches touch screen design

  • We own more than 20 patent for book binding machine

  • All products acquire the CE Certificate, ISO Certificate.

  • The special frequency converter for automatic speed adjustment.

  • Series of accessories, consumables and ready-made product on sale, on-stop service provided.

  • Online service for installation, operation, maintenance service by video talk, solving your problem more efficient.


Accessories and Advantage

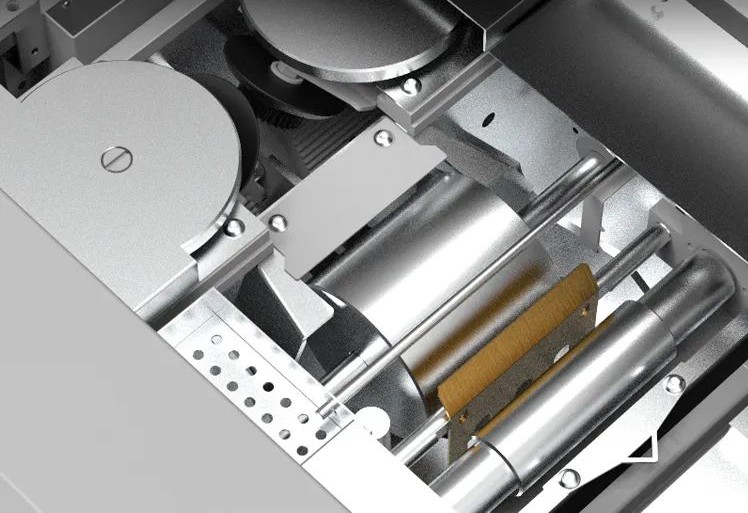

  • Auto side glue design

Three glue rollers design gluing on the book more even and  side gluing makes book more firmly.


  • AI Frequency Technology

Improve binding speed and accuracy, heighten the binding quality further.


  • Ultra-high-power milling cutter motor

use 1000w milling cutter motor, with 21-tooth sun cutter for better milling effect, evenly distributed tool slots, and firmer glue binding

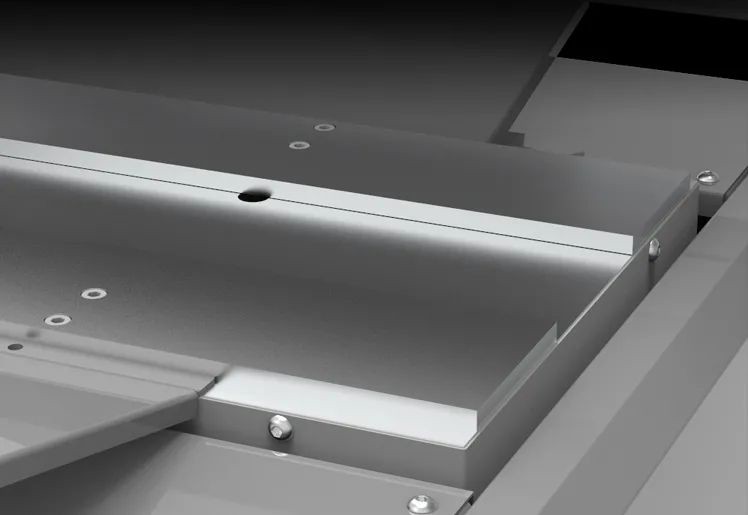

  • 9mm thickened clamp plate

Thickened clamping plate, not easy to deform, long service life, better clamping effect


  • Segmented temperature control

Intelligent segmented temperature control, prevents the glue from aging and yellowing, and prolongs the service life of the glue


  • Pre-melting groove design

Adding glue without stopping, significantly improving efficiency.









Application

Start binding premium soft cover books, novels, Albums, manuals, and more, on-demand with the perfect binder with side gluing. Inexpensive to operate, this binder can be used for short runs with just a couple of books or large jobs with thousands of books. No matter You are running a print shop, in-plant printer, on-demand printer, or bindery can help you reach new levels of efficiency and convenience with the perfect binding machine.
