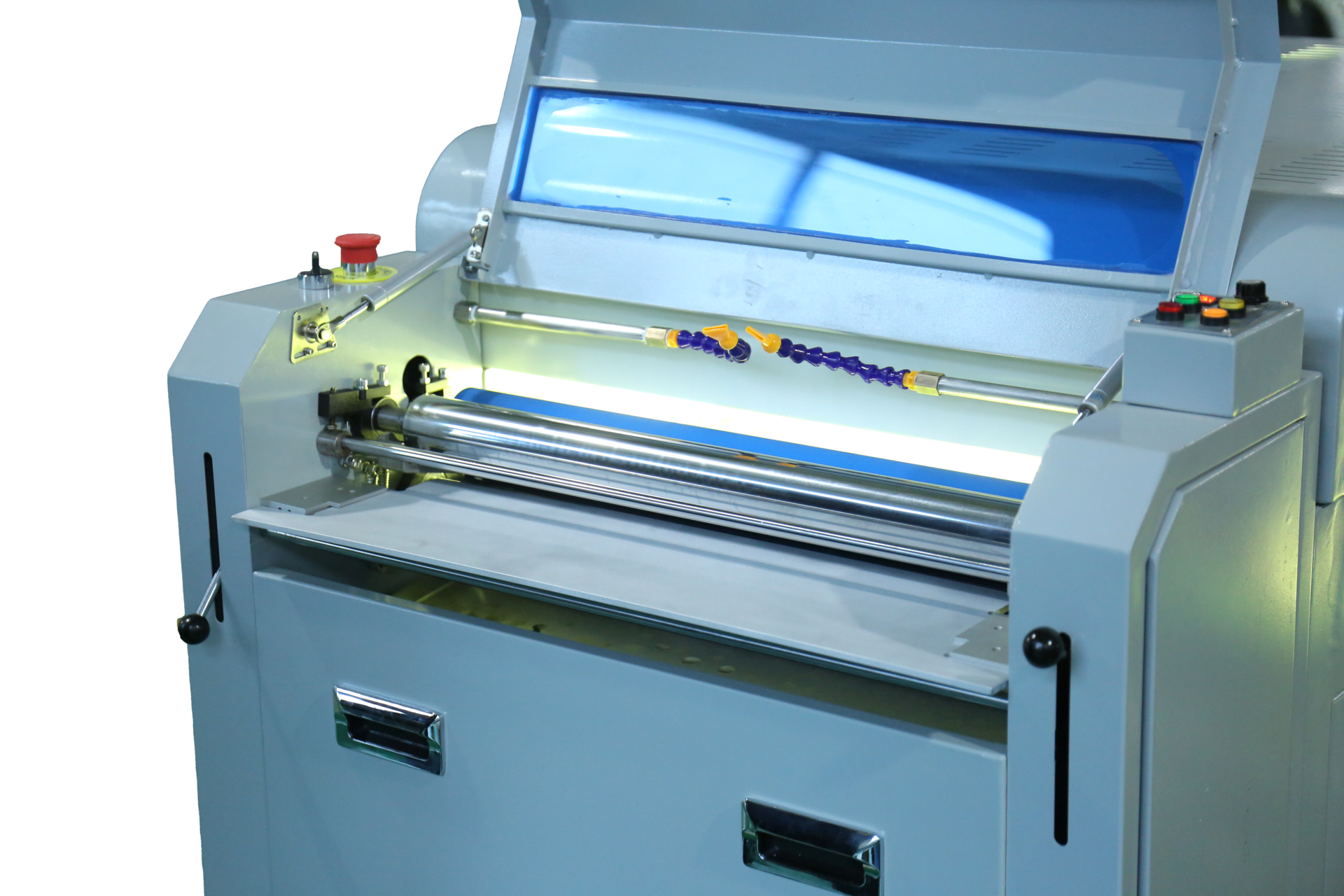

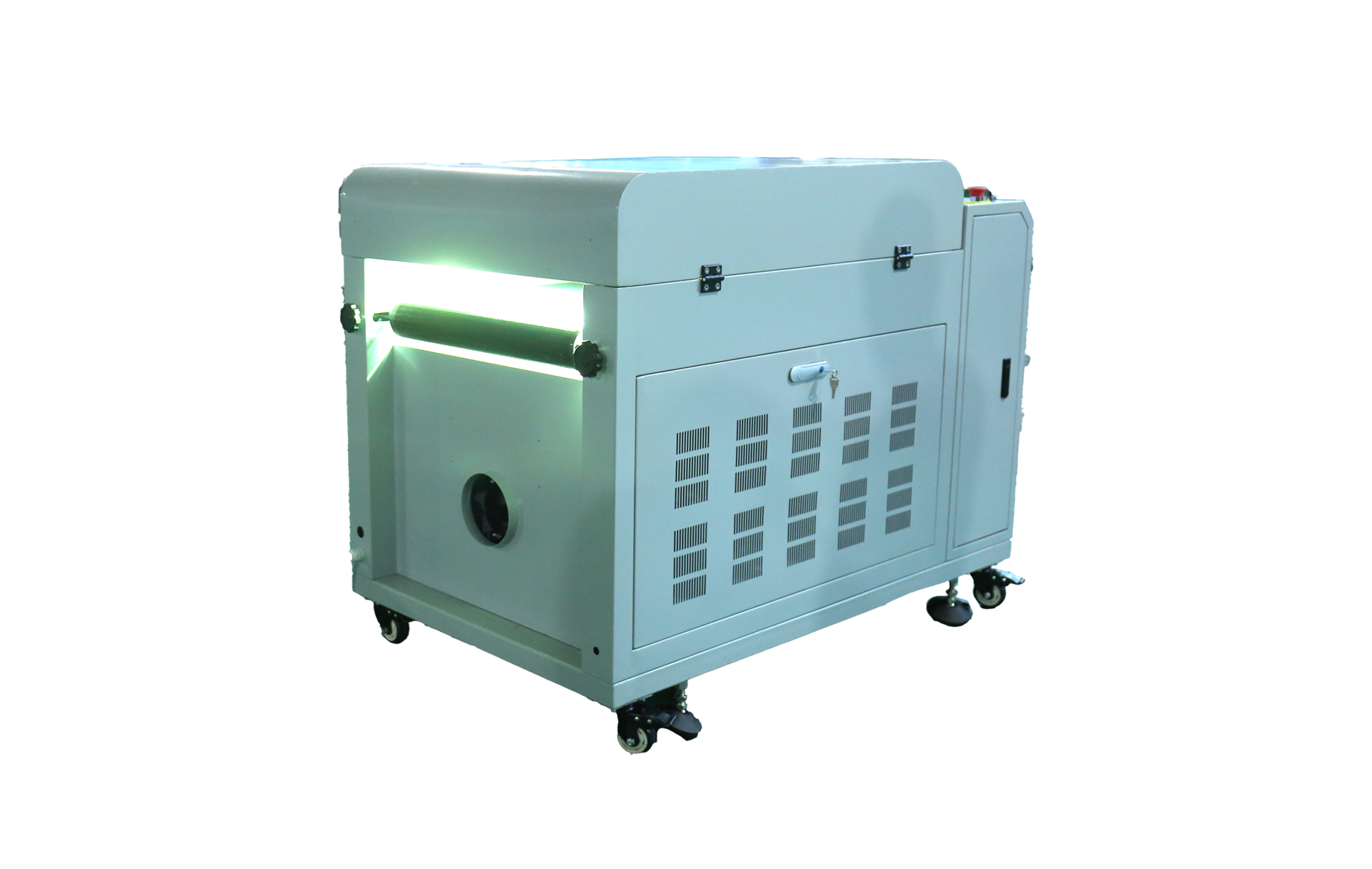

PRO UV Coater 20(500mm)
PRO UV Coater Series is a most advanced technology for UV coating machine solutions.It adopts the most sophistic structure engineering, and best Electricity stability.
UV and IR together used in one machine

Specification:
Max Width: 24" (650mm)
Min Thickness: 150g
Max Thickness: 600g
Speed: 0-30m/min
Curing Way: UV
Feeding Way: manual
Effect: Glossy/Matt
Corona: Optional
Power: 3500w
Weight: 350kg
Dimension: 112*200*132cm
Key Point: Pro type, Universal size

Request A Quote

INQUIRY

Product Description

PRO 500 UV COATER MACHINE




Main Characteristics

◆ High-precision double-sheet detection, if two sheets are fed, it will automatically stop.

◆ The feeder connect with coater,each unit,feeder,corona,coater,stacker can be together or seperated.

◆ The UV lamp can be adjusted from 0 to 6000 watts, with adjustable power and stepless adjustment.

◆ If the paper can not come out within a limited time, the machine will automatically alarm, and then stop to avoid accidents

◆ The fastest speed is 25 meters, and the stable work is 20 meters.

◆ Aim for Dedicated high end market with close design and easy operation.


Product Description


 PRO UV Coater 20"  (500mm)PRO AQ Primer Coater 20"(500mm)PRO UVCCoater 20"(500mm)

PRO AQC Primer Coater

 20"(500mm)

 Auto PRO UV

 Coater 20"(500mm)

Auto PRO AQPrimer

Coater20"(500mm)

Max Coating Width20"  (500mm)20"  (500mm)20"  (500mm)20"(500mm)20"(500mm)20"(500mm)
Min Material Thickness70g70g70g70g70g70g
Max Material Thickness600g600g600g600g600g600g
Speed0-30m/min0-30m/min0-30m/min0-30m/min0-30m/min0-30m/min
Curing WayUV LampIR LampUV LampIR LampUV LampIR Lamp
Feeding Waymanualmanualmanualmanualautoauto
Glossy/MattGlossy/Matt
Glossy/Matt
Glossy/Matt
Feederoptionaloptionaloptionaloptionalyesyes
Stackeroptionaloptionaloptionaloptionalyesyes
Coronaoptionaloptionalyesyesoptionaloptional
Lamp No.1 piece1 piece1 piece1 piece1 piece1 piece
Power3500w3500w8500w8500w4200w4200w
Weight(With Package)350kg350kg350kg350kg580kg580kg
Dimension(With Package)112*200*132cm112*200*132cm112*200*132cm112*200*132cm

112*200*132cm10

7*140*132cm

112*200*132cm10

7*140*132cm

 Key Point Pro type,Universal size

Pro type,Primercoating

,base coating,IR drying

Pro type, withCorona, fortoner print,Pro type, withCorona, beforeprinting

Pro type, UVcurin

g,Automatic

Pro type, IR curing

, Automatic










Application

UV Coating is the most effective process you can apply to post-printed materials, allowing you to coat and cure right at the press. Applying an ultra-violet coating on printed pieces sustains their longevity against fading and yellowing that occurs as a result of sun damage. Even the varnish qualities of a UV coat itself can add to the durability of printed material, reducing tearing and increasing resistance to folding and creasing that can damage expensive marketing or promotional material. Plus the coating actually improves the appearance of the print as well. The glossy or matte finish of a UV finish enhances colors in the print, making colors brighter while making dark tones and blacks bolder and richer. Discover the quality advantages of UV Coating today with these awesome machines.



Main Characteristics

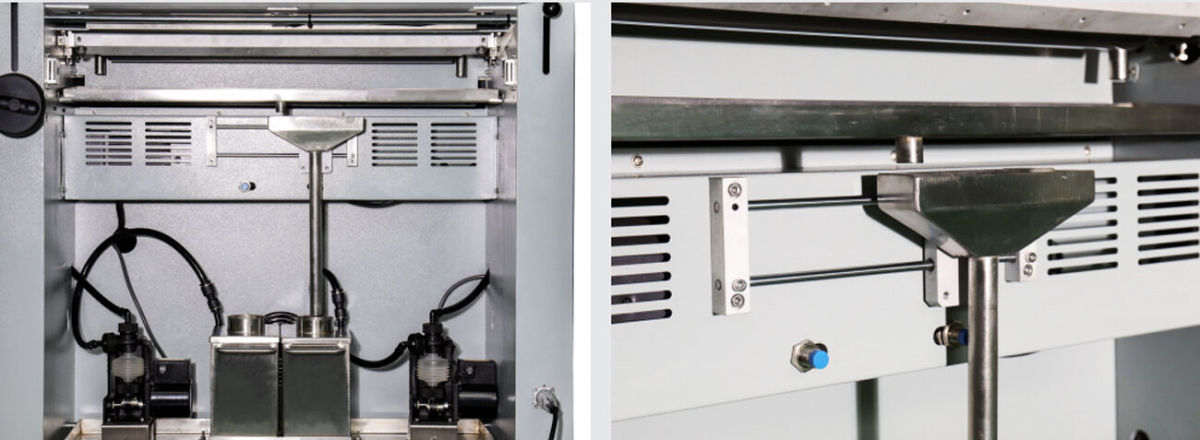

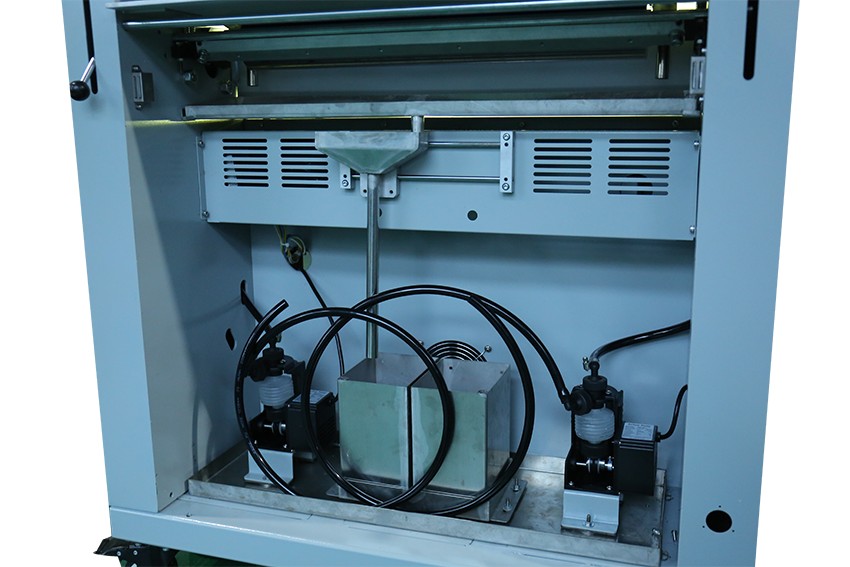

◆ The machine is free of cleaning, and can supplementing the uv liquid automatically

◆ The device of powering off automatically when the temperature is too high, the operation is safe

◆ The drying speed is very fast

◆ The finished print can be of high rigidity and high glossy or matt

◆ The chain wheel on the equipment can realize operating at different locations. The conveyor belt is of high quality

◆ Using superior lamp, lamp room which exert heat forcefully to prolong the life span by the heat

◆ The coat is low about 0.2-1yuan, and the thickness of UV can be changeable

◆ High-precision double-sheet detection, if two sheets are fed, it will automatically stop;

◆ The feeder connect with coater , each unit, feeder, corona, coater, stacker can be together or seperated

◆ The UV lamp can be adjusted from 0 to 6000 watts, with adjustable power and stepless adjustment

◆ If the paper can not come out within a limited time, the machine will automatically alarm, and then stop to avoid accidents

◆ The fastest speed is 25 meters, and the stable work is 20 meters.

◆ Aim for Dedicated high end market with close design and easy operation


Accessories and Advantage

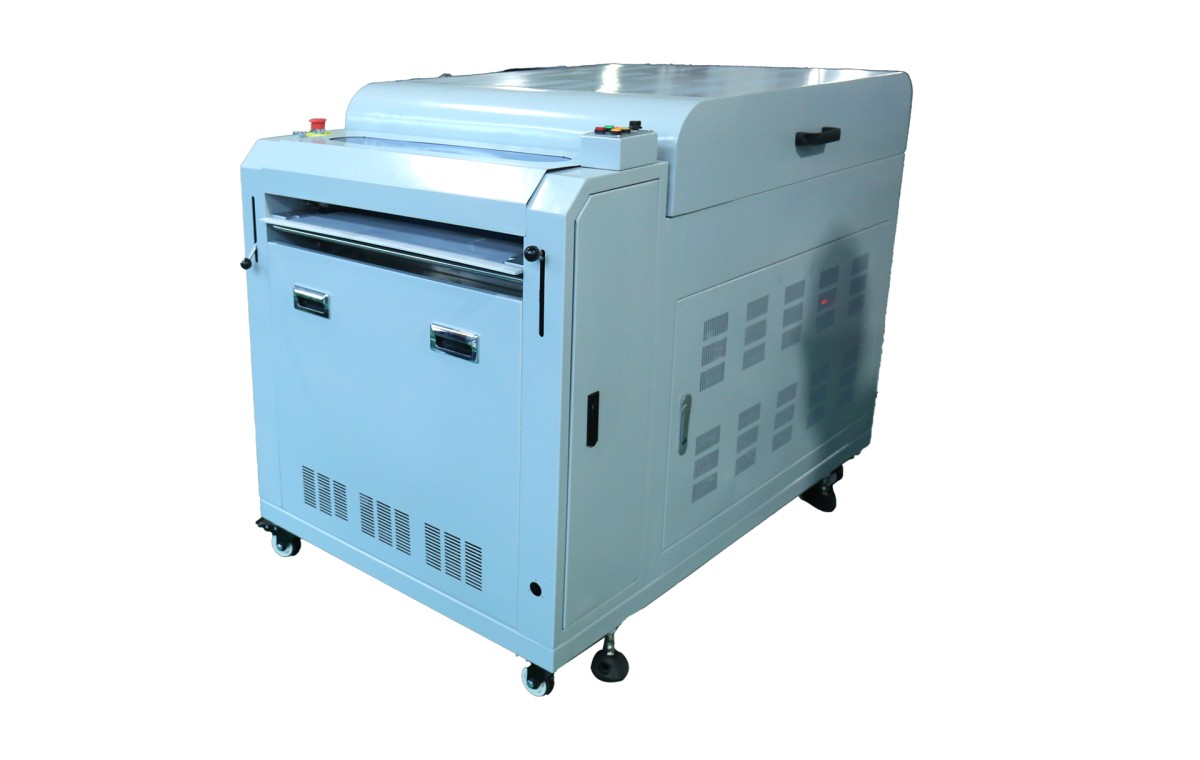

650 PRO UVC Coater  (2).png

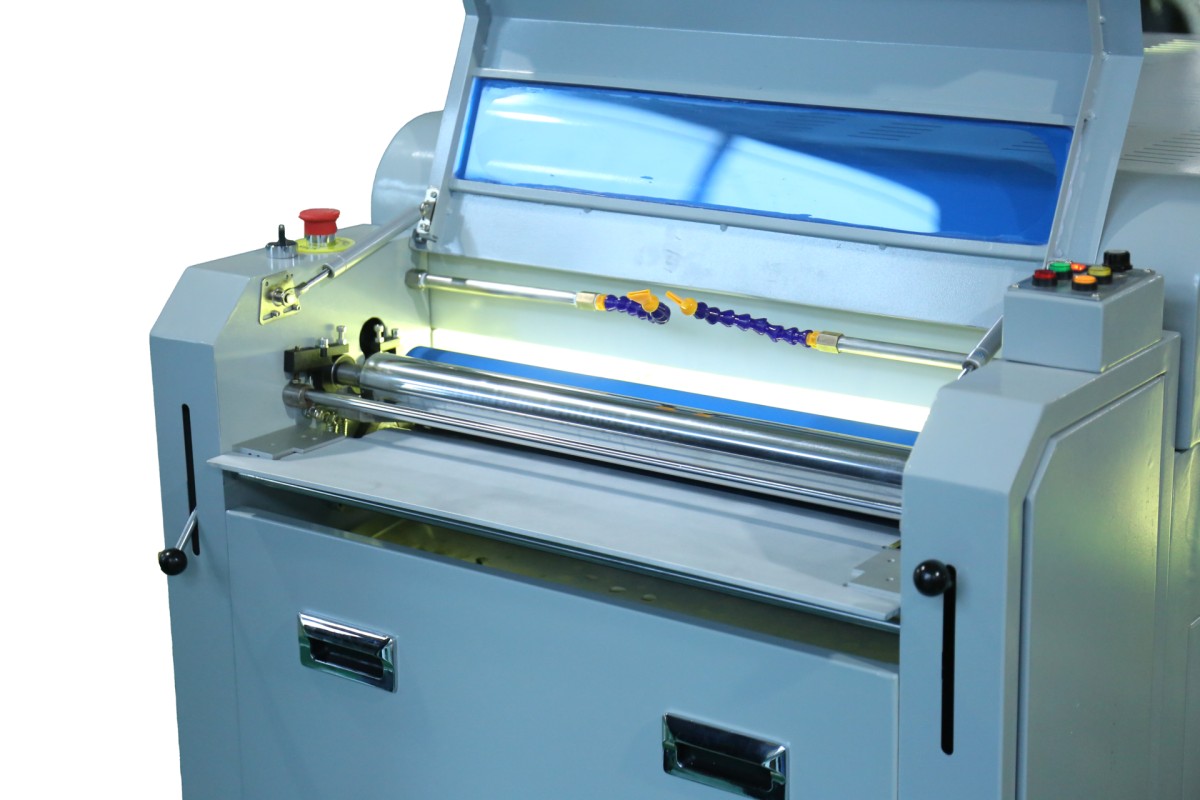

650 PRO UVC Coater  (13).png

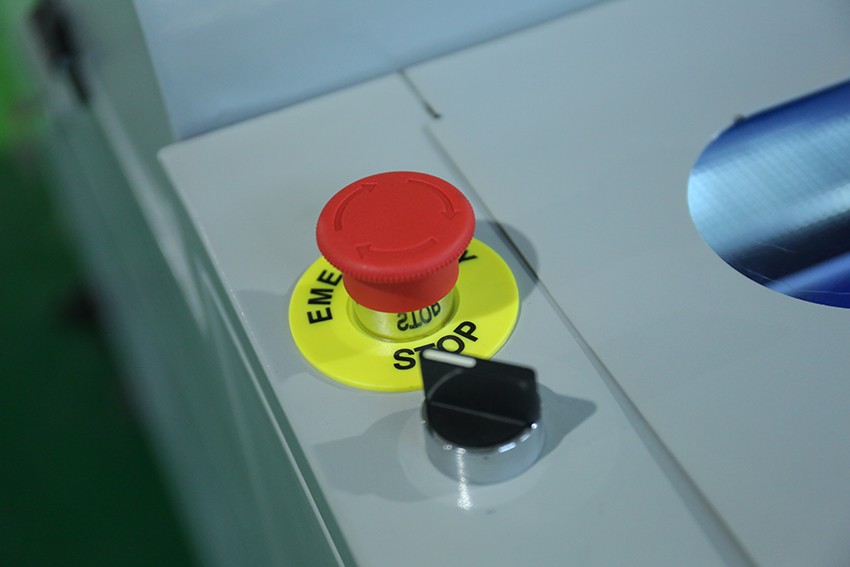

650 PRO UVC Coater  (6).png

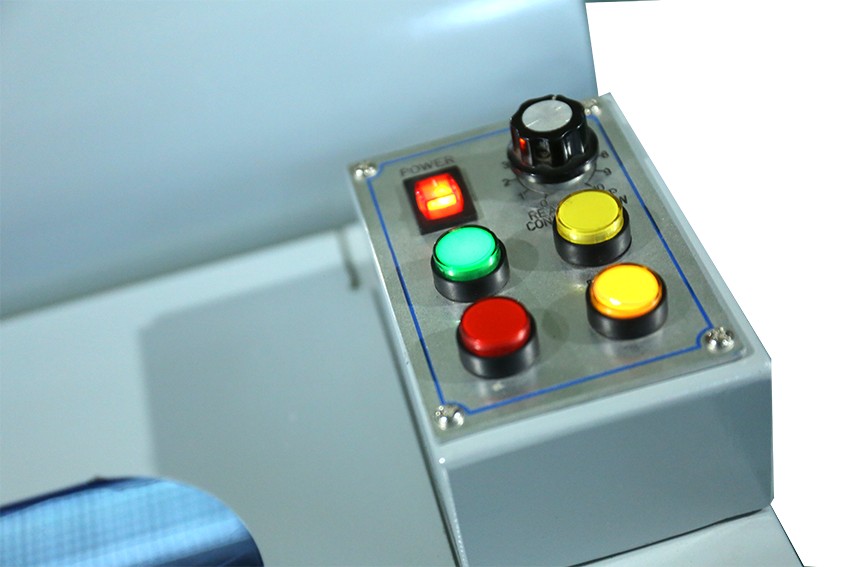

650 PRO UVC Coater  (7).png

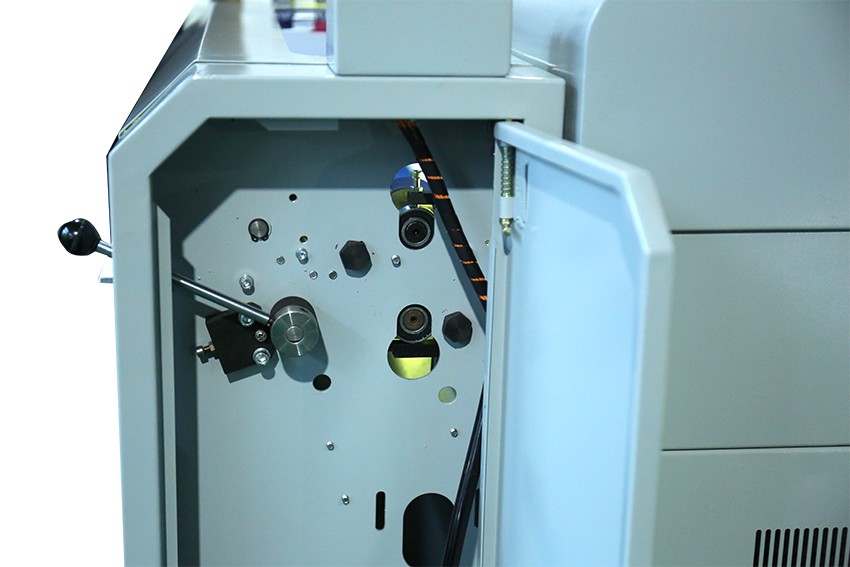

650 PRO UVC Coater  (10).png

650 PRO UVC Coater  (8).png

650 PRO UVC Coater  (5).png

650 PRO UVC Coater  (11).png


Application

UV Coating is the most effective process you can apply to post-printed materials, allowing you to coat and cure right at the press. Applying an ultra-violet coating on printed pieces sustains their longevity against fading and yellowing that occurs as a result of sun damage. Even the varnish qualities of a UV coat itself can add to the durability of printed material, reducing tearing and increasing resistance to folding and creasing that can damage expensive marketing or promotional material. Plus the coating actually improves the appearance of the print as well. The glossy or matte finish of a UV finish enhances colors in the print, making colors brighter while making dark tones and blacks bolder and richer. Discover the quality advantages of UV Coating today with these awesome machines.
